Laird Technologies PA24-19
US$39.82
- SKU: PA24-19
- Manufacturer: Laird Technologies
- Data Sheet: Download
Product Information

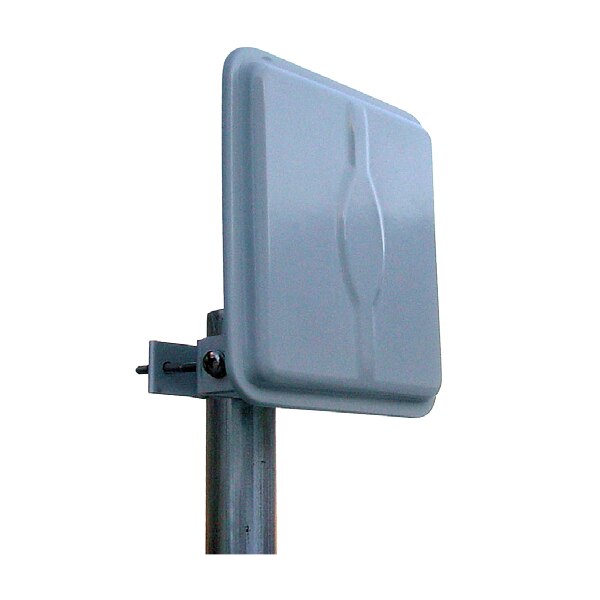

Laird Technologies PA24-19
2.4GHz 19db Flat Panel Directional Antenna
The 2.4 GHz flat panel directional antennas by Laird offer high gain in a thin low profile package. The antennas are constructed of a gray color UV resistant ABS plastic radome with an aluminum backplate. The antenna can be used in horizontal or vertical polarization. The die cast aluminum or galvanized steel bracket affords +/ 45 deg up or down tilt adjustment and the stainless steel hardware assures a long service life. The PA2413 and PA2419 antenna can be surface mounted or pole mounted. The PA2416 is pole mounted only. All antennas comes with an integral N female connector standard.
Specifications
Specifications PA24-19
Frequency range | 2400 - 2483 MHz |
Gain | 19 dBi |
3dB beamwidth (H & V) | 17.5° |
Front to back | 30 dB |
Cross polarization | -20 dB |
VSWR | 1.5:1 |
Impedance | 50 ohm |
Input power | 100 watts |
Operating temperature | -40° to +70°C |
Pole size | 1 to 2 in (25 to 50 mm) |
Weight | 60 oz (1.7 kg) |
Dimension (dia x depth) | 15.30 x 14.60 x 0.80 in |
Bracket tilt | 45° |
