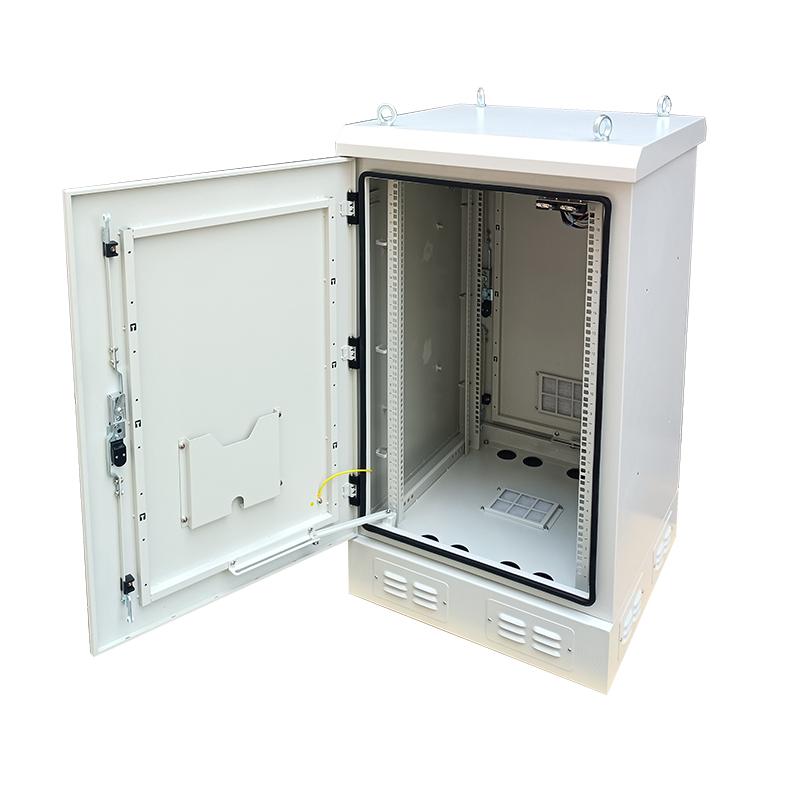

LightSaber 18RU 25.6" Wide x 25.6" Deep Outdoor Cabinet with AC110V Fans, NEMA 4X Rated|Grey
- SKU: LSO-18UOD-650650F
$1,249.88 $1,875.00
Product Information
LightSaber Optics LSO-18UOD-650650F
18RU 25.6" Wide x 25.6" Deep Outdoor Cabinet with AC110V Fans, NEMA 4X Rated|Grey
Outdoor Telecommunication Cabinet with AC110V Cooling fans is mainly used for wireless communications to house a variety of batteries and equipment, including the new generation of 5G systems, LTE networks, communication networks/network integrated services, access/transmission switching station, emergency communication/transmission. It is designed for a variety of applications and can be tailored to fit your specific needs.

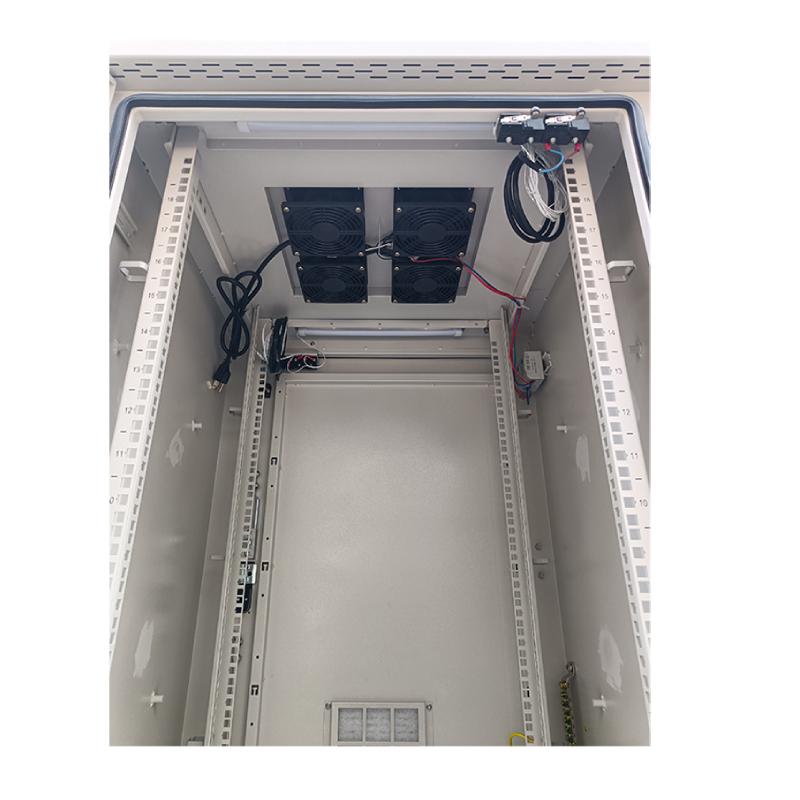

4pcs cooling fans are installed on the top of cabinet for keeping a stable temperature inside cabinet so as to increase service life and stability of battery and equipment. It provides a secure, thermally managed environment for backup battery systems for telecommunications and cable applications.
Features:
- Fully assembled.
- 3-point locking system.
- 18U equipment space.
- 19inch equipment rail, with cable rings included.
- 4pcs AC110V 60Hz Cooling fans mounted on the top roof.
- Front door and rear door opening access.
- Wind stop bracket to hold the doors when opening.
- Grounding copper bar.
- Document box at the rear door for store the equipment manual or useful document.
- Cable entry holes with gromment on the bottom.
Also comes with:
- 4x AC110V Cooling fans(with temperature controller)
- 2x DC48V LED light ( 1pcs at front top,1pcs at rear top)
- 2x Front Door alarm sensors and 2 x rear door alarm sensors (1 sensor is connecting to the DC48V LED light, the light will be ON when the door opens and OFF when the door closed; 1 sensor is pre-configured with the EMS unit)
- 30 x M6 cagenut
- 2xKeys
- 1xManual
Application:
- Telecommunication
- Wireless/Broadband
- Base station
- Solar based installations
- Wireless cell sites & switches
- Transmission terminals
- Data and Control
- Transportation
Specifications
Specifications LSO-18UOD-650650F
| Rack Unit Size | 18U |
| Cabinet Type | Floorstanding Outdoor Cabinet w/ AC110V Fans |
| Color | Grey RAL7035 |
| Material | Galvanized Steel |
| Unit Dimension(WxDxH) | 25.59 x 25.59 x 45.28 inches (without extrude rain roof dim.) |
| Unit Weight(lbs.) | 180.73 |
| Internal Depth (Front Rail to Back Door) | 21.73 inches |
| Rail to Rail Depth | 20.08 inches |
| Shipping Dimension(WxDxH) | 28.94 x 28.94 x 45.28 inches |
| Shipping Weight(lbs.) | 224.8 |
| Electrical | |
| Cooling | AC110V/60Hz Cooling Fans |
| Grounding | Earthing Copper Bar,Grounding Wires |
| Other | DC48V LED Lights |
| Door Alarm Sensors | |
| Certifications | |
| Safety | CE |
| Approvals | DIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS |
| Warranty | |
| Product Warranty | 1 Year |
