Product Information

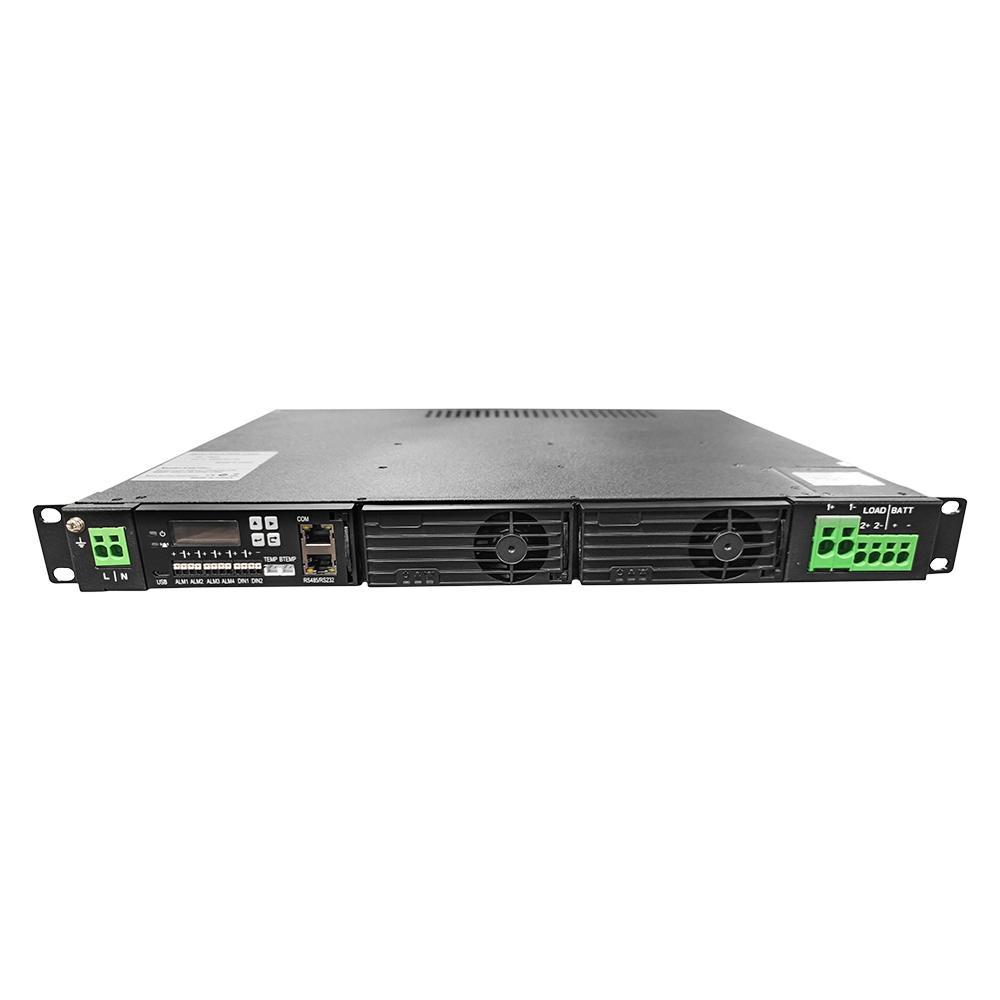

LightSaber Optics LSO-48100-I
Lightsaber 1U System 48V (3000W*2) Rectifier
SNMP MIB Download
LSO-48100-I is an AC/DC embedded power system with excellent performance such as high power efficiency, intelligent battery management,remote management, wide range of AC input voltage, etc. The system can configure 3 pieces of 1U 50A high rectifier modules, and provides 150A rated current output. E48150L-II can be embedded in 19-inch rack or cabinet.
Features:
- 1U rectifier: high density, high efficiency, excellent high temperature performance (full load @ 55°C).
- Wide operation temperature range of embedded power from -40°C to 80°C.
- Hot-swappable rectifiers provide easy installation and maintenance.
- Standard installation structure design, adapt to various scenarios.
- Compact design (only 2U in height), saving space and installation cost.
- Excellent rectifier dormancy function helps increase system efficiency.
- Intelligent battery management and protection help to prolong battery lifespan.
- Support environmental signal monitoring and remote management through dry contact, serial interface or ethernet interface (options).
Application:
- Wireless base station.
- Transmission network.
- Communication network of enterprises.
Specifications
Specifications LSO-48100-I
| System | |
| Dimension | 440mm(W)×354mm(D)×44mm(H) 17.32" x 13.93" x 1.73" inch |
| Weight | ≤8.5kg (18.73 lbs) |
| Cooling mode | Natural cooling |
| Installation mode | Installed on 19-inch rack or inside the cabinet |
| Cabling mode | Front inlet and Front outlet |
| Maintenance mode | Front maintenance, support module grade change |
| Protection level | IP20 |
| AC Distribution | |
| Input mode | 220VAC single phase |
| Input capacity | 40A terminal |
| Output capacity | N/A |
| Input frequency | 45~66Hz, rated value: 50Hz/60Hz |
| SPD | 20kA/40kA, 8/20μs |
| DC Distribution | |
| Output voltage | -42~-58VDC, rated value: -53.5VDC |
| Maximum capacity | 6000W |
| Battery breakers | 1×40A/ |
| Load breakers | 1×80A; 1×40A; |
| SPD | 10kA/20kA, 8/20μs(Optional) |
| Rectifier | |
| Input voltage | 85VAC～300VAC, rated 220VAC |
| Efficiency | R483000H1＞ 96%Peak, R483000E1＞ 92% |
| Rated power | 3000W(176~300VAC) |
| Working temperature | R483000H1 -40°C~+85°C(full load @ 55°C), R483000E1 -40°C~+80°C(full load @ 50°C) |
| Dimension | 106mm(W)×286mm(D)×42.5mm(H) |
| Weight | ≤1.9kg |
| Cooling mode | Forced cooling |
| Power factor | ≥0.99 |
| THD | ≤5% |
| Controller | |
| Signal input | 1 Battery temp, 1 ambient temp & 2 common DI |
| Alarm output | 4 dry contact |
| Communication port | RS232/485, SNMP |
| Display mode | LCD |
| Environment | |
| Operating temperature | -40°C~+80°C |
| Storage temperature | -40°C~+70°C |
| Operating humidity | 5%~95%(non-condensing) |
| Altitude | 0~2000m |
