LightSaber Optics 48V Controller for Rectifier System
- SKU: LSO-48VCONTROLLER-SNMP
$115.18 $336.55
Product Information
LightSaber Optics LSO-48VCONTROLLER-SNMP

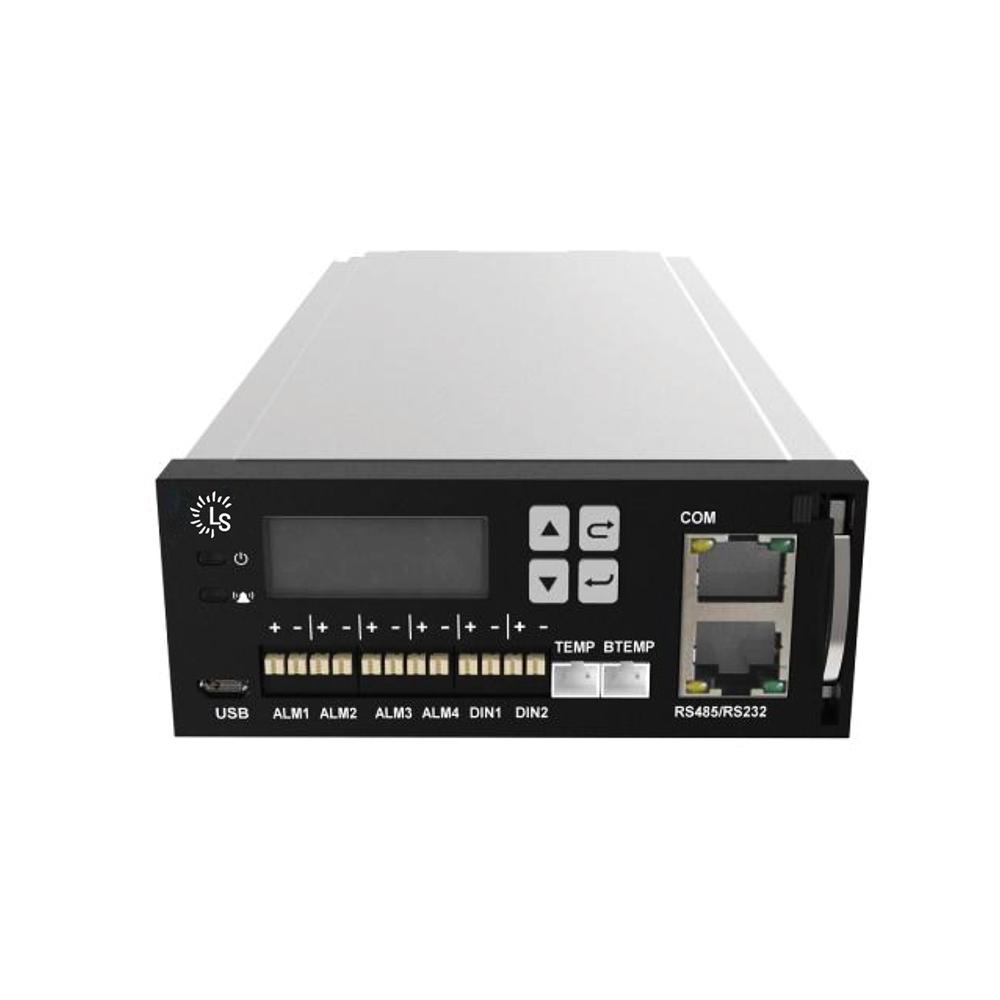

LightSaber 48V Controller for Rectifier System
SNMP MIB Download
Features:
- Monitors the power system operating status in real time.
- Detects and reports alarms in real time.
- Supports multiple remote management modes.
- Supports flexible rectifier management.
- Supports effective energy conservation management.
- Supports comprehensive battery management.
- Supports intelligent temperature control management.
- Supports flexible and programmable logic control.
- Supports detailed data records and performance statistics.
Specifications
Specifications LSO-48VCONTROLLER-SNMP
| DC Input | |
| Voltage（V） | 40Vac ~ 60Vdc |
| Current（A） | ≤0.2A |
| Power | 10W |
| Communication Port | |
| Signal input | 1 Battery temp, 1 ambient temp & 2 common DI |
| Alarm output | 4 dry contact |
| SNMP | TCP/IP |
| CAN | |
| Baud rate | 50K bit/s |
| Storage Capacity | |
| Historical records | Up to 3000 |
| Display mode | LCD |
| LCD | |
| Dimensions mm | 13×36 |
| Dimensions mm（W×D×H） | 106×195×42 (4.17" x 7.67" x 1.65") |
| Weight（kg） | 0.5kg (1.10 lbs) |
