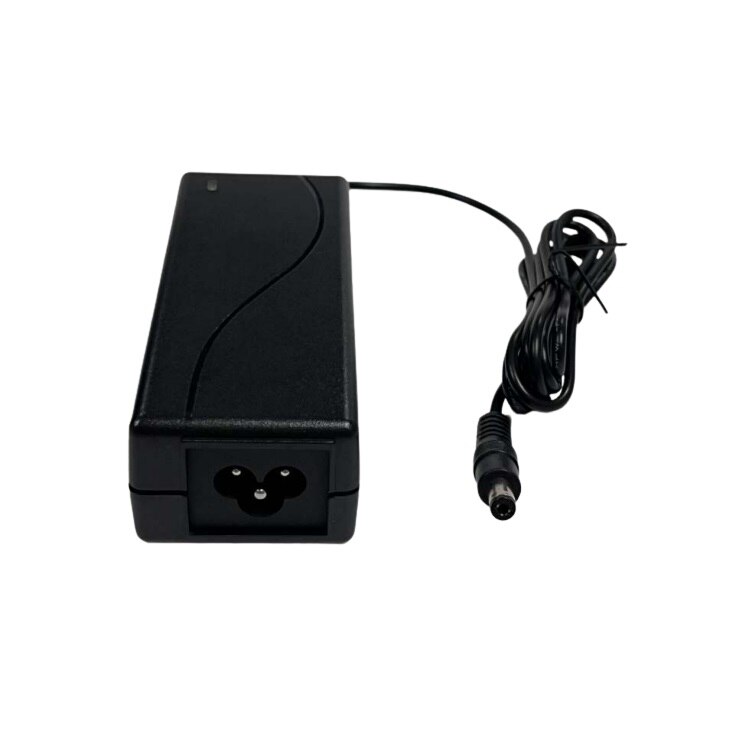

LightSaber 50V 65W Power Supply (Perfect for Netonix)
US$15.00
- SKU: LSO-PS-50V65W
- Manufacturer: LightSaber
Product Information
LightSaber LSO-PS-50V65W
50V 65W Power Supply (Perfect for Netonix)
The document detail the electrical, mechanical and environmental specifications of a 65W constant voltage . The power supply shall meet the RoHS requirement.
Specifications
Specifications
| Input | |
| Input Voltage & Frequency | 90 Minimum 264Vac Maximum |
| Input AC Current/AC | 1.5Amax. @ input 100-240Vac & Full load. |
| Inrush Current (Cold Start) | 60Amax. @ input 240Vac. |
| Efficiency (Normal) | 80% min. input 115Vac& 4 point average |
| Energy Consumption | The No-load power consumption shall be less than 0.3w at 100VAC |
| Output | |
| Turn on Delay Time | 3.0S max. @ input 100 – 240 Vac & Full load |
| Hold up Time | 1mS min. @ Full load &115Vac/60Hz input turn off /115Vac/60Hz 3mS min. @ Full load &230Vac/50Hz input turn off /230Vac/50Hz |
| Output Overshoot Undershoot | 20% max. When the power on or off |
| Output Load Transient Response | output voltage within49V～51V for load step from 25% to 75%, R/S: 1A/uS, frequency: 100Hz |
| Protection | |
| Over Current Protection | The output shall hiccup when the over currents applied to the output rail, and shall be self-recovery when the fault condition is removed |
| Short Circuit Protection | The input power shall decrease when the output rail short, the power supply sh-all no damage, and shall be self-recovery when the fault condition is removed |
| Operating Temperature and Relative Humidity | -0℃ to +40℃ 10%RH to 95%RH |
| Storage Temperature and Relative Humidity | -20℃ to +70℃ 5% to 95%RH non-condensing @ Sea level shall be low 10,000 feet |
| Vibration | 10 to 300Hz sweep at a constant acceleration of 1.0G(Breadth: 3.5mm) for 1Hour for each of the perpendicular axes X, Y, Z. |
| EMI/EMS Standards/EMI/EMS | (1).FCC PART 15B( CLASS B) (2).EN55022( CLASS B) (3).EN55024. |
| Safety Require | |
| Dielectric Strength(Hi-pot) | Primary to Secondary: 2000Vac 10mAMax / 60second(3second for production) |
| Insulation Resistance | 50MΩ min. at primary to secondary add 500Vdc test voltage. |
| Regulatory Standards | UL62368-1; □UL1310; □IEC/EN62368-1; ; □GB4943;□GB4706; ■IEC/EN61558 ;□IEC/EN61558-2-16 ;□IEC/EN60335-1; □IEC/EN60335 ;□AS/NZS/62368; □AS/NZS60335;□AS/NZS61558;EN60601; □PSE;□BS/UKCA; □K60950-1; |
| Environmental Protection Requirements | ROHS □REACH □WEEE □NSF □Prop 65 □BPA≤1000ppm □PAHS(18P) □PHTHALATES(18P) □NP □DMF |
