LightSaber Optics Universal Tinned Ground Kit, 1/2"-2-1/4" w/5' UA Lead & Hdw
- SKU: LSO-TCA-UGK-A
$19.99 $29.99
- Manufacturer: LightSaber Optics
- Data Sheet: Download
Product Information
LightSaber Optics LSO-TCA-UGK-A

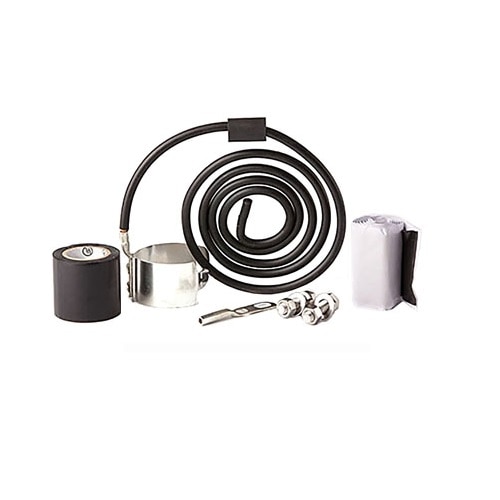

Universal Tinned Ground Kit, 1/2"-2-1/4" w/5' UA Lead & Hdw
Designed to protect against maximum amps surges from lightning punctures. The 6 gauge copper wire provides the most practical and effective low inductance transfer of lightning induced current from your coax to your system ground. Comes in weatherproof packaging, including universal slotted 3/8’’ two-hole lug, hardware, butyl, & electrical tape. Designed for most cables diameters.
Features:
- PVC Tape is UL listed and compliant
- Includes: Grounding Kit, Hardware Kit, Lug, One roll of 2 in PVC tape, One roll of 24 in butyl rubber tape Lug field attached Weatherproof with enclosed butyl and electrical tape.
Specifications
Specifications LSO-TCA-UGK-A
| Dimension | 7.00 in. wide x 2.00 in. high x 11 in. deep |
| Weight | 1.33 lbs. |
| Nominal Size | 1/2" to 3" Cable |
| Conducter Length (lead) | 5 ft or 60 in |
| Compatible Diameter Maximum | 3 in |
| Compatible Diameter Minimum | 1/2 in |
| Cable Type | Corrugated or Smooth Wall |
| Color | Black |
| Conductor Material | Copper |
| Conducter Wire Size | 6 gauge |
| Grounding Strap Material | Tinned Copper |
