McCown Technology Corporation GigE POE Surge Supressor

(0)No Reviews yet
  • SKU: 800-GIGE-POE
  • Manufacturer: McCown
  • Data Sheet: Download
4 in stock
College Station
4 In stock

Product Information

McCown Technology Corporation 800-GIGE-POE

GbE PoE Surge Suppressor High Voltage

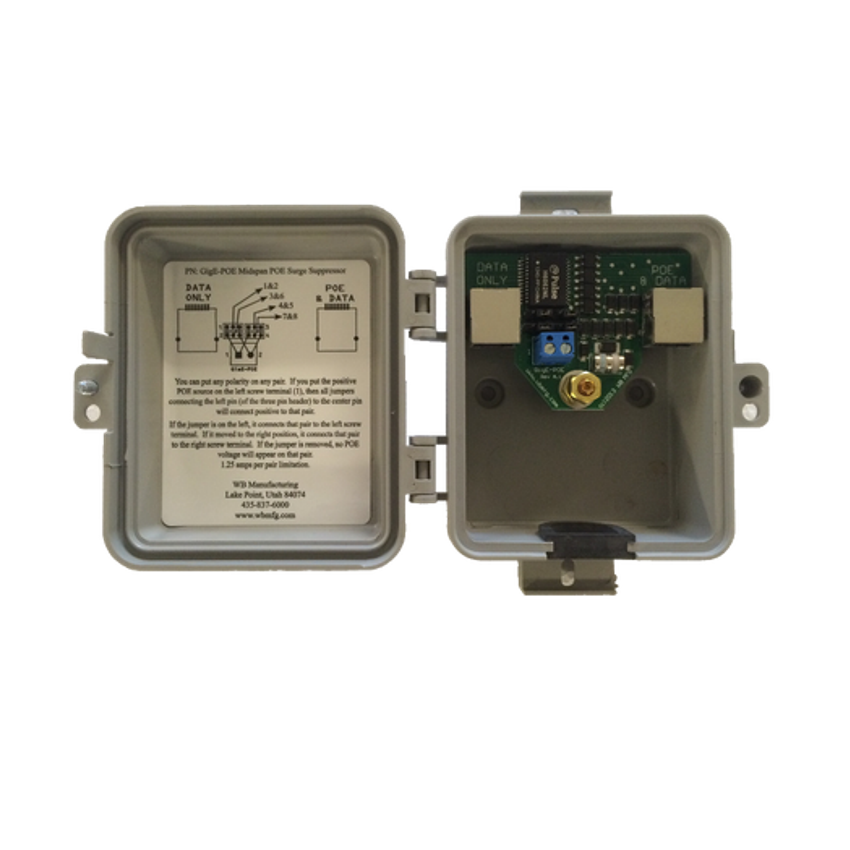

Outdoor GigE Ethernet surge suppressor – protector with midspan POE insert/extract. Configuration via jumper plugs allow any combination of polarity and pair use with up to 500mA per pair. If all 8 wires are configured as the same polarity, 2 amps can be conveyed. This device will power 802.3af/at devices or extract power from a POE powered circuit. This device is also designed to protect GigE over copper equipment in an outdoor environment. Shielded RJ45 jacks provide grounds to shielded plugs.


Features:

  • GigE Ethernet surge suppression design with low clamp voltages
  • Shielded RJ45 connectors provide a ground to shielded plugs
  • Ultra fast suppression – typically less than 1.0ps from 0 Volts to BV min
  • Faster acting than Thyristor and Gas Tube only designs
  • Lower loss and crosstalk than Thyristor based designs
  • Ethernet CRC error correction circuit
  • Tool-less entry
  • Cover is hinged
  • Dust tight
  • Back knockout feature for concealing wires
  • Ultra fast suppression – typically less than 1.0ps from 0 Volts to BV min
  • Up to 2.00 amp total (500mA per pair) POE capability (RJ45 limits are 500 mA or less per pair)
  • Any polarity on any pair – total flexibility

Applications:

  • Backhaul radios
  • Point to point microwave radio powering
  • Installed at outdoor tower colocation sites
  • Conveying power over unused Cat5/6 cables
  • Emergency spare POE
  • Pulling power from POE circuits
  • Powering Cameras
  • Up to 68 volts AC or DC
  • Note: Does not allow “split pair” powering for devices like Canopy PMP430, or direc DC-powered devices like PMP100.

Specifications

Specifications 800-GIGE-POE

Electrical
Attenuation3dB @ 1000Mhz
NEXT Increase0.2dB
Return Loss Decrease0.3dB
Clamping VoltageHV Version 69 Volts
Mechanical
Height5.5 inches
Width4.4 inches
Weight.35 lbs (.15kg)
