McCown Technology Corporation GigE HV 802.3af Outdoor SS
- SKU: 800-GIGE-SS-HV
US$35.95
- Manufacturer: McCown
- Data Sheet: Download
Product Information

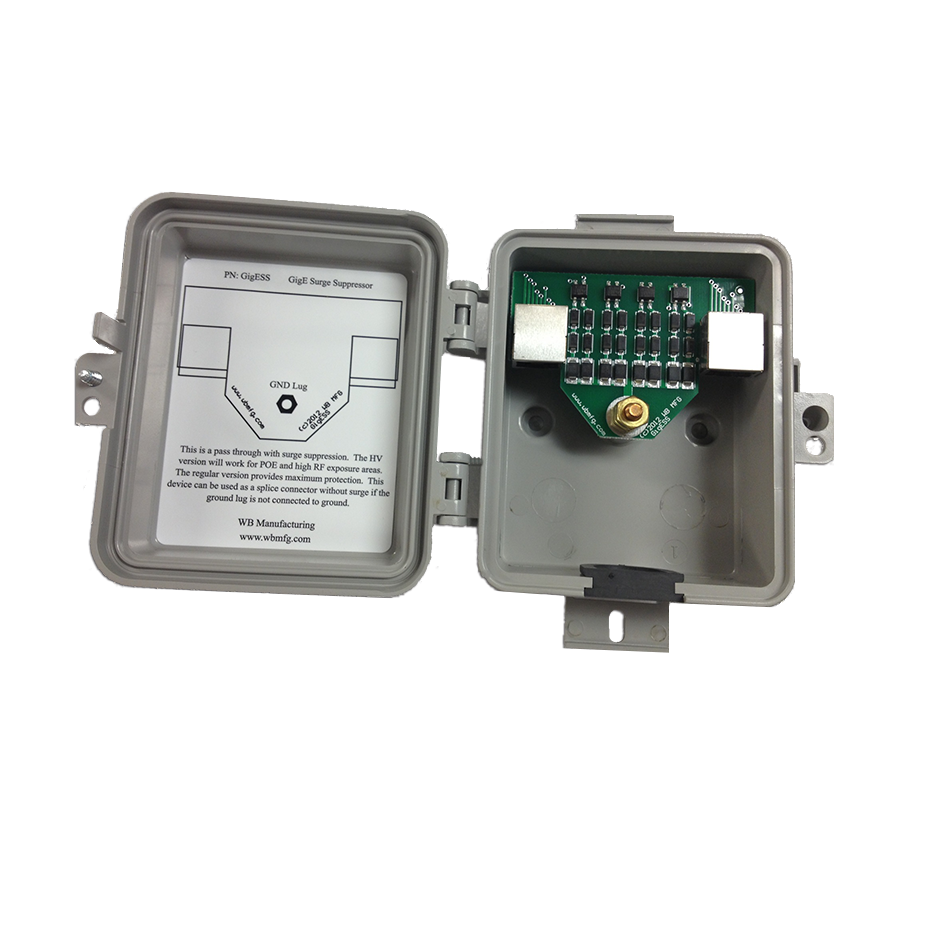

McCown Technology Corporation 800-GIGE-SS-HV
GigE Surge Suppressor - High Voltage
Outdoor mount GigE surge suppressor. The circuit is similar to proven and popular 444SS suppression circuit. This device is designed to protect GigE over copper equipment in an outdoor environment. The HV version supports 802.3af modes A and B. Shielded RJ45 jacks provide grounds to shielded plugs.
Features:
- GigE Ethernet surge suppression design with low clamp voltages
- Shielded RJ45 connectors provide a ground to shielded plugs
- Ultra fast suppression - typically less than 1.0ps from 0 Volts to BV min
- Faster acting than Thyristor designs
- Lower loss and crosstalk than Thyristor based designs
- Ethernet CRC error correction circuit
- Tool-less entry
- Cover is hinged
- Dust tight
- Back knockout feature for concealing wires
- Ultra fast suppression - typically less than 1.0ps from 0 Volts to BV min
Specifications
Specifications 800-GIGE-SS-HV
| Electrical | |
| Attenuation | 3dB @ 1000Mhz |
| NEXT Increase | 0.2dB |
| Return Loss Decrease | 0.3dB |
| Clamping Voltage | 4 Volts (HV Version 69 Volts) |
| Mechanical | |
| Height | 5.5 inches |
| Width | 4.4 inches |
| Weight | .35 lbs |
