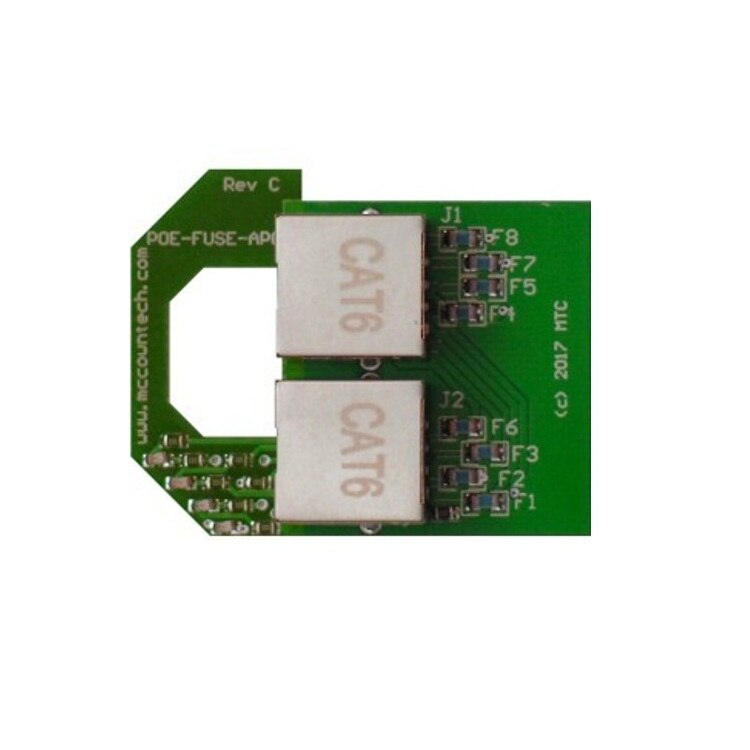

McCown Technology Corporation 800-POE-FUSE-APC

Rack Mount Ethernet POE Fuse

The POE FUSE APC is designed to fit into the popular 1RU APC racks.

Protects the POE power supply such as switches from being blown due to over current situations. Some of the better POE switches that have multiple voltage and current output options do not survive having a CAT5 cable cut or a connected device malfunction shorting out the Ethernet cable. The MTC POE fuse products provide fast acting fuses on each individual wire of the CAT 5 cable to prevent damage to the powering device. It also prevents surges from back feeding into the POE power supply.

Protects the POE supply from surge protection devices: Surge suppressors are doing their job properly in clamping the CAT 5/6 conductors to ground during surge impulses. A problem that has arisen with the widespread use of GIGE surge suppressors in that they do their job too well. If a surge triggers the surge suppressor, it clamps all the conductors to ground. Since they are all connected to ground they are also all connected to each other. That is the definition of a short circuit. If the circuit is powered with a POE device, it is shorted our every time the surge suppressor is doing its job. In some cases the surge suppressor is the thing causing damage due to this condition.

Many POE devices also contain ESD and surge suppression components to protect their own circuitry. During a surge condition the POE powered device may also short the incoming CAT5/6 cable. Thus blowing the power supply. The POE FUSE will protect both the device and the power supply from damage under these conditions.

Must be installed between POE supply and the surge suppressor device to properly protect the supply.

Features & Applications:

  • One 500 mA slow blow fuse per positive wire.
  • 2 Amps per port
  • All POE circuits
  • All POE supplies
  • All POE powered devices
