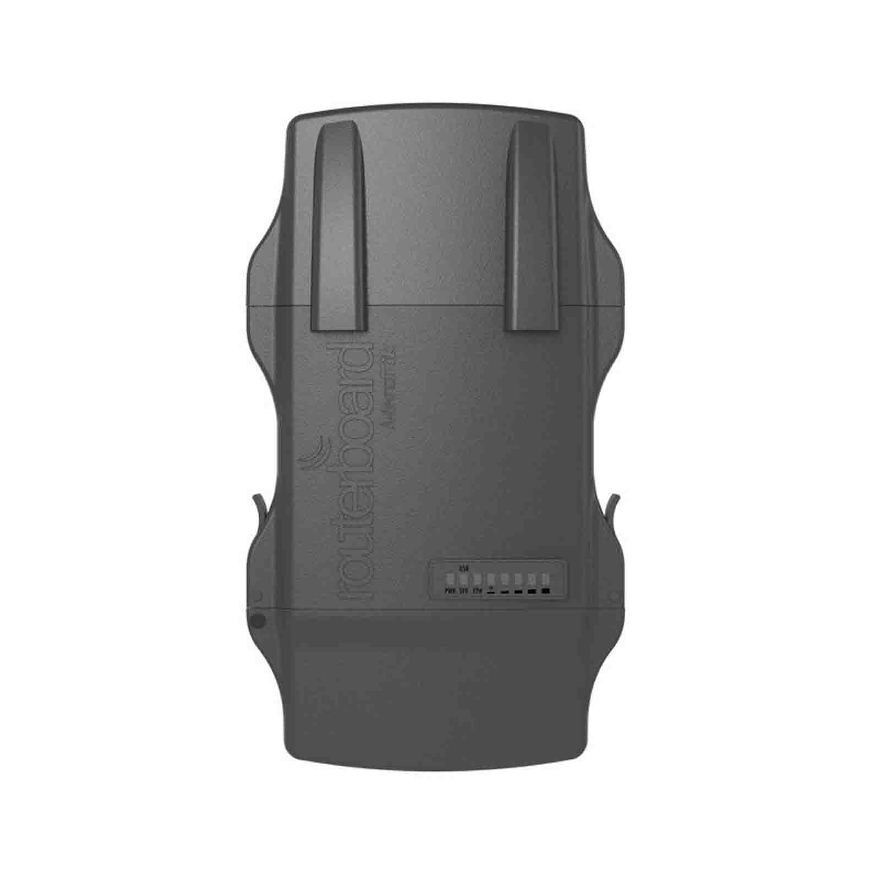

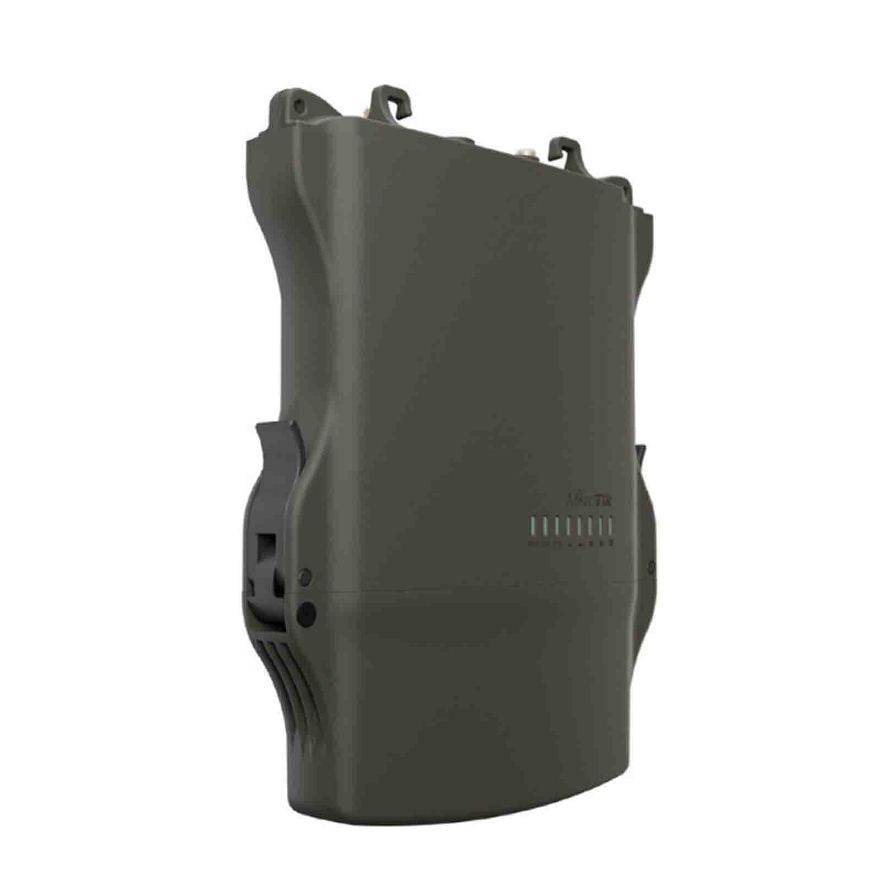

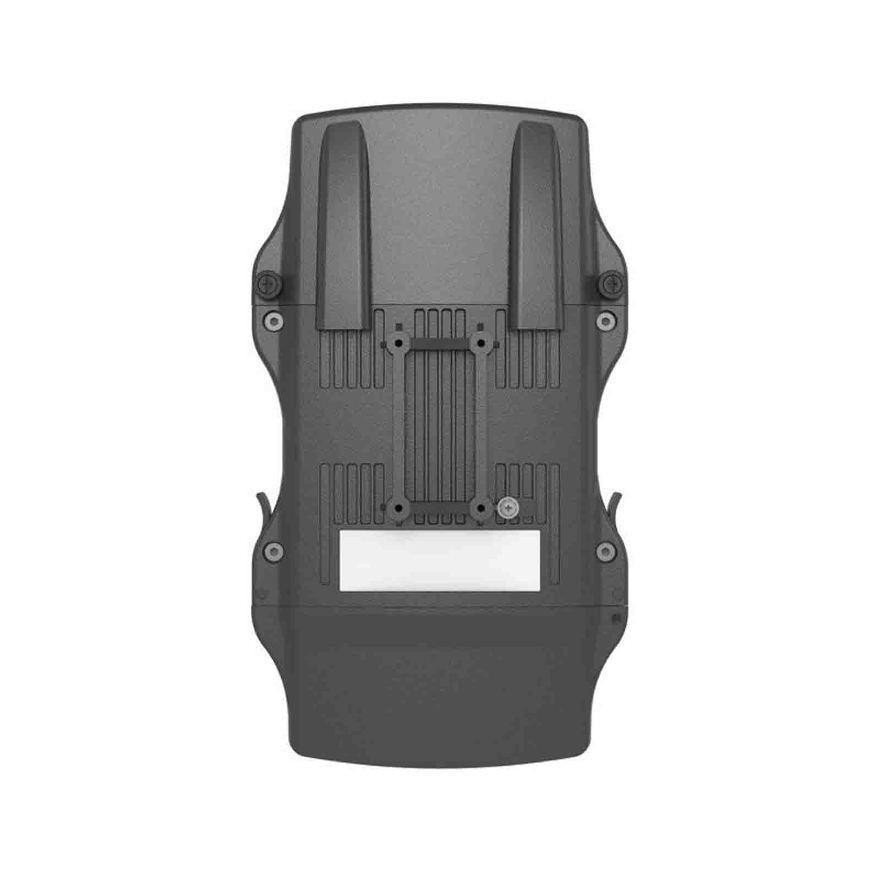

MikroTik RBD23UGS-5HPacD2HnD-NM-US NetMetal ac² Dual Band High Power ODU with 2X RPSMA connectors
- SKU: RBD23UGS-5HPacD2HnD-NM-US
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
MikroTik RouterBOARD RBD23UGS-5HPacD2HnD-NM-US
NetMetal ac² Dual Band High Power ODU with 2X RPSMA connectors
More power and advanced features, with the same design philosophy as its predecessors – the new NetMetal ac² AP is sturdy, reliable, easy to use and extremely capable. This is the best way to add IPsec hardware acceleration to your backhaul link! We have added an out-of-the-box 2.4/5 GHz dual-band support – no need for additional tinkering!
NetMetal ac² can handle massive loads, as it features an improved 4-core CPU and 256 MB RAM. There is a miniPCIe slot for an LTE or other wireless modules and an SFP port for fiber. The NetMetal ac² can be a very adaptable addition for all kinds of setups.

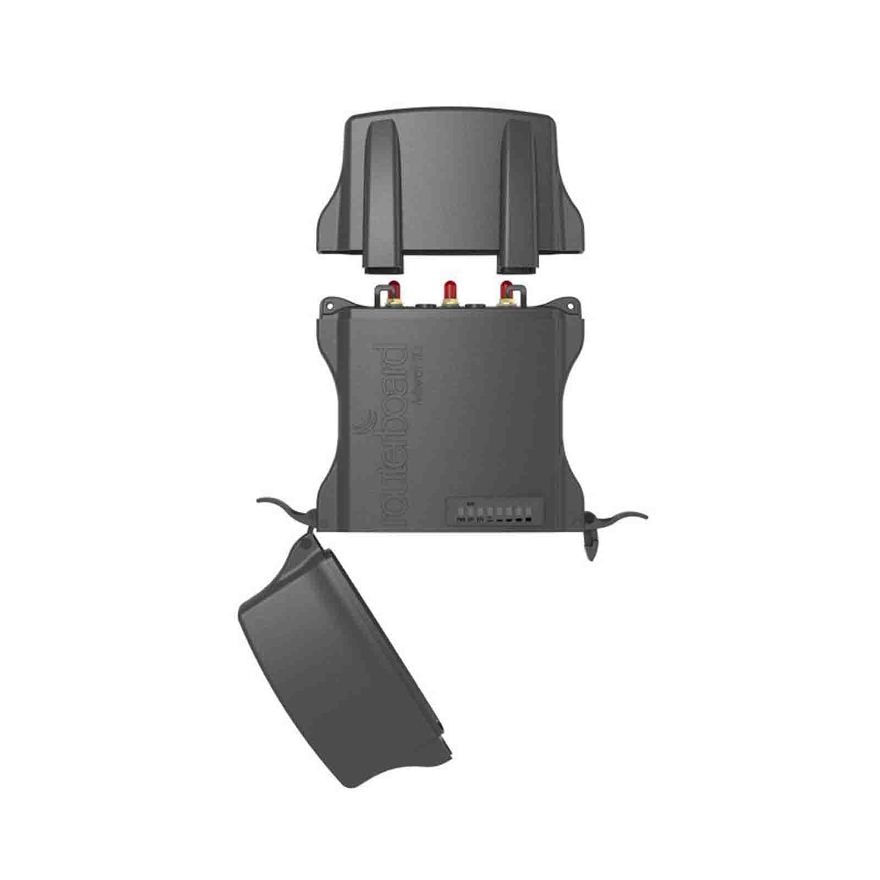

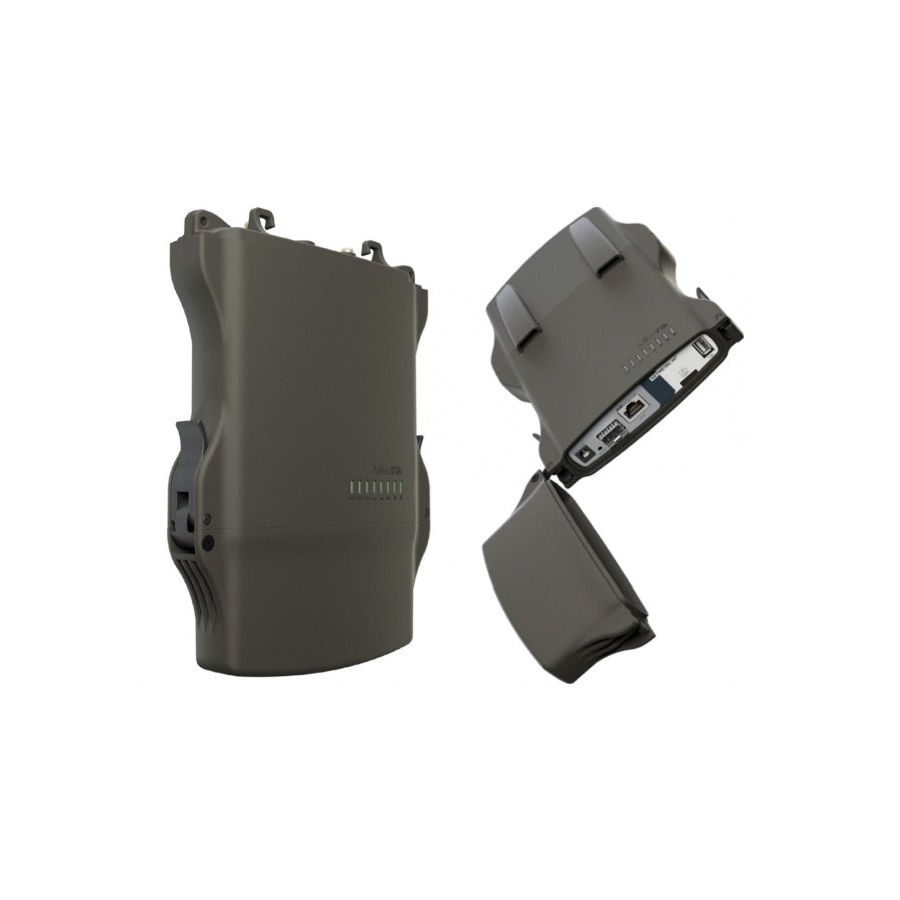

The enclosure has an IP rating of IP54 with protection against splashing from any angle, but it can still be opened and closed with one hand. Very handy in rough environments!
Features:
- Work in the 2.4 GHz and 5 GHz band
- 802.11 b / g / n / a / ac standard
- Bandwidth up to 300Mb / s in the 2.4 GHz band and up to 866 Mb / s in the 5 GHz band
- Gigabit Ethernet port
- miniPCIe card slot
- Slot for the SFP insert
- USB 2.0 port micro SIM card slot
- RP-SMA antenna connectors (with pin, external thread)
- PoE IN 802.3 af / at 24-57 V power supply or DC 12-57 V socket
- RouterOS system with a Level 4 license
Specifications
Specifications RBD23UGS-5HPacD2HnD-NM-us
| Architecture | ARM 32 bit |
| CPU | IPQ-4019 |
| CPU core count | 4 |
| CPU nominal frequency | 716.8 MHz |
| Dimensions | 143 x 247 x 48 mm |
| License level | 4 |
| Operating system | RouterOS |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | SPI flash |
| Tested ambient temperature | -40°C .. +70°C |
| Powering | |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| PoE in | 802.3 af/at |
| Poe in input voltage | 24 - 57 V |
| DC jack input voltage | 12 - 57 V |
| Max power consumption | 28 W |
| Max power consumption without attachments | 12 W |
| Wireless | ||
| 2.4 GHz | 5 GHz | |
| Max data rate | 300 Mbit/s | 866.7 Mbit/s |
| Number of chains | 2 | 2 |
| Connectors | 2 | |
| Connector type | RP-SMA | RP-SMA |
| Supported protocols | 802.11 b/g/n | 802.11 a/n/ac |
| Interface model | IPQ-4019 | IPQ-4019 |
| Wi-Fi generation | Wi-Fi 4 | Wi-Fi 5 |
| Ethernet | |
| Number of 1G Ethernet ports | 1 |
| Fiber | |
| SFP DDMI | Yes |
| SFP ports | 1 |
| Peripherals | |
| Number of USB ports | 1 |
| USB power reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
| miniPCIe slots | 1 |
| Number of SIM slots | 1 |
| SIM slot type | Micro SIM |
| Others | |
| PCB temperature monitor | Yes |
| Voltage monitor | Yes |
| Certification & Approvals | |
| Certification | FCC, IC, IP54 |
