MikroTik 1U Rackmount Router 13x Gigabit Ethernet ports

(0) No Reviews yet
  • SKU: RB1100AHx4
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • Quick Guide: Download
  • Block Diagram: Download
  • Availability: November 20, 2019Email me when this product is in stock!
$299.00

Specifications RB1100AHx4

ArchitectureARM 32bit
CPU AL21400, 4 cores, 1.4GHz
Size of RAM 1GB
Storage type NAND
Storage size 128MB
10/100/1000 Ethernet ports 13
Ethernet bypass Ethernet 11/12
Power jack 2x IEC. 100V - 240V
DC telecom power 20V - 57V (-48V supported)
PoE input Passive, 802.3at. 20 - 57V
Redundant power supply Yes
Voltage monitor Yes
PCB temperature monitor Yes
Current monitor Yes
Dimensions 444 x 148 x 47 mm
Operating system RouterOS, level 6 license
Max Power consumption 25W
microSD 1
SATA 2x 2.5 inch SATA 3
M.2 slots 2x SATA 3 compatible (supports 2242, 2260 and 2280 sizes, M-key)
Serial port RS232
Beeper Yes

Mikrotik RouterBoard RB/1100AHx4 RB1100AHx4

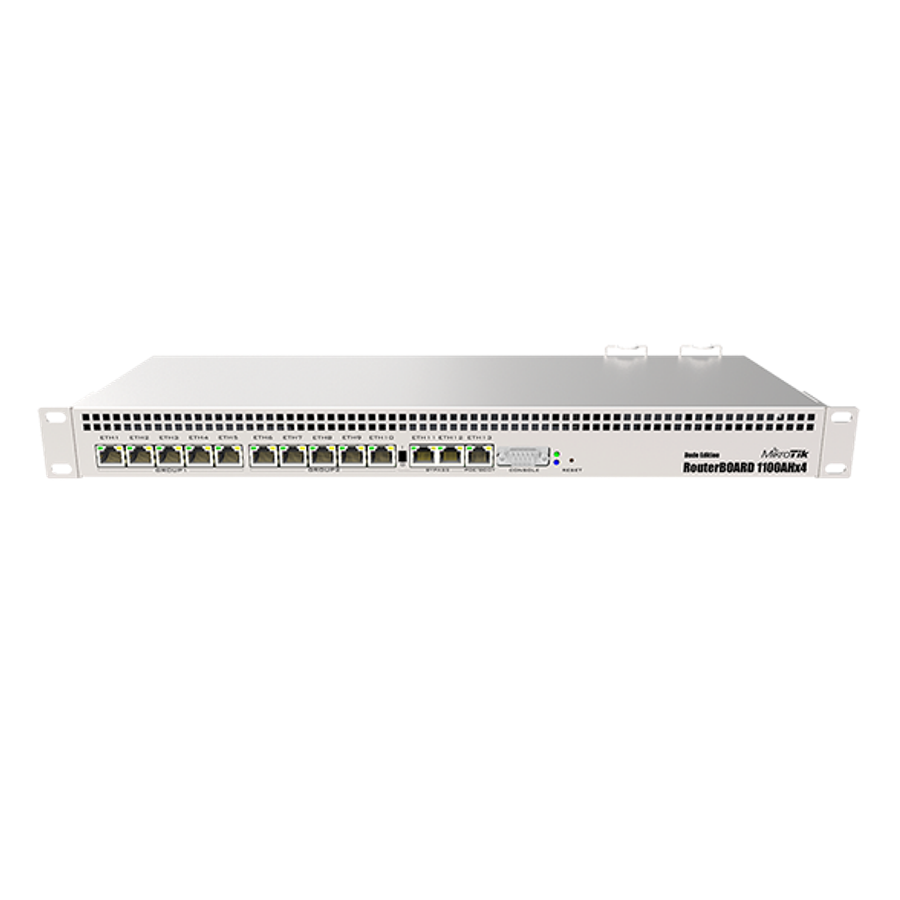

Powerful 1U rackmount router with 13x Gigabit Ethernet ports

Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).

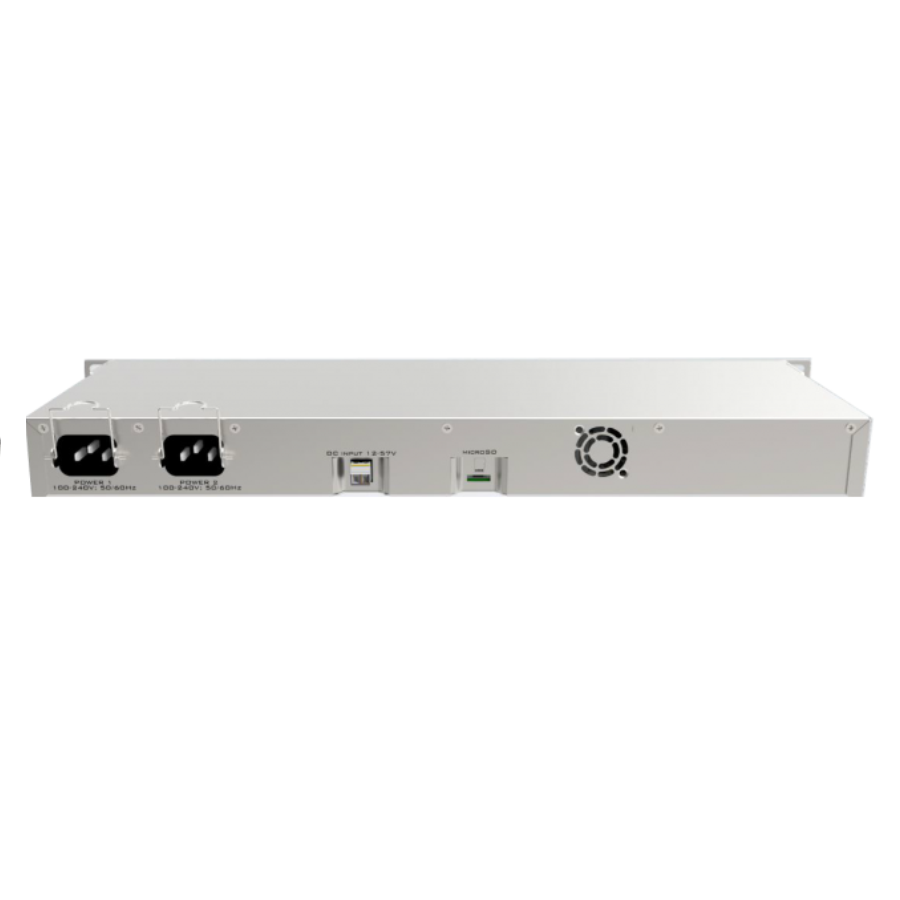

Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).
