MikroTik Small weatherproof wireless access point LtAP mini 4G kit

(0) No Reviews yet
  • SKU: RB912R-2nD-LTm&R11e-4G
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • Quick Guide: Download
  • Availability: 25 In Stock (updated live)
$139.00

(click to select)

Specifications RB912R-2nD-LTm&R11e-4G

Product codeRB912R-2nD-LTm&R11e-4G
CPU QCA9531 650 MHz
Size of RAM 64 MB
Storage 16 MB
10/100 Ethernet ports 1
Wireless Built-in 2.4 GHz 802.11b/g/n, dual-chain
Wireless regulations Specific frequency range can be limited by country regulations
Antenna beam width 360°
Wireless antenna gain 1.5 dBi
GPS Built-in MT3337V, with u.FL RF connector (external antenna required)
PoE in Yes
SIM slot 2 Mini SIM slots
LTE category4 (150Mbps Downlink, 50Mbps Uplink)
LTE antenna gain 3.5 dBi (with uFL connector)
Serial port RS232 (shared with GPS port)
Supported input voltage PoE in: 10 V - 57 V (Passive PoE and 802.3af/at with unshielded cable)
DC jack: 8 - 30 V
MicroUSB: 5 V
Dimensions 139 x 77 x 28,5 mm
Operating temperature -40°C .. +70°C tested
License level 4
Operating System RouterOS
Max Power consumption 9 W
Supported bands
LTE (FDD) bands3/7/20/31 (1800/2600/800/450)
LTE (TDD) bands41n/42/43 (2500/3500/3700)
Although many have successfully used these devices on various US Carrier networks, these devices are not certified on any US Cellular Carrier Networks. The buyer and user assume all risks for using them on carrier networks including the possibility you may not get them to work or that the carrier may decide to ban the use of the device on their network without recourse.

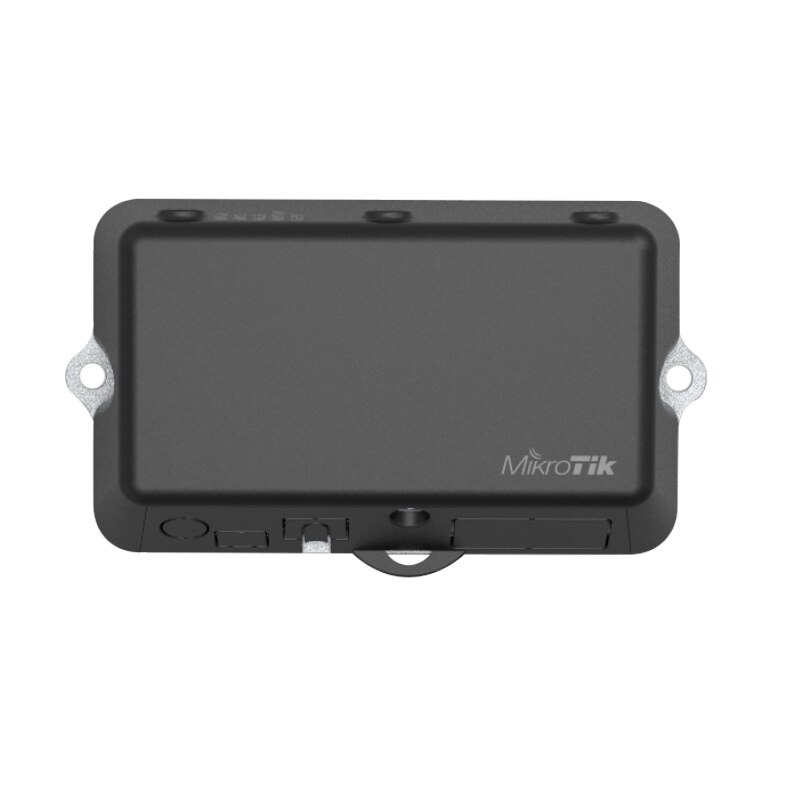

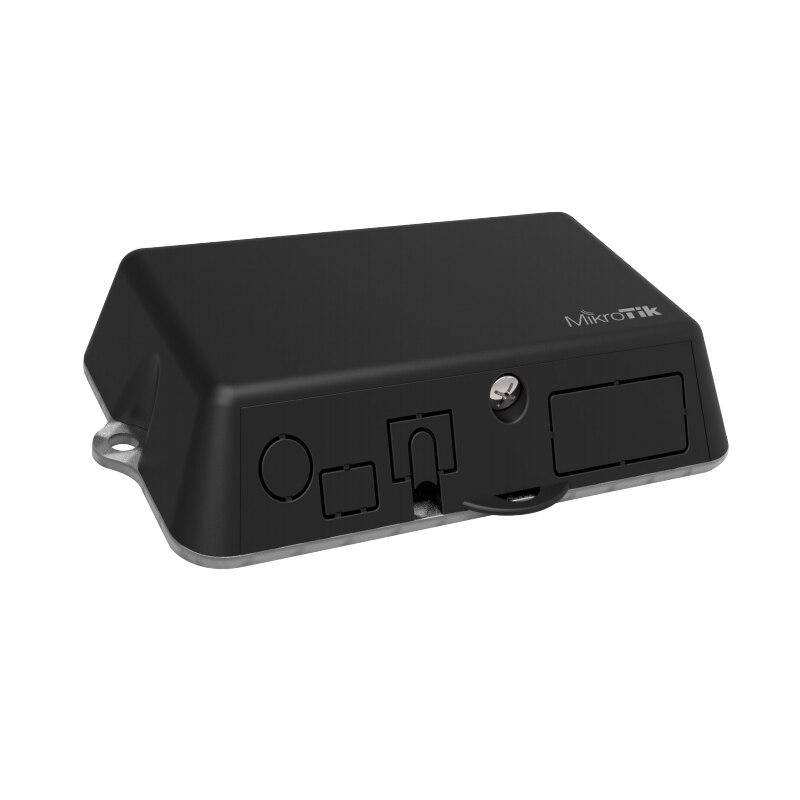

MikroTik RouterBOARD RB912R-2nD-LTm&R11e-4G

LtAP mini 4G kit - Wireless+LTE+GPS solution for vehicles

LtAP mini 4G kit (RB912R-2nD-LTm&R11e-4G) includes LTE modem that supports LTE FDD bands 3 (1800MHz), 7 (2600MHz), 20 (800MHz) and 31 (450MHz), as well as LTE TDD bands 41n (2500MHz), 42 (3500MHz) and 43 (3700MHz).

The LtAP mini LTE kit is a small weatherproof wireless access point with a built in cellular modem that supports 2G (international version only), 3G and 4G (LTE) connectivity. It is also available separately, without the modem, so you can use your own.

Connect to the LtAP mini’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The LtAP mini LTE also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging.

LtAP mini has a special enclosure with with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains. External GPS antenna is available for ordering separately (not included, product code ACGPSA).

The LTE card is connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for better coverage. The unit has several powering options: 10-57 V PoE-in by Ethernet port, DC jack and microUSB.

Use the built in GPS module to track the location of your vehicle in real time, we have even provided a simple tracking application example in the RouterOS documentation, to help you start development of your platform.


Features:

  • 2.4 GHz AP in a rugged case
  • miniPCIe for LTE
  • Two SIM slots
  • Built in GPS
  • Serial port for other devices
  • Perfect for cars or outdoor mobile applications
