Mikrotik Dual chain 24.5dBi 5GHz CPE/Point-to-Point Integrated Antenna, 600Mhz CPU, 64MB RAM INT
- SKU: RBLHG-5nD
Product Information

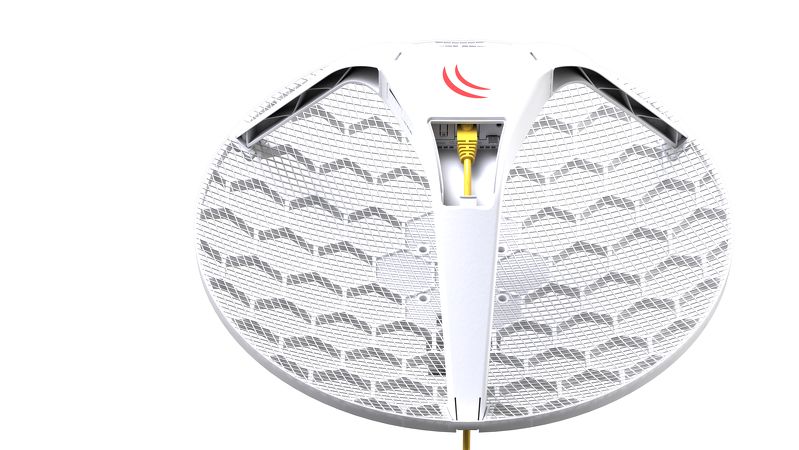

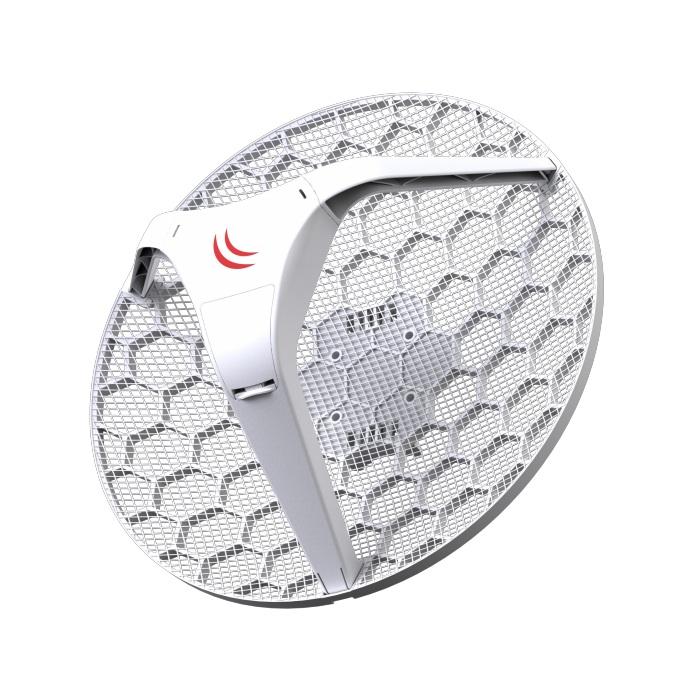

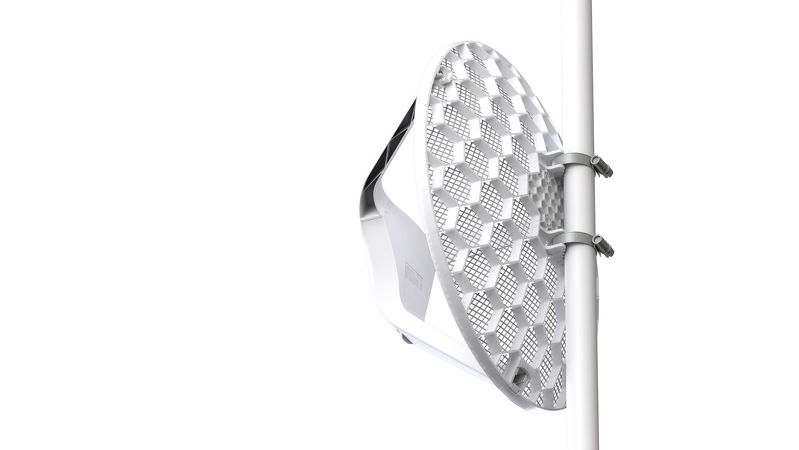

MikroTik RouterBOARD RBLHG-5nD
LHG 5 Wireless Device With Integrated 24.5 dBi Grid Antenna (International Version)
The Light Head Grid (LHG) is a compact and light wireless device with an integrated 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances.
The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
The device comes disassembled for compact shipping, but is very easy to assemble and includes a simple to use grounding attachment point. The package also contains a small adapter for tilting the antenna five degrees from the original position.
Specifications
Specifications RBLHG-5nD
| Product code | RBLHG-5nD |
| CPU nominal frequency | 600 MHz |
| Size of RAM | 64 MB |
| Storage type | Flash |
| Storage size | 16 MB |
| 10/100 Ethernet ports | 1 |
| Wireless | Built-in 5 GHz 802.11a/n, dual-chain |
| Wireless chip model | AR9344 |
| Operating frequency | USA 5170 - 5250 MHz 5725 - 5835 MHz |
| Antenna gain | 24.5 +/- 0.5 dBi |
| Antenna beam width | 7° |
| PoE in | Yes |
| Supported input voltage | 11 V - 30 V (passive PoE) |
| Wind Survivability | 205 km/h |
| Wind Loading | 186N @ 205 km/h |
| Cross polar | 15 dBi |
| Port to port isolation | 20 dB |
| Front to back ratio | 25 dB |
| Operating Temperature | -40 to 70° C |
| Operating Humidity | 5 to 95% noncondensing |
| Shock and Vibration | ETSI300-019-1.4 |
| ETSI specification | EN 302 326 DN2 |
| Dimensions | Ø 391 x 222 mm; package 450 x 450 x 145 mm |
| Weight | Unit: 560 g; package: 1.98 kg |
| Max Power consumption | 6 W |
| Wireless specifications | |
| RATE | Tx (dBm),width="45%">Rx (dBm) |
| 6MBit/s | 25 , -96 |
| 54MBit/s | 20,-80 |
| MCS0 | 25,-96 |
| MCS7 | 19,-75 |
