MikroTik RBLtAP-2HnD&R11e-LTE6 LtAP LTE6 kit Gigabit Ethernet port 2.4GHz access point
- SKU: RBLtAP-2HnD&R11e-LTE6
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
MikroTik RouterBOARD RBLtAP-2HnD&R11e-LTE6
LtAP LTE6 kit Gigabit Ethernet port 802.11b/g/n dual-chain 2.4GHz access point

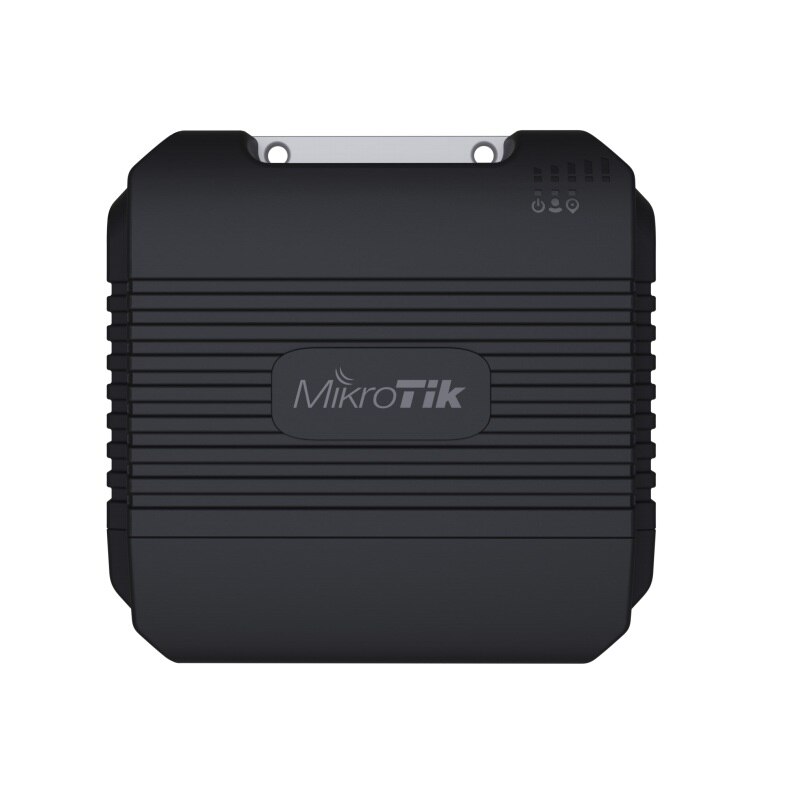

LtAP LTE6 kit is a compact 4G (LTE) capable weatherproof wireless access point – perfect for busy urban environment or off-the-grid outdoors networking. It has a built-in CAT6 cellular modem that supports 4G (LTE) connectivity out of the box – with up to 300 Mbps download speed!

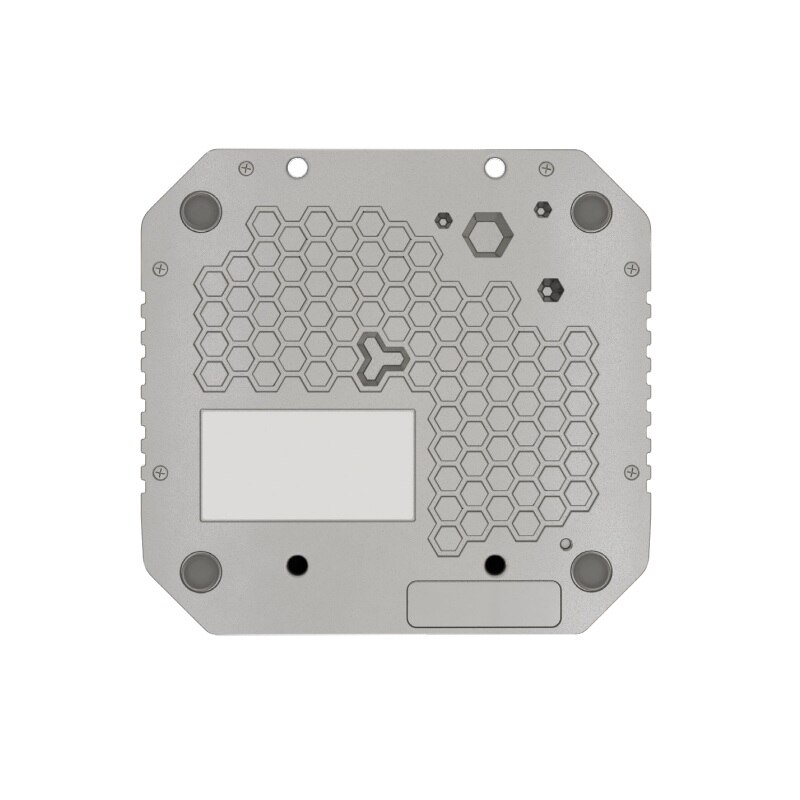

CAT6 also enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside.The rugged and extremely durable case with a special wall mounting kit will be ideal for almost any challenge: from public transportation, food trucks or logistics to harsh winter and stormy desert environment. LtAP can handle any temperature from -40 C° to +70 C°. It is a superb solution for tracking vehicles in real time. We have provided a simple tracking application example in the RouterOS documentation to help you get started. LtAP LTE6 kit even has 3 Mini-SIM slots for easy roaming management. Saves your time and money worldwide!
The unit comes with an extra miniPCIe slot, offering many expansion options. For example, you can install a second LTE modem for redundancy or a 5 GHz interface to have dual concurrent 2.4 GHz / 5 GHz AP + LTE. Another miniPCIe slot is already populated with the LTE modem.

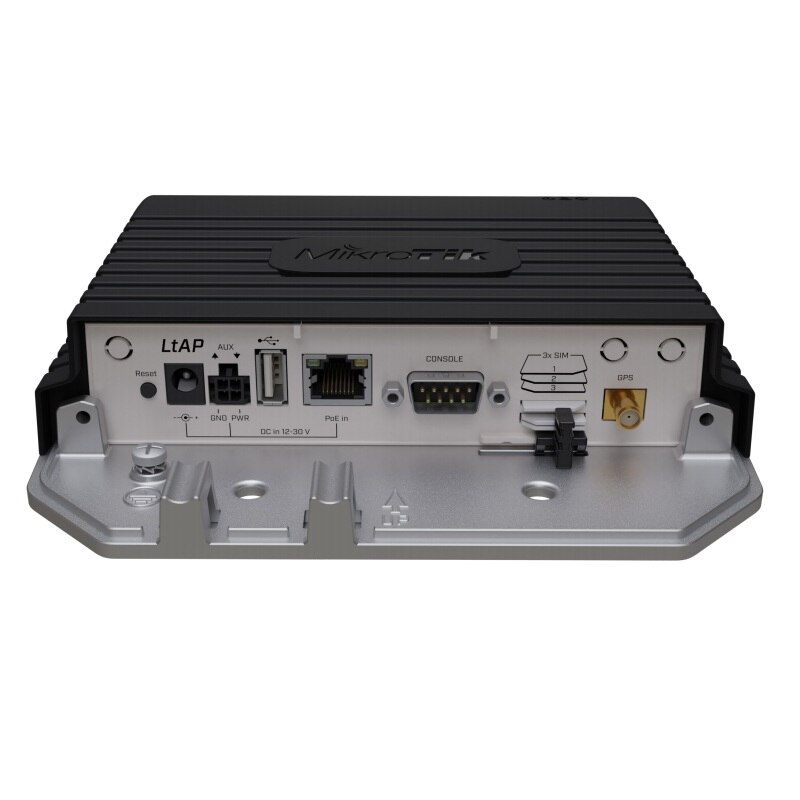

LtAP LTE6 kit has a RS232 serial port, which gives you console access for debugging, as well as full size USB for other devices. There is a Gigabit Ethernet LAN port for your wired devices and several power options – DC jack, POE-in and automotive.
The LtAP LTE6 kit is more than an access point – it is what you need it to be wherever you need it to be!
Features:
- 2.4 GHz AP in a rugged case
- LTE installed in miniPCIe slot
- Second miniPCIe slot for expansions
- Three Mini SIM slots
- Gigabit Ethernet port
- Built-in GPS
- Many powering options (DC jack, POE-in, automotive)
- Serial port and full size USB for other devices
- Perfect for cars or outdoor mobile applications
Specifications
Specifications RBLtAP-2HnD&R11e-LTE6
CPU | Dual-core MediaTek MT7621 880 MHz |
Size of RAM | 128 MB |
Storage | 16 MB flash |
10/100/1000 Ethernet ports | 1 |
Wireless | 2.4 GHz 802.11b/g/n dual-chain |
Wireless regulations | Specific frequency range will be limited by country regulations |
Wireless antenna max gain | 2.5 dBi |
LTE antenna max gain | 4 dBi (with U.FL connector) |
Antenna beam width | 360° |
LTE category | 6 (300 Mbps downlink, 50 Mbps uplink) |
3G category | R7 (21 Mbps downlinks, 5.76 Mbps uplink) R8 (42.2 Mbps downlink, 5.76 Mbps uplink) |
2G category | Class12 |
Supported input voltage | DC jack or automotive connector 12 - 30 V |
PoE in | Passive PoE 12 - 30 V |
Dimensions | 170 x 162 x 40 mm |
Operating temperature | -40°C .. +70°C |
Operating system | RouterOS, License level 4 |
Mini SIM slots | 3 |
MiniPCIe slot #1 | Top slot supports PCIe and USB 2.0 cards, but is shared with the USB 2.0 type A port (can use either USB port or miniPCIe slot at |
MiniPCIe slot #2 | Bottom slot supports only USB (2.0 and 3.0) miniPCIe modems (no PCIe support) |
USB port | 1 USB 2.0 port type A (can only be used if miniPCIe slot #1 is not used) |
Built-in GPS | Yes (external antenna option via MMCX connector) |
Serial port | RS232 |
Max power consumption | 24 W |
Supported bands | |
LtAP LTE6 kit | |
LTE (FDD) bands | 1(2100)/2(1900)/3(1800)/5(850)/7(2600)/8(900)/12(700)/17(700)/20(800)/25(1900)/ 26(850) |
LTE (TDD) bands | 38(2600)/39(1900)/40(2300)/41n(2500) |
3G bands | 1(2100)/2(1900)/5(850)/8(900) |
2G bands | 2(1900)/3(1800)/5(850)/8(900) |
Wireless specifications | ||
Rate (2.4 GHz) | Tx (dBm) | Rx (dBm) |
1MBit/s | 25 | -100 |
11MBit/s | 25 | -94 |
6MBit/s | 26 | -96 |
54MBit/s | 23 | -78 |
MCS0 | 26 | -96 |
MCS7 | 22 | -73 |
