Mikrotik 7.5dBi Integrated AP, 5GHz Dual chain, 5xEthernet ports with PoE output, INT

(0) No Reviews yet
$99.00

Specifications RBOmniTikUPA-5HnD

CPU nominal frequency600 MHz
CPU core count1
Size of RAM128 MB
10/100 Ethernet ports5
Wireless chip modelAR9344
Wireless standards802.11a/n
Supported input voltage11 V - 30 V
PoE inYes
Voltage MonitorYes
PCB temperature monitorYes
Dimensions368x125x55mm
Operating SystemRouterOS
Tested ambient temperature-30 .. +70C
License level5
Antenna gain DBI7.5
CPUAR9344
Max Power consumption11W
Number of chains2
Storage typeFLASH
Storage size16 MB

MikroTik RouterBOARD OmniTikUPA-5HnD (International Version)

7.5dBi Integrated AP, 5GHz Dual chain, 5xEthernet ports with PoE output

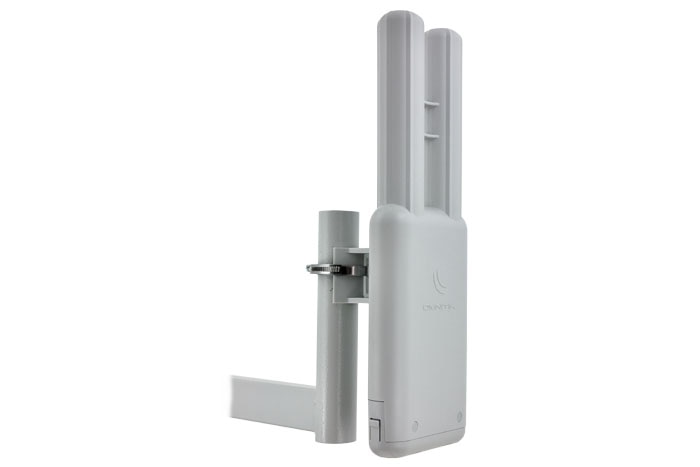

OmniTIK is a weatherproof outdoor AP with dual-polarized omni antennas - the perfect companion for our SXT, or for any other 5GHz 802.11a/n standard device.

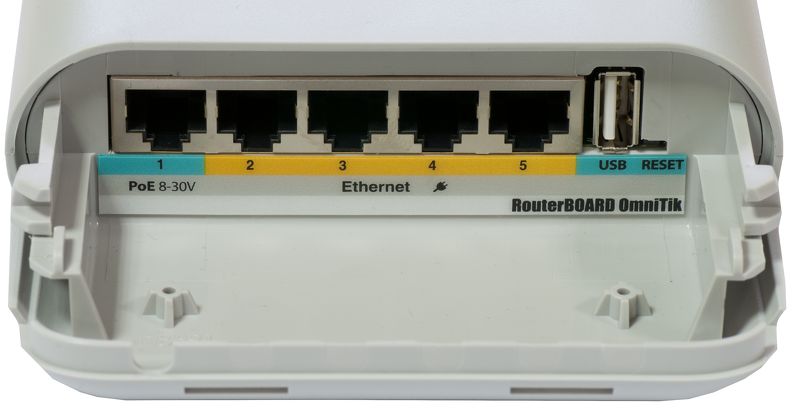

Weatherproof, durable and ready to use. It has five 10/100 Ethernet ports, PoE support and a built-in 400mW 802.11a/n wireless radio. It supports Nv2 TDMA technology with up to 200Mbit aggregate throughput.

LED signal indicators on it’s back are fully customisable, show Ethernet activity or wireless signal - or any other information from RouterOS. The USB port gives the ability to connect a 3G modem or a storage drive.

The OmniTIK UPA also features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices (like SXT-5HPnD) with the same voltage as applied to the unit. Less power adapters to worry about!
