MikroTik RBSXTR (Tariffed) SXT LTE kit / 4G kit high gain antenna (China Tariff)

  • Manufacturer: MikroTik
  • Data Sheet: Download
  • Availability: 32 In Stock    (updated live)
    32 In stock at College Station

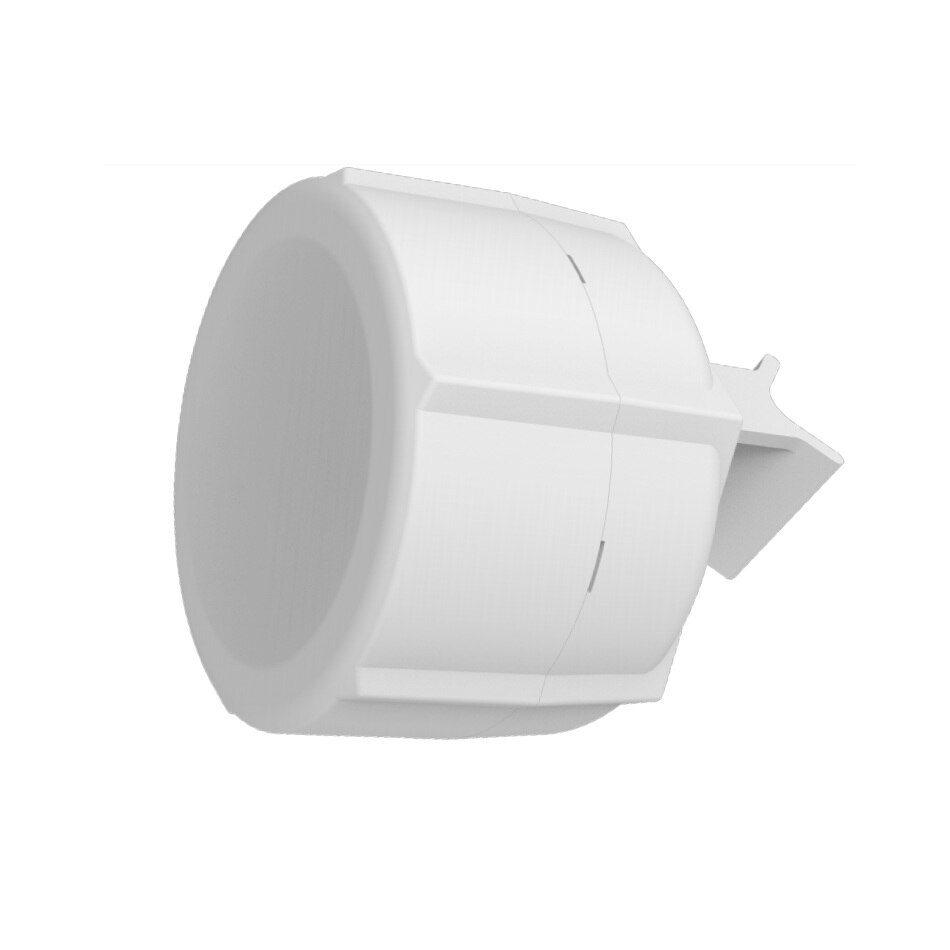

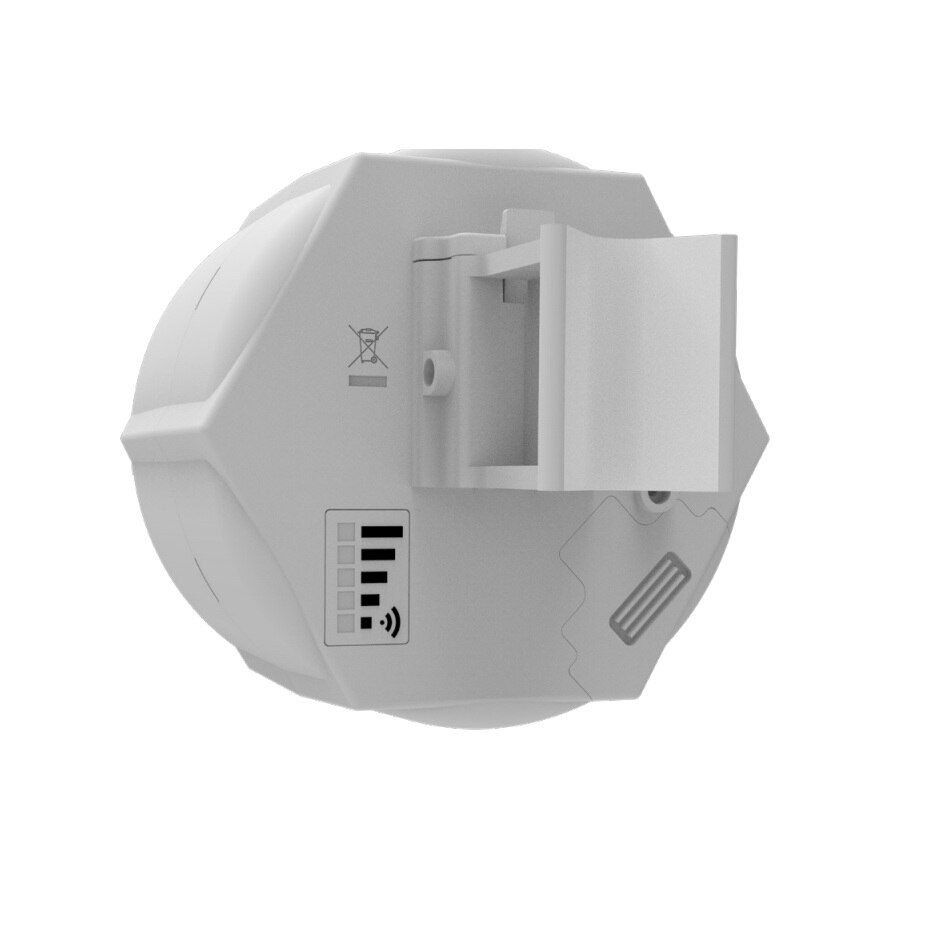

MikroTik RouterBOARD RBSXTR (Tariffed)

16 MB Flash, 10.5 dBi Gain, QCA9531 650 MHz CPU, 64GB RAM, RouterOS L3 High Gain Antenna

The SXT LTE kit is a device for remote locations that are within cellular network coverage. However, due to it’s professional LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones can’t.

In comparison with our first-generation model RBSXTLTE3-7, the SXT LTE kit is powered by a faster CPU and supports not only LTE with more speeds, but also 2G (international model only) and 3G, as well as a much wider band range. The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. Unit is shipped with a 24 V power supply but can support a full range 18-57 V and is 802.3af/at compliant.

The device has a built-in high quality Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink, as well as two Micro-SIM slots for backup link.

SXT R (RBSXTR) doesn’t include any LTE modem (free miniPCI-e slot) - antenna only version, to be used with custom LTE modem

Specifications RBSXTR

CPU QCA9531 650 MHz
Size of RAM 64 MB
Storage 16 MB Flash
10/100 Ethernet ports 2
LTE antenna gain 10.5 dBi
Antenna beam width 60°
SIM slot 2 (Micro SIM)
PoE in Yes, on Ether1
PoE out Yes, on Ether2, max out per port output (input < 30 V): 600 mA, max out per port output (input > 30 V): 400 mA max total out (A): 600 mA
Supported input voltage 18 - 57 V (Passive PoE, 802.3af/at on Ether2)
Dimensions 140 x 140 x 103 mm
Operating temperature -40°C .. +60°C tested
License level 3
Operating System RouterOS
Max Power consumption 6 W
