  • Mikrotik 2.4GHz/5GHz AP/Backbone/CPE with 802.11ac and Gigabit Ethernet, N-male connector

Mikrotik 2.4GHz/5GHz AP/Backbone/CPE with 802.11ac and Gigabit Ethernet, N-male connector

  • SKU: RBGrooveGA-52HPacn
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • User Guide: Download
  • Block Diagram: Download
  • Availability: Call for Availability This item can sometimes be sourced and shipped direct from other locations when out of stock. Email me when this product is in stock!

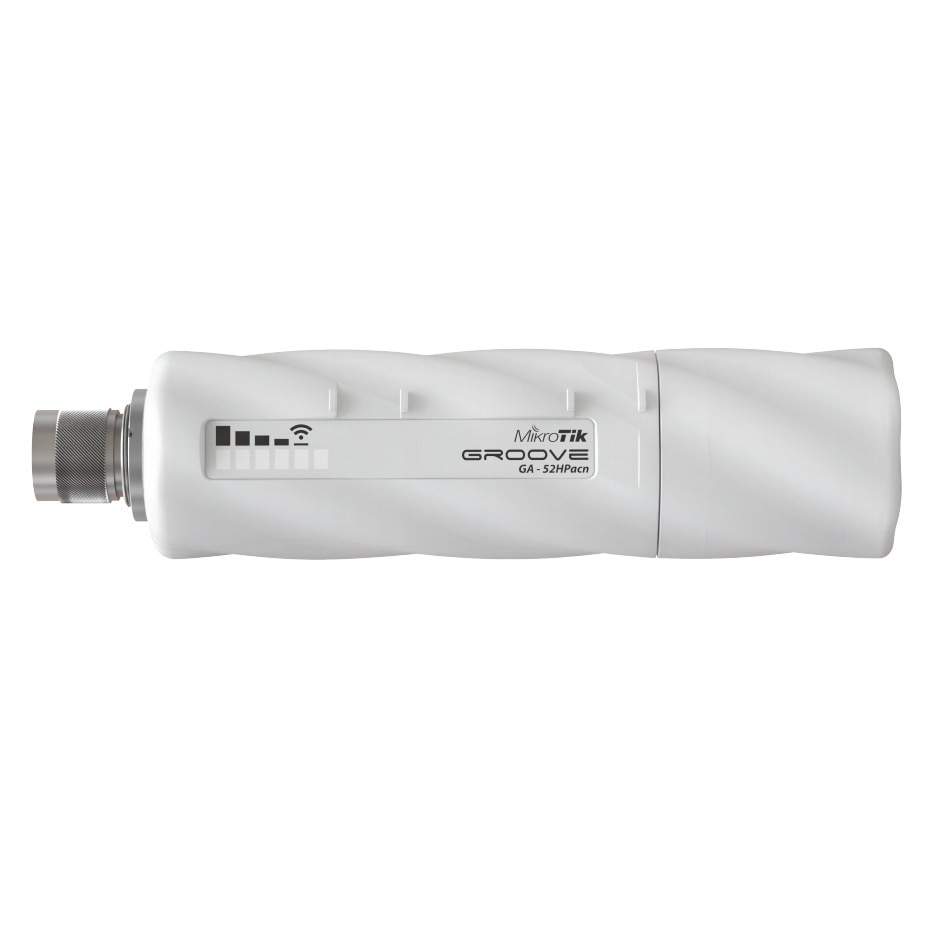

Mikrotik RouterBOARD RBGrooveGA-52HPacn

Groove 52 ac with 720MHz CPU, 64MB RAM, 1 x Gigabit LAN, 1 x built-in high power 2.4/5GHz 802.11a/b/g/n/ac wireless, RouterOS L4, plastic case, mounting loops, PoE, PSU, Omni antenna.

Our smallest outdoor series model - a fully featured wireless RouterBOARD powered by RouterOS.Weatherproof, durable and ready to use. Now with 802.11ac support, a Gigabit Ethernet port and a selectable wireless band (2.4GHz or 5GHz, up to 80 MHz wide channel).

The new Gigabit port will help you utilise the full benefit of 802.11ac high speed wireless. The Groove supports 2.4GHz, 5GHz and all the legacy wireless modes as well (802.11 b/g/n for 2.4GHz and 802.11 ac/n/a for 5GHz).

Two models are available, Groove for CPE and PtP connections, and GrooveA which also supports AP mode.

The device has a built-in N-male connector and pole attachment points, so you can attach it to anantenna directly, or use a standard antenna cable. LED signal indicators make it easy to install and align.

The Groove A (AP model) includes a Dual Band 2.4/5GHz Omni directional antenna (6dBi 2.4GHz,8dBi 5GHz), so you can use the unit right out of the box, or use your own antenna.

Specifications RBGrooveGA-52HPacn

CPU nominal frequencyQCA9556 720 MHz
Size of RAM64 MB
Storage16 MB Flash
10/100/1000 Ethernet ports1
Channel width5*/10*/20/40/80 MHz
Wireless chip modelQCA9889
PCB temperature monitorYes
Voltage monitorYes
PoE inYes
Supported input voltage11 V - 30 V (passive PoE)
Operating temperature-40 to 70° C
License level4 (RBGrooveGA version) 3 (RBGrooveG version)
Dimensions177 x 44 x 44 mm
Power consumption5 W
