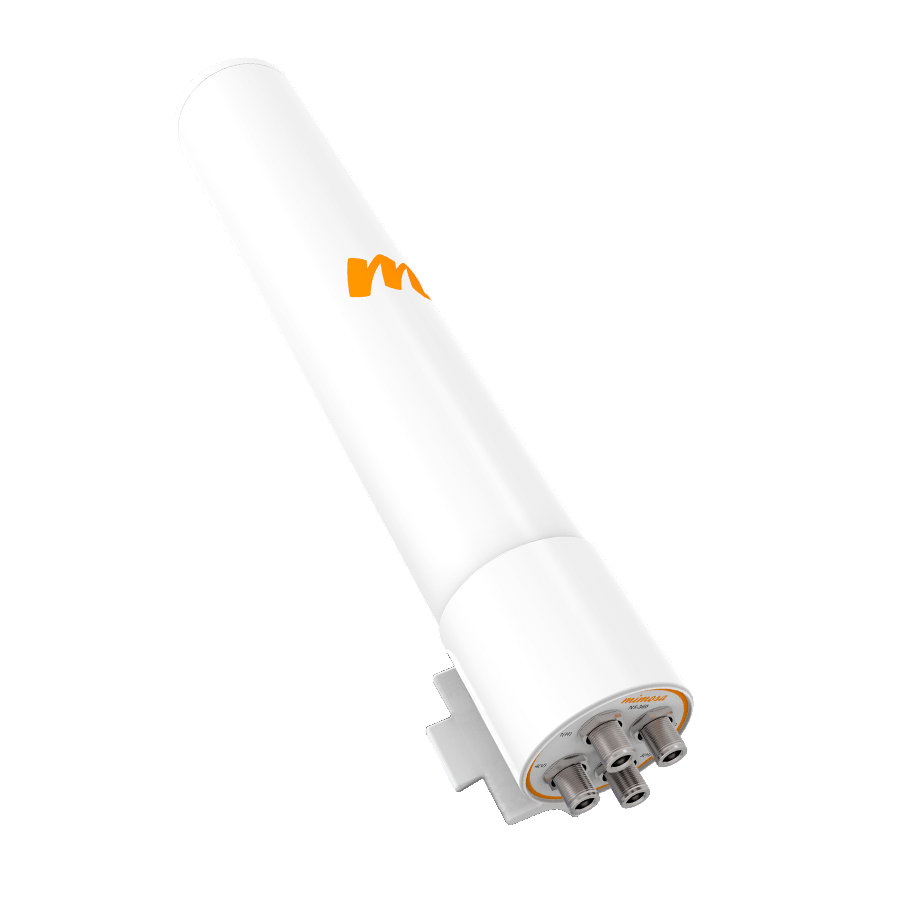

Mimosa 4-stream, beamforming, 360º antenna specifically designed for A5c access point

(0) No Reviews yet
  • SKU: N5-360
  • Manufacturer: Mimosa Networks
  • Data Sheet: Download
  • Availability: Open chat or call usEmail me when this product is in stock!
$299.00

Specifications N5-360

Antenna
Gain 15 dBi
Frequency 4.9 to 6.4 GHz
Polarization Dual H+V
Azimuth Beamwidth 360º via 4 overlapping 180º sectors
Elevation Beamwidth (3 db)
Downtilt
Cross-Polar Isolation >40 dB
Port-to-Port Isolation >25 dB
Impedance 50 Ω
Max Input Power 30 dBm
Physical
Dimensions Height: 492 mm (19.37”) including connectors Width: 80 mm (3.15”)
Weight 1.11 kg (2.45 lbs)
RF Connectors 4 N-type female
RF Connectors Position Bottom of antenna
Enclosure Characteristics Outdoor, UV stabilized, engineered polymer
Mounting Dual-pole strap feed points integrated into painted metal base; Max pole diameter is 5.7 cm (2.25”)
Wind Survivability 200 km/h (125 mph)
Wind Loading 4.77 kg @ 160 km/h (10.49 lbs @ 100 mph)
Environmental
Outdoor Ingress Protection Rating IP67
Operating Temperature -40°C to +55°C (-40°F to 131°F)
Operating Humidity 5 to 100% condensing
Operating Altitude 4,420 m (14,500’) max
Shock & Vibration ETS 300-019-2-4 class 4M5
Regulatory and Compliance
RoHS ComplianceYes

Mimosa N5-360

Expanding MicroPoP Coverage N5-360 Antenna

Introducing the industry’s first 4-stream, beamforming, 360º antenna specifically designed for Mimosa’s A5c access point. The N5-360 antenna’s unique design incorporates quad-180º overlapping antenna polarizations, extending the range of Mimosa MicroPoP deployments with 3 dB of beamforming gain. The N5-360 boosts throughput by providing balanced dual-stream coverage over 360º of azimuth. Without sacrificing performance, the N5-360 operates over a wide frequency range, from 4.9 to 6.4 GHz, supporting licensed public safety bands and other expanded frequencies, where permitted by region.

LONGER-RANGE MICROPOPS

40% coverage expansion for MicroPoP deployments, easily handling deployments to homes within 500 m in dense, last mile, suburban areas.

​WIDE-FREQUENCY RANGE

The only antenna available for use between 4.9 – 6.4 GHz, delivering incredible spectrum flexibility.

OPTIMIZED FOR 360º THROUGHPUT

Enhanced C5 and C5c subscriber speeds through new, balanced, multi-stream technology.

BEAMFORMING INNOVATION

3 dB performance enhancement in a compact design, with all new quad-180º overlapping antenna polarizations that enable range-extending, beamforming technology.
