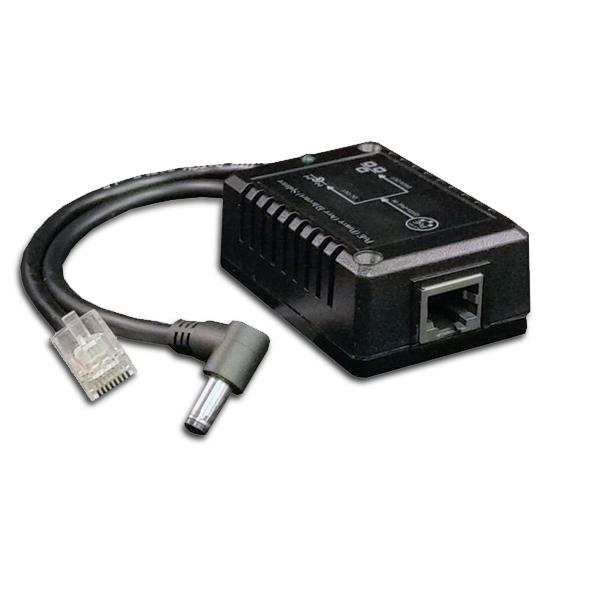

Tycon Power 48VDC 802.3af/at POE input, 5VDC @ 2.4A output, 12W, 5.5x2.1 connector
US$37.00 US$38.95
- SKU: POE-MSPLT-4805
- Manufacturer: Tycon Systems
- Data Sheet: Download
Product Information
POE-MSPLT-4805
POE Splitter / Voltage Converter
The POE-MSPLT line of dynamic splitters are compact Power over Ethernet adapters which splits the Data and PoE power onto separate output connectors and converts the active PoE (IEEE802.3af/at) input into a regulated DC output voltage. The DC output is provided on a standard 5.5mm/2.1mm barrel connector and the Data output is provided on standard RJ45 network connector, each on a dedicated 6” cable. In addition to being compatible with 10/100MB Ethernet speeds, inputs and outputs are isolated and the devices include protections for short circuit and overload.
The unique POE-MSPLT-USB provides a USB output to power smartphones and tablets from PoE devices like network switches or PoE injectors.
Specifications
Specifications POE-MSPLT-4805
Output Voltage | 5VDC |
Output Current | 2.4A |
Output Power | 12W |
DC Output Connector | 5.5mm / 2.1mm Barrel Connector |
PoE Input (RJ45) | IEEE 802.3af/at or Passive PoE (36 – 60VDC) |
Ethernet Speed | 10/100MB |
Efficiency | 75% Min |
Isolation Voltage | 1500VDC |
Isolation Resistance | 100M Ohms Minimum |
