Perfect Vision LC/UPC Duplex SM(Blue) Mini Boot Fiber Jumper (200 ft)
- SKU: PV03ACRB002VV061
$47.56
- Manufacturer: Perfect Vision
- Data Sheet: Download
Product Information
Perfect Vision PV03ACRB002VV061

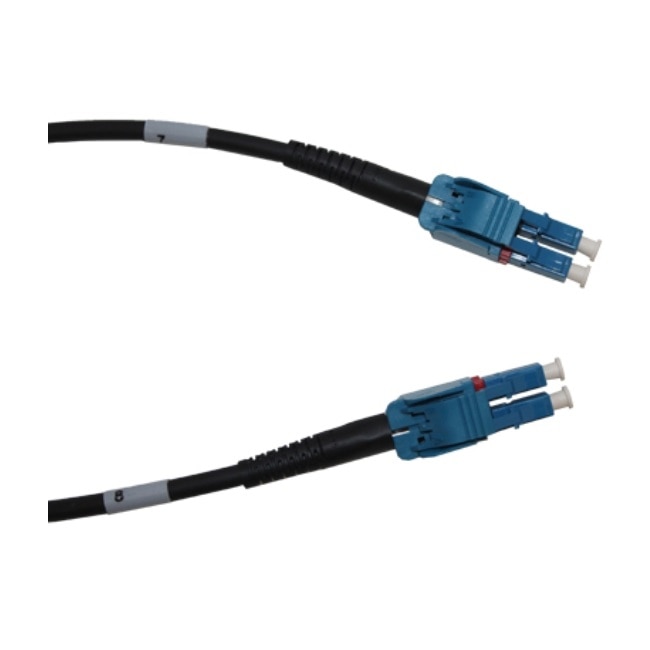

LC/UPC Duplex SM(Blue) Mini Boot Fiber Jumper (200 ft)
2 Fiber Indoor/ Outdoor Mini Duplex LC cable assembly is constructed of tight buffered optical fibers, water blocking aramid yarn, and a UV resistant black PVC outer jacket. The Mini Boot LC connector allows for connection into tight spaces and is great for use on cell towers and WISP sites at both the base and the antenna/RRH.
Specifications
Specifications PV03ACRB002VV061
| Fiber Type | Corning SMF-28 Ultra |
| Fiber Count | 2 |
| Outer Jacket Material | UV Resistant Flame Retardant PVC |
| Outer Jacket Color | Black |
| Cable Dimensions | 4.4 mm Nominal Outer Diameter |
| Cable Weight | 44 lbs/KM |
| Available Connector Type | LC Duplex |
| Mode | Singlemode |
| Housing Material | Plastic |
| Housing Color | Blue |
| Boot Color | Black |
| Ferrule Material | Ceramic |
| Polish | UPC |
| Insertion Loss, Typical | < 0.3 dB |
| Return Loss, Typical | < -55dB |
| Weight | 3.5 lbs |
| Dimension | 12.00 in. wide x 4.00 in. high x 12 in. deep |
