Perfect Vision Multi Mode OM3 Mini LC Tower Jumper (150 ft)
US$55.21
- SKU: PV03DCRB002VV046
- Manufacturer: Perfect Vision
- Data Sheet: Download
Product Information
Perfect Vision PV03DCRB002VV046

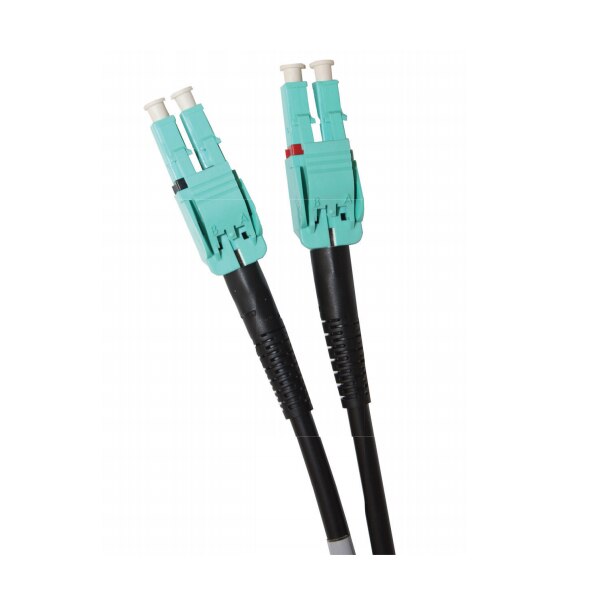

Multi Mode OM3 Mini LC Tower Jumper (150 ft)
2 Fiber Indoor/ Outdoor Mini Duplex LC cable assembly is constructed of tight buffered optical fibers, water blocking aramid yarn, and a UV resistant black PVC outer jacket. The Mini Boot LC connector allows for connection into tight spaces and is great for use on cell towers and WISP sites at both the base and the antenna/RRH.
Specifications
Specifications PV03DCRB002VV046
Fiber Type | OM3 ClearCurve |
Fiber Count | 2 |
Outer Jacket Material | UV Resistant Flame Retardant PVC |
Outer Jacket Color | Black |
Cable Dimensions | 4.4 mm Nominal Outer Diameter |
Cable Weight | 44 lbs/KM |
Available Connector Type | LC Duplex |
Mode | Multimode OM3 |
Housing Material | Plastic |
Housing Color | Aqua |
Boot Color | Black |
Ferrule Material | Ceramic |
Polish | UPC |
Insertion Loss, Typical | < 0.35 dB |
Weight | 2.5 lbs |
Dimension | 12.00 in. wide x 4.00 in. high x 12 in. deep |
