Perfect Vision CAT 5e outdoor Shielded Dry Gel Tape, PVC, FTP, 1000' RIB
US$179.76
- SKU: PVCAT5GFDT-BLK-RIB
- Manufacturer: Perfect Vision
- Data Sheet: Download
Product Information
Perfect Vision PVCAT5GFDT-BLK-RIB

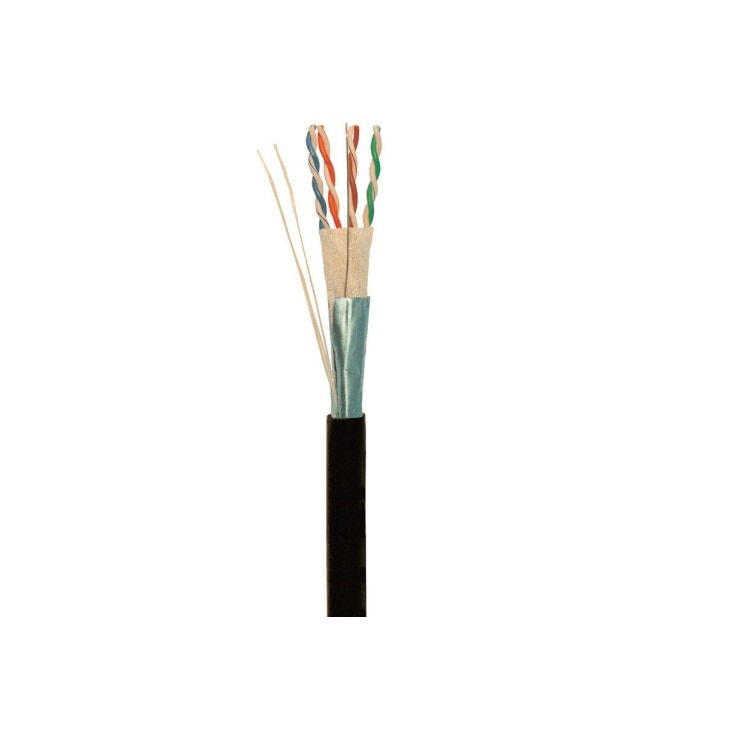

CAT 5e outdoor Shielded Dry Gel Tape, PVC, FTP, 1000' RIB
An indoor/outdoor Category 5e cable.
Features:
- PVC jacket.
- Dry Gel Tape construction that swells and blocks water migration.
- Shielded
Specifications
Specifications PVCAT5GFDT-BLK-RIB
| Number of Pairs | 4 |
| Total Number of Conductors | 8 |
| AWG | 24 (0.51 mm) |
| Conductor Stranding | Solid |
| Conductor Material | Bare copper |
| Insulation Material | HDPE (1.02 mm) |
| Outer Jacket OD | 0.268 in (6.8 mm) |
| Outer Jacket Material | Black, UV resistant PVC |
| Outer Jacket Ripcord | Yes |
| Shipping Weight | 34 lb/1000 ft (50.6 kg/km) |
| Max Recommended Pulling Tension | 35 lb (16 kg) |
| Min Bend Radius (Install) | 1.0 in (2.5 cm) |
| Operating Temperature Range | −40 °C to 75 °C |
| Sequential Marking | O ft to 1000 ft (0 m to 35 m) |
| Reference Standard | ISO/IEC 11801, TIA/EIA-568-C.2 |
| Packaging Options | RIB, EnviroReel, EnviroReel Reload |
| UL/CSA/ETL | ETL CMG |
| Wall Blocking Material | Dry gel swellable tape |
| Shield Tape | Aluminum tape |
| Drain Wire | 26 AWG solid TC |
| ELECTRICAL CHARACTERISTICS | |
| Impedance 1 MHz to 100 MHz | 100 Q ± 15 Q |
| Nominal Mutual Capacitance @ 1 KHz | 15 pF/ft |
| Maximum Capacitance Unbalance | 330 pF/100 m |
| Nominal Velocity of Propagation | 70% |
| Maximum Delay (ns/100 m) @ 100 MHz | 538 ns |
| Maximum Delay Skew | ≤ 45 ns/100 m |
| Maximum DCR Unbalance @ 20 °C | ≤ 5% |
| Maximum Conductor DC Resistance @ 20 °C Certified to 100 MHz, Swept to 350 MHz | 9.38 0/100 m |
