Phantom 10ft Cat6a UTP 10GB Ultra-Thin Patch Cable (Blue)
- SKU: CAT6AUT-10BL
- Manufacturer:
- Data Sheet: Download
Product Information
Phantom CAT6AUT-10BL
10ft Cat6a UTP 10GB Ultra-Thin Patch Cable (Blue)

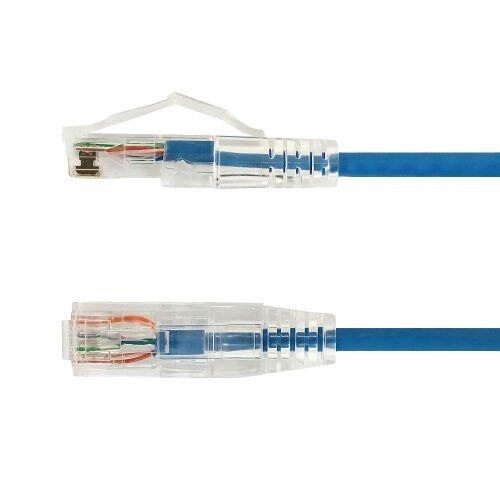

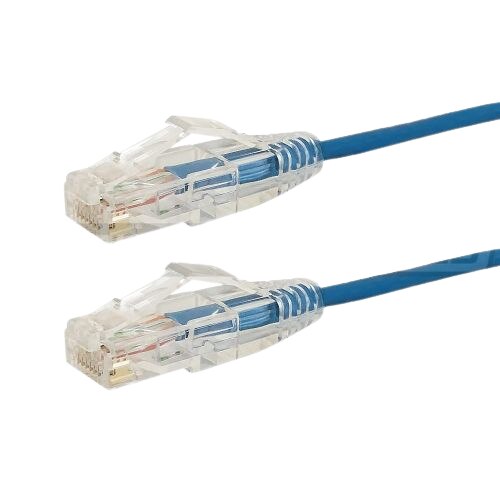

This Cat6a Ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for 10Gb Ethernet network connections such as patch panels, switches, computers and routers. Its ultra-thin cable design works perfectly in high density server room applications. These cables are Fluke® Cat6a patch cable certified and come with an individual test report. The cable jacket is also CMR (riser) fire rated.
100% Pure Copper
This cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime.
50 Micron Gold Plated Connectors
This non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time.
Performance in High Density Applications.
This ultra slim cable is 60% thinner than the regular CAT6A cable which makes it the perfect solution for high density server rooms and data centers. It is also light weight, flexible and can be easily routed.
Fluke® Patch Cable Certified
Our cables are 100% tested to pass a Fluke® CAT6A patch cable test, and comes with a printed test report.
Specifications
Specifications CAT6AUT-10BL
Connector Plating | Gold Plated 50 Micron |
Cable Diameter | 3.6mm |
Wire Gauge | 28AWG Stranded |
Shielding | UTP (Unshielded) |
Pairs | 4 |
Fire Rating | CMR (FT4 Riser Rated) |
Strain Relief | Assembled, Clear Boot |
Jacket Type | PVC |
Connectors | |
Connector A | RJ45 Long Body Male |
Connector B | RJ45 Long Body Male |
Performance | |
Fluke® CAT6A Patch Cable Test | Yes |
Speed | 10Gb |
Approvals | |
c(UL)us | Yes - Cable |
ISO/IEC 11801 | Yes |
Environmental | |
RoHS | Yes |
Reach | Yes |
Conflict Materials | Yes |
Warranty | Limited Lifetime |
Weight | 0.140 lbs |
