Powerwerx Automatic Backup Power Selector for Redundancy, 70 Amps

Powerwerx BPS702

Automatic Backup Power Selector for Redundancy, 70 Amps

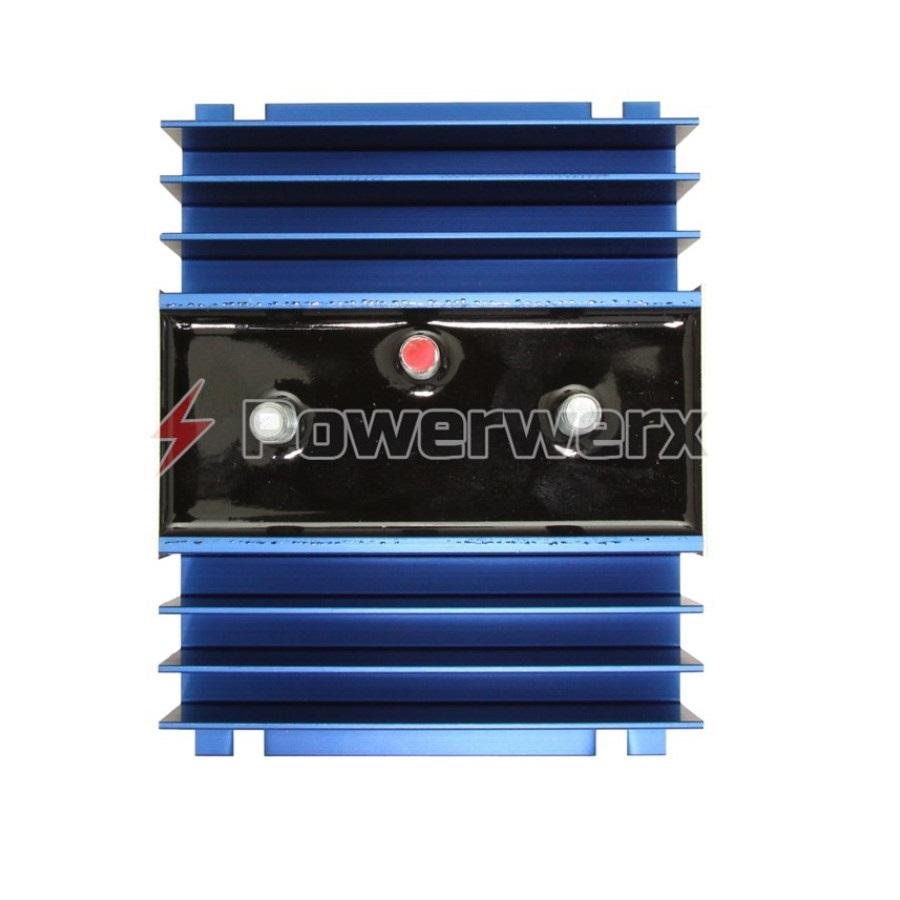

The BPS702 (Backup Power Selector) provides a simple, solid state solution to add battery back-up to your base station power supply. This unit features two DC power inputs and a single output to your critical electronics. The BPS702 will take the highest voltage input source (like a power supply) and pass that through to the units output. If the #1 input source ever fails or you have a power failure, the BPS will automatically switch to the second input (usually a battery) for seamless redundant operation.

The BPS702 may be used on 12-48 VDC systems, provided both input power sources are the same nominal voltages (+/- 6 VDC). The BPS702 is rated for loads up to 70 amps on 12-48 VDC systems. This unit includes rugged construction with heavy duty wiring studs and potted epoxy components in an anodized aluminum case.

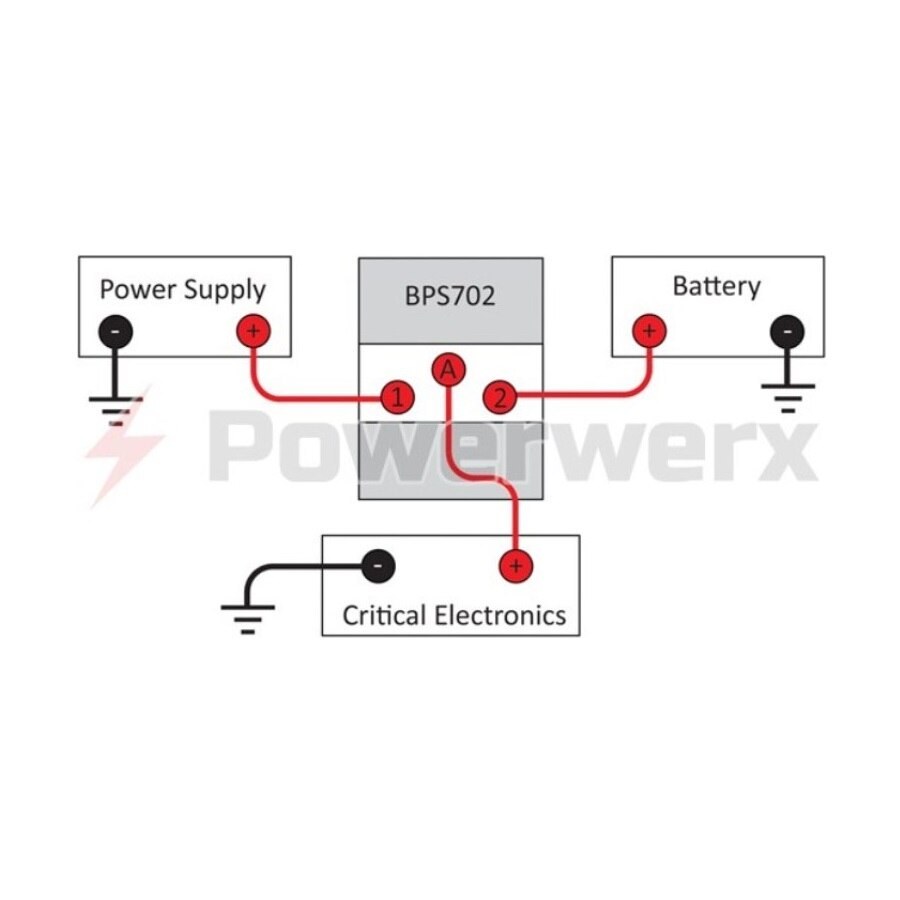

Typical Redundant Installations

Option 1

• Terminal #1 = Power Supply (+) IN
• Terminal #2 = Battery (+) IN
• Terminal "A" = Output to Electronics (+)

Option 2

• Terminal #1 = Power Supply #1 (+) IN
• Terminal #2 = Power Supply #2 (+) IN
• Terminal "A" = Output to Electronics (+)

Option 3

• Terminal #1 = Battery "1" (+) IN
• Terminal #2 = Battery "2" (+) IN
• Terminal "A" = Output to Electronics (+)
