Poynting 5.8GHz 19dBi iPoynt Antenna Enclosure

(0)No Reviews yet
  • SKU: WLAN-A0044
  • Manufacturer: Poynting
  • Data Sheet: Download
118 in stock
College Station
118 In stock

Product Information

Poynting WLAN-A0044

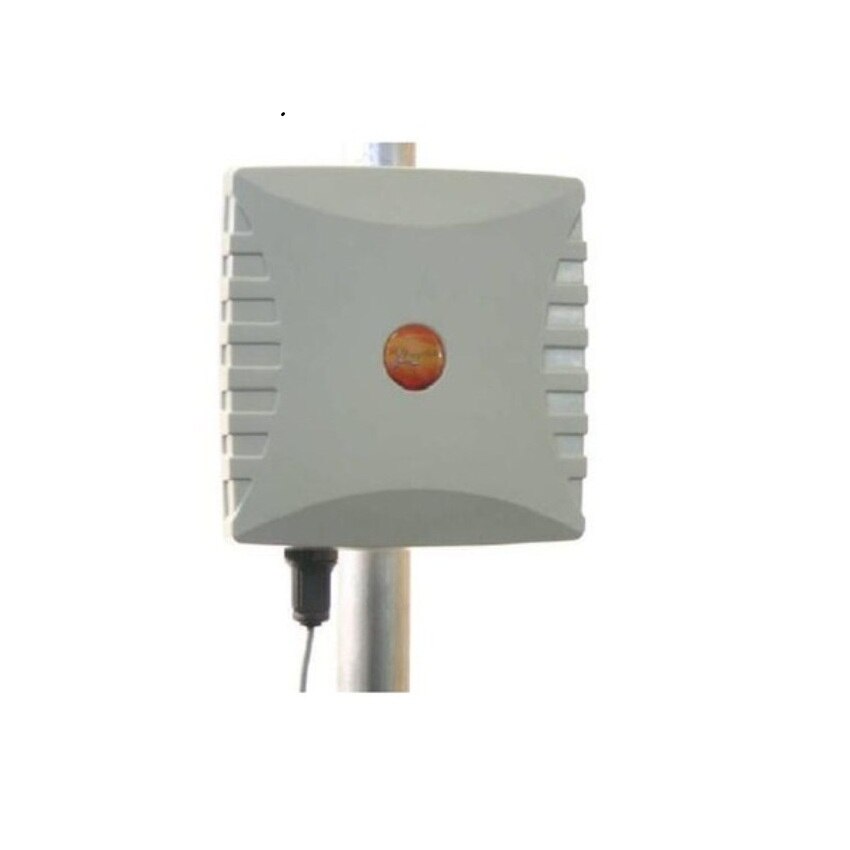

Poynting 5.8GHz 19db iPoynt Antenna Enclosure

WLAN-A0044 is a compact weatherproof outdoor enclosure featuring a wide band 5GHz panel antenna operating from 5.1 to 5.9 GHz with a steady gain of 19dBi across the band and is the ideal CPE antenna-enclosure for 5GHz WiFi and WiMAX systems.

The product features a ruggedised, watertight ethernet disconnect gland, which allows greatly simplifies the installation process by allowing the installer to attach their own Ethernet CAT5 cable to the exterior of the enclosure after it has been mounted. In addition, various built-in fixed mounting pillars allow mounting of the most popular electronics whilst adhesive mounting pillars are provided for added flexibility. Knock-outs are also included for two N-connectors on the bottom of the enclosure.

Protection from static and surges is provided in the form a DC-shorted antenna as well as an integrated earthing lug built into the enclosure that allows the internal electronics to optionally be earthed to the mounting structure, e.g. pole or wall.

Mounting if the product is accomplished via a compact, cast aluminium pole/wall mounting bracket with individual elevation and azimuth adjustment.

Specifications

Specifications WLAN-A0044

Electrical

Gain (max)19 dBi (+-0.5 dB)
Gain (min over the band)18 dBi (+-0.5 dB)
Frequency5100 - 5900 MHz
VSWR< 2.0:1
Feed power handling10 W
E-plane 3 dB beamwidth 15° (± 5°)
H-plane 3 dB beamwidth 15° (± 5°)
Front to back (F/B ratio)27 dB (± 3 dB)
Nominal input impedance50 Ohm
PolarisationLinear

Environmental

Temperature Range- 20° C to +70° C
Wind Loading160 km/h
Shock40G at 10 msec
Thermal Shock- 20° C to +70° C : 10 cycles
Water Ingress RatingIP67 (NEMA 4X)

Mechanical

Dimensions (l x w x d)235 mm x 210 mm x 55 mm
Weight1.0 kg
MountingCast aluminium bracket
