Poynting 5.8GHz 20dBi Dual POL BridgePoynt Antenna Enclosure

(0)No Reviews yet
  • SKU: WLAN-A0043 (AT-20AE-58D)
  • Manufacturer: Poynting
  • Data Sheet: Download
25 in stock
College Station
25 In stock

Product Information

Poynting WLAN-A0043

Poynting 5.8GHz 20db Dual POL BridgePoynt Antenna Enclosure

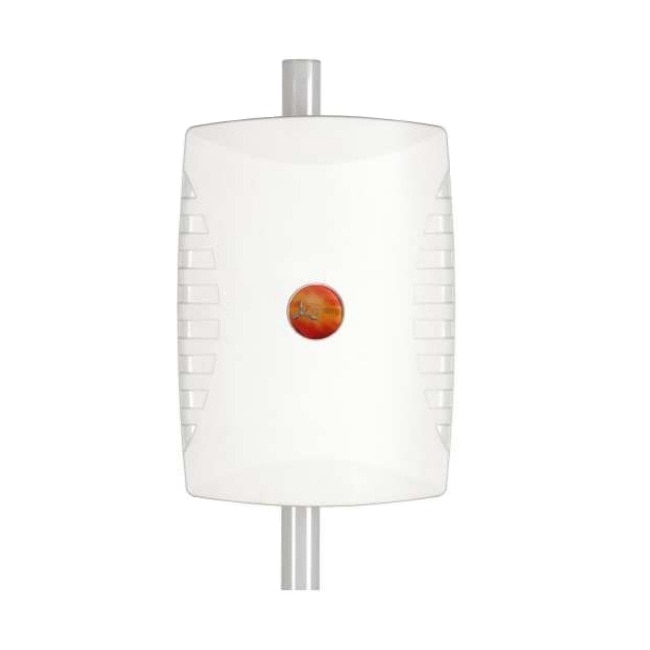

Poynting's WLAN-A0043 is an outdoor enclosure with integrated 5GHz, dual polarized antennas (two integrated antennas: one vertically polarized and one horizontally polarized both with the same gain).

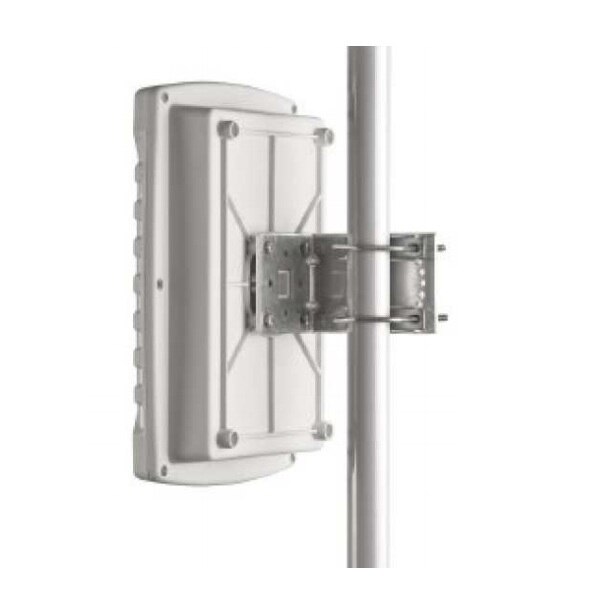

It also features a waterproof ethernet gland with an integrated RJ45 connector for direct clip-on and clip-off of your ethernet cable without having to open the enclosure. Six movable posts with self tapping screws and double-sided tape are provided to mount your electronics and a mast mounting bracket with elevation tilt and azimuth adjustment is also included.

For protection from surges and static buildup, the product features a grounding lug to ground internally mounted electronics to the mounting structure if desired and the internal antenna antennas are both DC shorted.

Specifications

Specifications WLAN-A0043

Electrical

Gain (max)20 dBi (+-0.5 dB)
Gain (min over the band)18 dBi (+-0.5 dB)
Frequency5150 – 6000 MHz
VSWR< 2.0:1
Feed power handling 10 W
Elevation 3 dB beamwidth14° (± 1°)
Azimuth 3 dB beamwidth10° (± 1°)
Mutual isolation>35 dB
Front to back (F/B ratio)>20 dB
Nominal input impedance50 Ohm
PolarisationDual antennas linear (Vertical & Horizontal)

Environmental

Wind Loading160 km/h
Temperature Range- 20° C to +70° C
Shock40G at 10 msec
Thermal Shock- 20° C to +70° C : 10 cycles
Water Ingress RatingIP65 (NEMA 4X)

Mechanical

Dimensions (l x w x d)364 mm x 258 mm x 98 mm
Weight2.44 kg
ColourPantone Cool Grey 1C
MountingStainless steel brackets for up to 50 mm poles
