Poynting 5dBi GSM 900/GSM1800/UMTS/LTE Omno
- SKU: A-OMNI-0121 (AT-5OM-GSM)
- Manufacturer: Poynting
- Data Sheet: Download
Product Information
Poynting AT-5OM-GSM
Poynting 5db GSM 900/GSM1800/UMTS/LTE OMNI

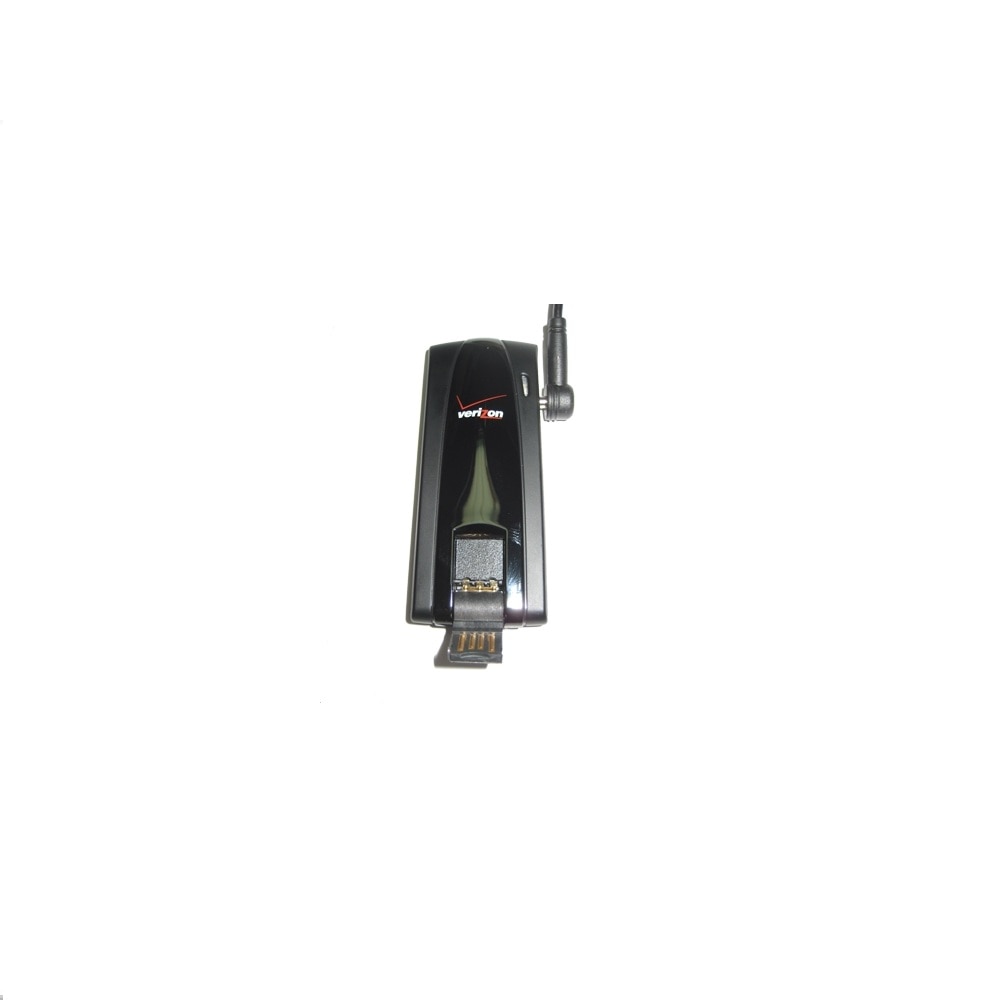

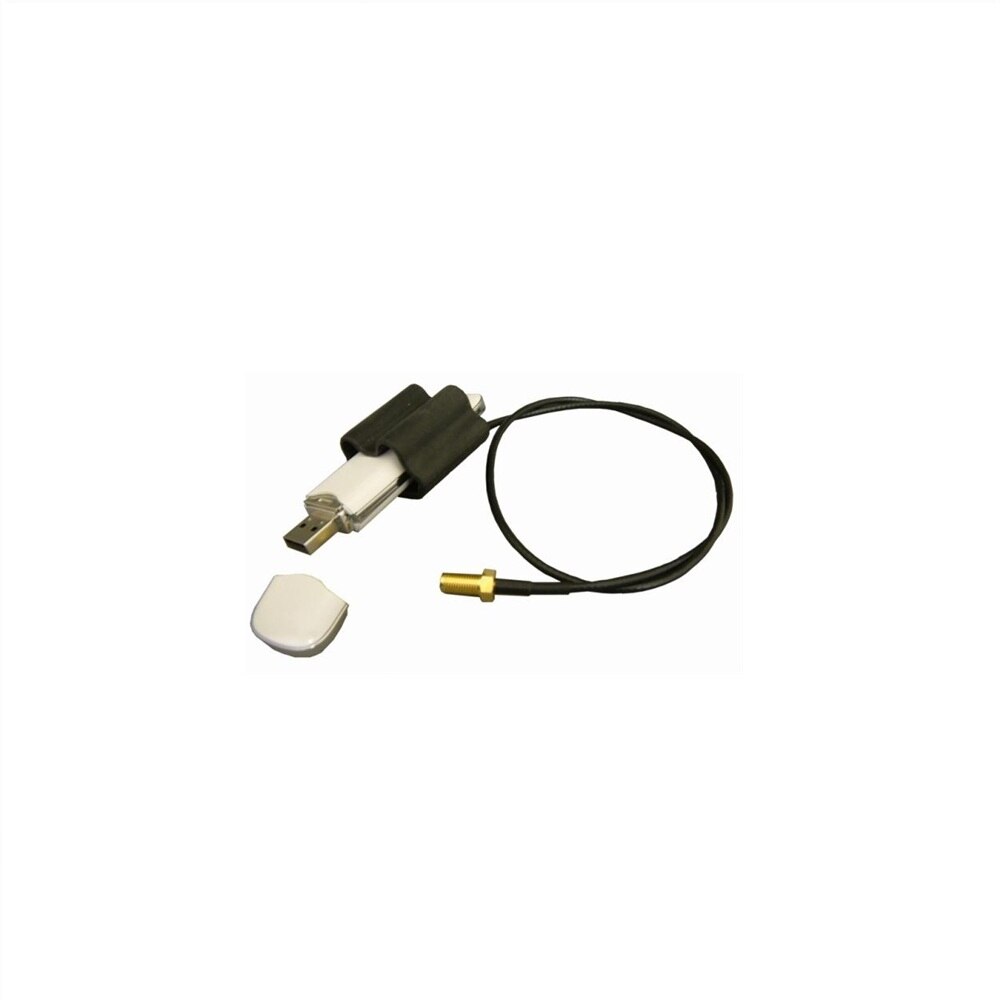

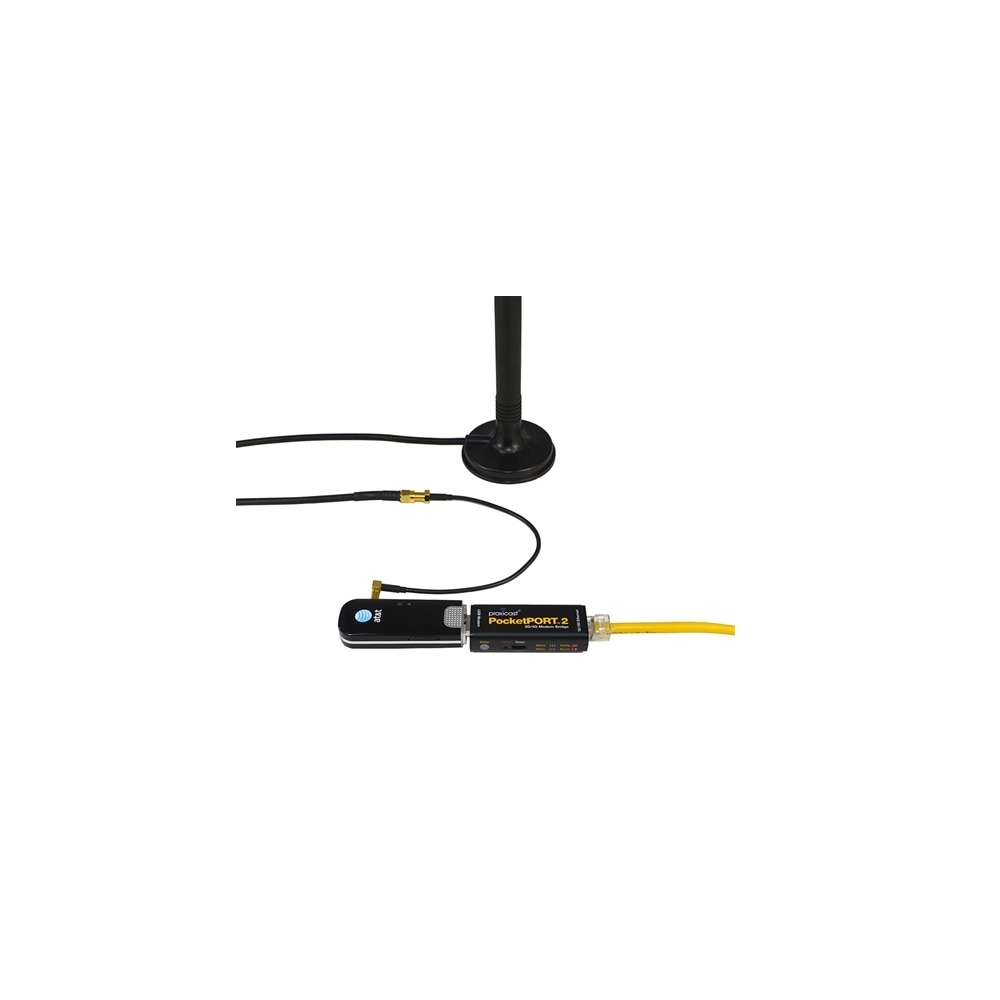

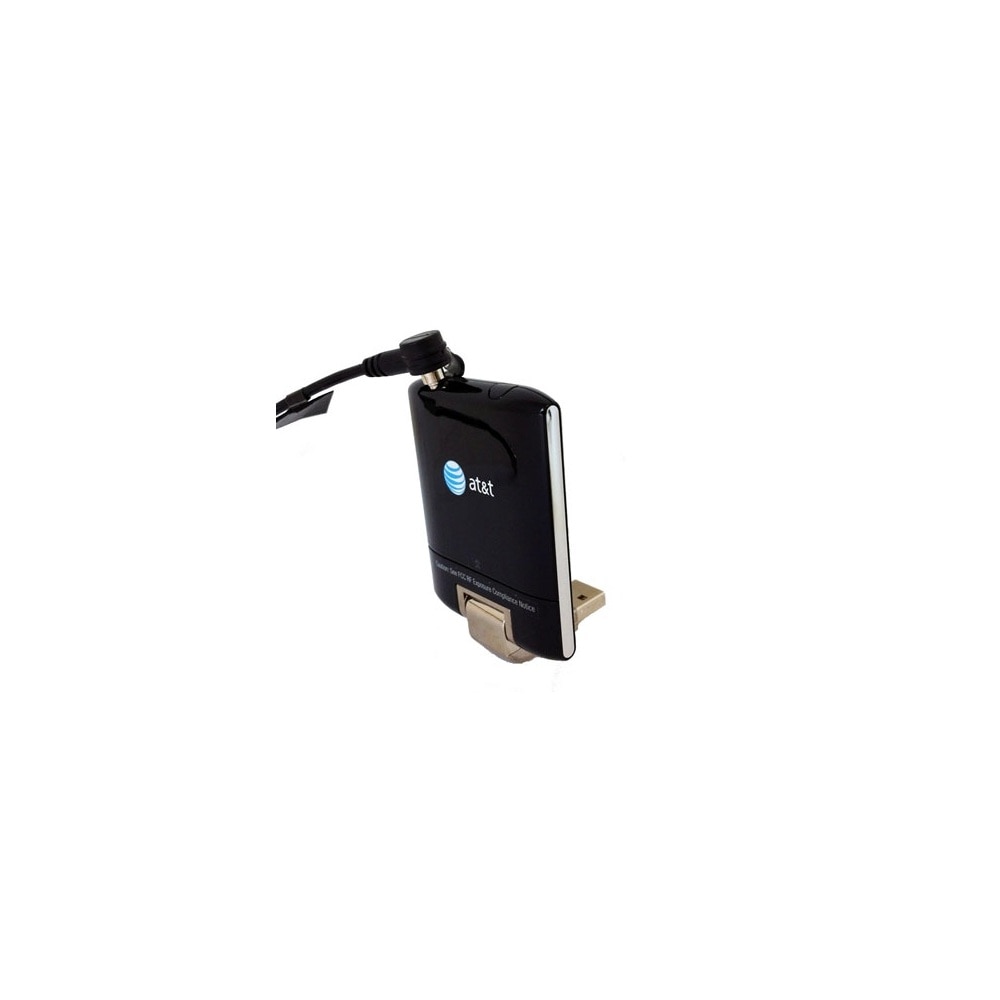

This medium gain omni-directional antenna covers the GSM900/GSM1800/UMTS bands. Suitable for various communications systems including GSM and 3G/HSPA mobile phones and data-modems. Includes an 8m (HDF195) cable with an SMA(m) plug, wall mount bracket. The antenna can be connected to various 3G routers directly or via a pigtail. It can also be connected to virtually any 3G USB stick using a 3G universal adapter (ADPT-026) or to any cellular phone (ADPT-024).
This antenna is ideal in areas where a reasonable GSM/3G can be obtained outside the building, yet the signal is unstable indoors. The OMNI-A0121 is easy to install as it does not require any further alignment towards a base station. Due to its omni-directional nature, it can pick up signals from various base stations, and therefore is ideal if congestion in base-station traffic occurs.
Specifications
Specifications AT-5OM-GSM
Electrical
Frequency (MHz) | 860-980 |
Gain (max)* | 2.8 dBi (+-0.5 dB) |
Gain (min over the band)* | 0 dBi (+-0.5dB) |
VSWR | < 2.5:1 |
E-plane 3 dB beamwidth | 40° (± 5°) |
H-plane 3 dB beamwidth | 360° |
H-Plane Ripple (max) | 4 dB |
Feed power handling | 10 W |
Nominal input impedance | 50 Ohm |
Polarisation | Linear |
Environmental
Wind Survival | 160 km/h |
Temperature Range | - 20° C to +70° C |
Shock | 40G at 10 msec |
Thermal Shock | - 20° C to +70° C : 10 cycles |
Water Ingress Rating | IP65 (NEMA 4X) |
Mechanical
Dimensions (l x w x d) | 550mm x 50mm x 50 mm |
Weight | 0.3 kg |
Mounting | Wall Mount Anchors |
