Primus Cable CAT5E Plenum Bulk Ethernet Cable, CMP, Shielded Solid Copper 24 AWG (1000ft)
- SKU: C5PSH-2052BL
- Manufacturer: Primus Cable
- Data Sheet: Download
Product Information
CAT5E Plenum Bulk Ethernet Cable, CMP, Shielded Solid Copper 24 AWG 1000FT
CAT5E Plenum Cable, Shielded Ethernet
Primus Cable's CAT 5E Shielded CMP Rated Plenum Cable is ideal for your shielded indoor voice, data, video and security networking applications. Whether you are wiring your home, office or entire campus, we have the network solution that is right for you.

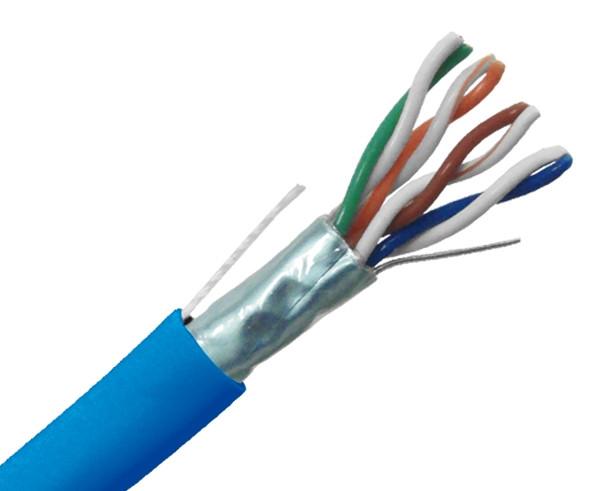

This ETL Listed CAT 5E Shielded CMP Rated Plenum Cable is the perfect fit for reliable installations where the cable will be used indoors. This cable's 8 conductors (4-Pairs) are solid bare copper with a FEP insulation, over all foil shielded (F/UTP) and a Low Smoke FR-PVC CMP rated RoHS Compliant jacket. Additionally, this cable has a tinned copper drain wire which grounds the electricity after it has been terminated. This drain wire is required on all shielded cable in order to prevent signal loss, cross-talk, and other performance issues. Our Shielded Category 5E CMP Rated Plenum Cable is designed for indoor LAN applications, making it the ideal solution for indoor installation runs that require cable to be installed in plenum areas.
Why Shielded Cable?
The foil shielding protects the signal from outside EMI’s and also keeps the signal from emitting its own EMI. For example, a hospital has many electronic devices that emit Electro Magnetic Interference so you would want to use a shielded cable to prevent EMI from both entering and exiting your cable.
Features:
- High-Performance Data Communications Cable For Noisy Environments
- Suitable For 350MHz High Speed Data Applications, Gigabit Ethernet, Fast Ethernet And 155Mbps TP-PMD CDDI
- Category-5E Foil Shielded Twisted Pair (F/UTP) Cable
- 4-pair, Easily Identified Color-Striped Pairs
- 24AWG Solid Bare Copper Conductors
- Excellent Attenuation And Crosstalk Characteristics
- Sequential Foot Markers On Jacket
- Exceeds EIA/TIA 568 B.2-1, CSA And ISO/IEC 11801 Specifications
- Designed For Indoor Installations
- Flame Retardant Jacket, (FR-PVC)
- ETL Verified

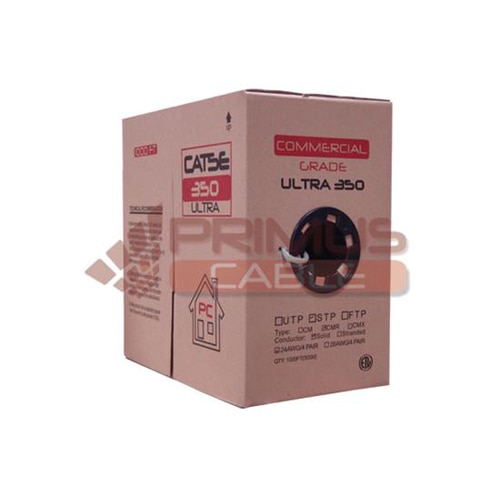

- Supplied In 1000™ Pull Boxes
- Category 5E CMP Rated Cable
- Designed For Indoor Plenum Rated Installations
- RoHS Compliant
Specifications
Specifications C5PSH-2052BL
Physical Characteristics | |
Conductor Size | 24AWG |
Conductor Material | Solid Bare Copper |
Insulation Material | FEP |
Insulation Diameter | 0.91 ± 0.01mm |
Number of Conductors | 8 Conductors |
Number of Pairs | 4 Pairs |
Outer Shield Material | Aluminum Foil |
Drain Wire | Yes |
Outer Jacket Material | Low Smoke FR-PVC |
Outer Jacket Diameter | 5.70 ± 0.20mm |
Outer Jacket Rip Cord | Yes |
