Primus Cable Shielded RJ45 Plugs for CAT6, CAT6A, and CAT7 Cable

(0)No Reviews yet
  • SKU: CN1-022-8C6AS
  • Manufacturer: Primus Cable
  • Data Sheet: Download
197 in stock
College Station
197 In stock

Product Information

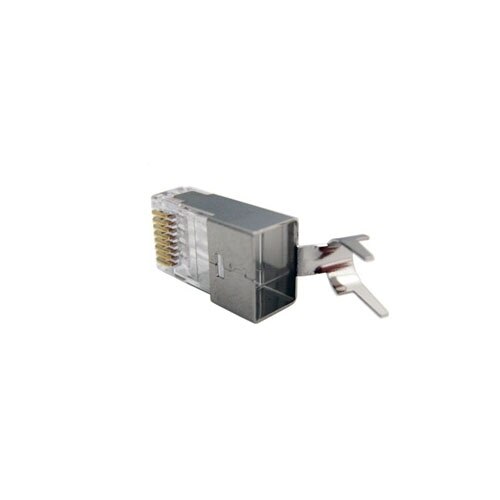

Shielded RJ45 Plugs for CAT6, CAT6A, and CAT7 Cable

Primus Cable believes in great networking products—they’re the key to building a great network. We hold our CAT 6 RJ45 connectors to high standards with our customer and their network in mind. Even with something as small as an RJ45 connector, we get it right—reliable and blazing fast.

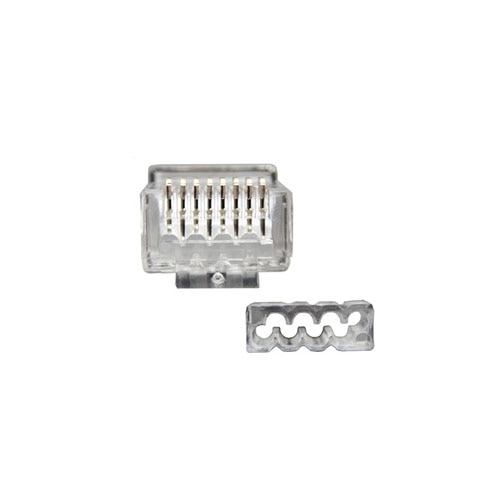

These RJ45 connectors are designed to work specifically with CAT 6, CAT 6A, and CAT 7 cable. These RJ45 connectors are gold plated and work with solid and stranded cable. They have 8 pins and 8 conductors (8p8c). The inserts are also included—they’re part of the design. The wire alignment insert provides an efficient cable assembly. Over time this will save time and money on any job.

Also featured on this RJ45 connector is a slim strain relief and shielding. The slim strain relief prevents snag tears and maintains the quality of the cable. Shielding your network prevents signal loss and electromagnetic interference.


Specifications CN1-022-8C6AS

 Electrical Specifications
UL Applications:250 Volts ACMax., at 2 AMPS
Dielectric with Standing Voltage:500 Volts AC
Insulation Resistance:100 M Ω
Termination:Resistance 20m Ω Max After Environmental Testing
Mechanical Specifications
Cable-to-Plug Tensile Strength:20 Pound Min.
Durability:200 Matting Cycles
Physical Characteristics
Housing:Polycarbonate, UL94V-0
Contact Blade:Copper Alloy
Conductor: Stranded & Solid Wire, 22 - 26 AWG (Plug Can Be Used For Wire OD’s Of Under 1.5 mm & Cable Out Jacket OD Should Be Under 8.0 mm)
Gold Plating:50µ”
Shielded Shell:Copper Alloy
