Primus Cable Keystone Jack - CAT5E, MIG+, Data Grade, P-fit High Density, 90 Degree, RJ45, 8x8

(0) No Reviews yet
  • SKU: K52-159/L90/RD
  • Manufacturer: ISP Supplies
  • Data Sheet: Download
  • Availability: Call for Inventory Status Email me when this product is in stock!
$2.69

Specifications K52-159/L90/RD

Jack Construction

Jack HousingABS High-Impact UL94V-0 Thermoplastic
Spring WireBronze Gold Plated Over Nickel
IDC HousingPolycarbonate High-Impact UL94V-0
IDC Contacts0.4mm Phosphor Bronze, 200u” Tin Over 50u Nickel
IDC Wire RangeSolid 24 AWG - 26 AWG
Number of Prongs8
Number of Conductors8
Dimensions
Width14.60 mm
Height:19.50 mm

Electrical Characteristics

Insulation Resistance500MΩ
Dielectric Withstanding Voltage1000v
DC Current Rating1.5 amps
DC Resistance0.1Ω
Contact Resistance20Ω
Minimum Temperature-10°C
Maximum Temperature60°C
Standard Verification
TIA/EIA-568-B.2-1
UL 1863
UL Certifi ed Cat 5E
ACA Compliant (N13181)
RoHS Complaint

Primus Cable K52-159/L90/RD

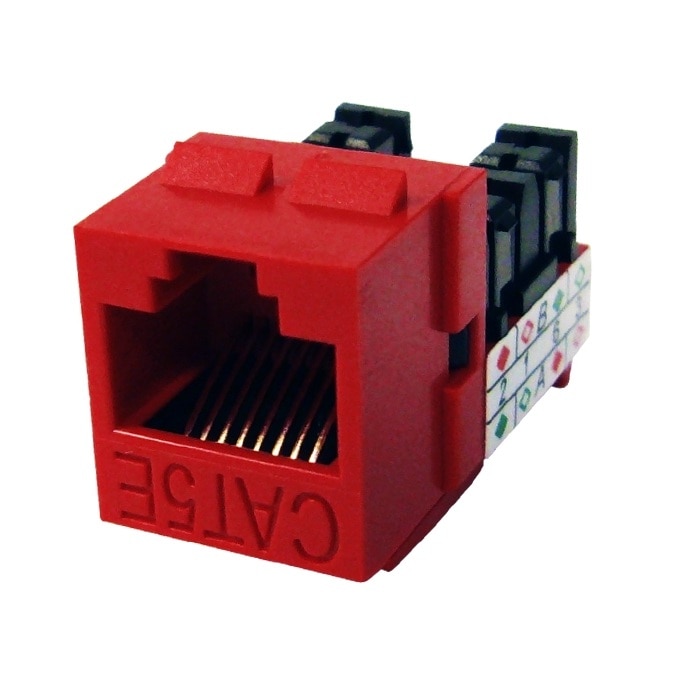

Keystone Jack - CAT5E, MIG+, Data Grade, P-fit High Density, 90 Degree, RJ45, 8x8 - Red

Primus Cable's CAT5E MIG+ line is our premier line of data jacks. The MIG+ CAT5E Keystone Jacks are engineered with Press-fit PCB technology, phosphor bronze IDC contacts, gold plated prongs, and a fire-retardant plastic housing. The MIG+ line of keystone jacks were engineered to simplify the termination helping you save time and money.

Because we take great pride in our quality control procedures and our commitment to quality our MIG+ CAT5E Keystone Jack's line is subject to ETL standards and is ETL Verified and UL Compliant. Primus Cable's MIG+ Jacks meet all requirements for TIA/EIA-568 and are inspected and tested to comply with stringent transmissions and safety standards.

Primus Cable elected to use Press-Fit technology because of its superior connectivity. The connections are solder-less and lead free which make the connections more reliable and durable.

What is Press-Fit?

Press-Fit technology is able to complete the insertion of the IDC and RJ-45 contacts into a PTH (Plated-Through Hole) on a PCB (Printed Circuit Board). The connection is established without using solder.

Why Press-Fit?

Press-Fit technology connections avoid quality problems such as cold spots, voids, splatters, and cracks. Press-Fit connections are highly reliable than soldering.

Press-Fit Technology is RoHS Compliant

Since Press-Fit technology does not use solder, it uses no lead (Pb) and there is no extra heat on the connections, it makes the connections clean, reliable, and meets RoHS standards.
