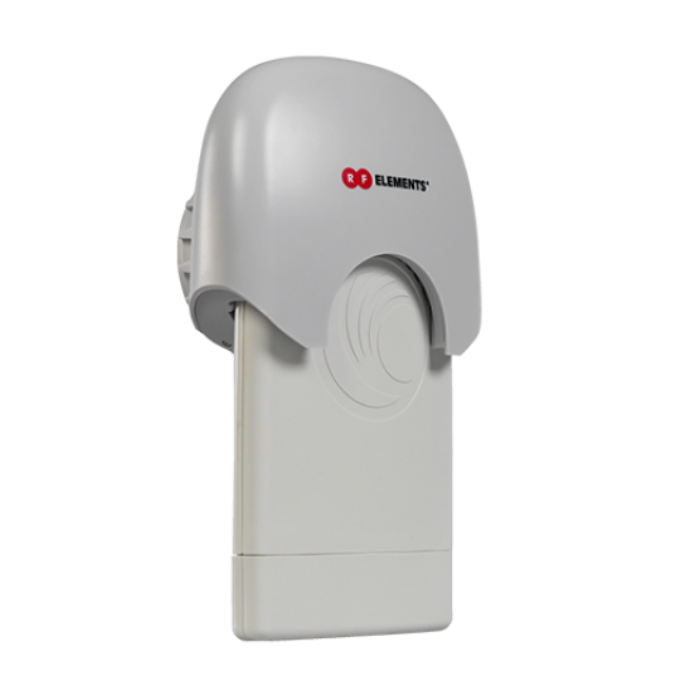

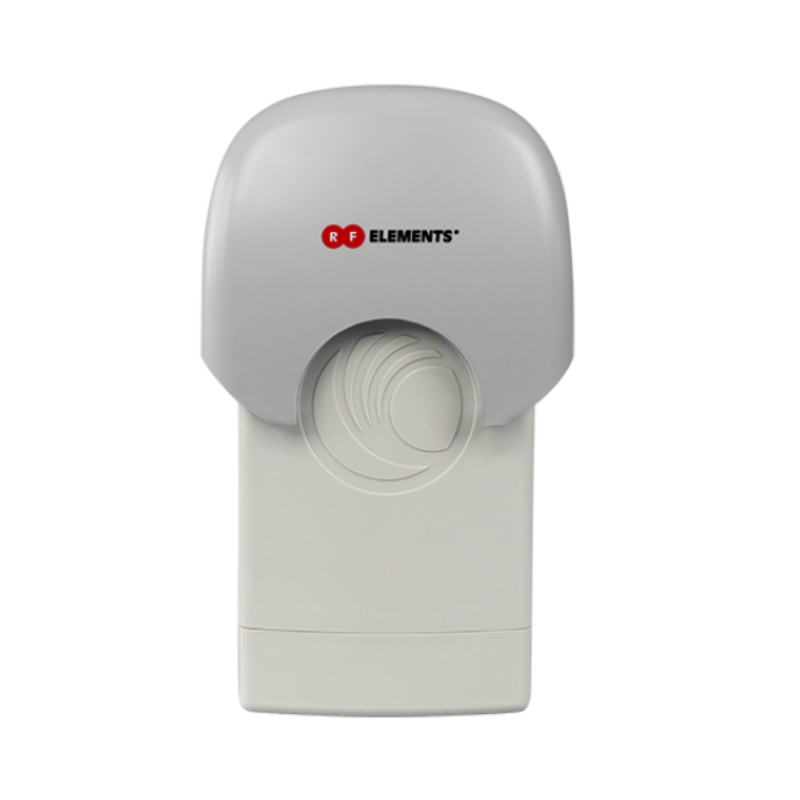

RF Elements TwistPort™ Adaptor for ePMP2000 AP
- SKU: TP-ADAP-e2K
Product Information
RF Elements TP-ADAP-e2K
TwistPort™ Adaptor for ePMP2000 AP

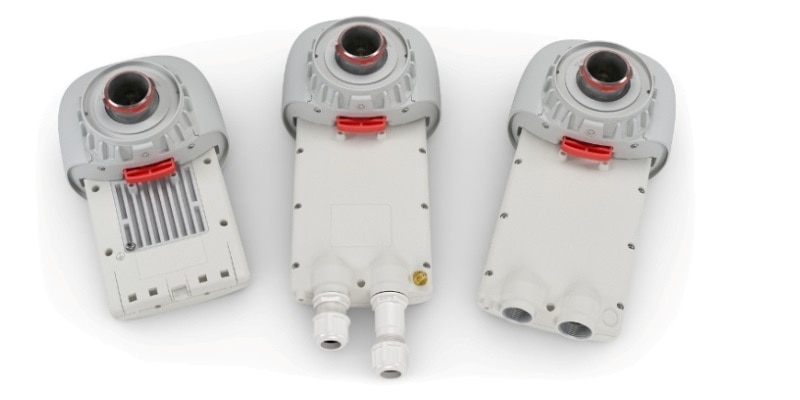

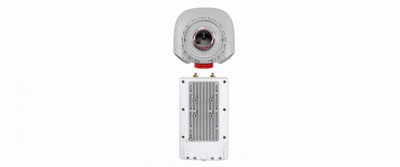

The TwistPort™ Adaptor TP-ADAP-e2K makes the ePMP™ 2000AP, ePMP™ Force 400C, ePMP™ Force 4600C, ePMP™ Force 4600L and ePMP™ 4500L radio compatible with all TwistPort™ Antennas. TwistPort™ Adaptors are equipped with our original quick-locking waveguide port. Connecting and disconnecting the radios with the TwistPort™ Adaptor is very simple and requires no tools.
What is TwistPortTM Adaptor
TwistPortTM Adaptor adapts 3rd party radios to RF elements® proprietary TwistPortTM waveguide connector. Integration of the radio is smooth and requires no tools. Making 3rd party radios compatible with TwistPortTM allows for using the radio with any TwistPortTM antenna ever made and enable superior performance, noise immunity and network scalability.
For ePMP 2000 AP, Force 400C, Force 4600C and Force 4600L radios
TwistPortTM Adaptor for ePMP-B is compatible with Cambium NetworksTM ePMP 2000 AP, ePMP Force 400C, Force 4600C, Force 4600L and 4500L radios.
Market Leading Performance
TwistPortTM Adaptors cover an ultra-wideband spectrum and perform with superb efficiency with very well managed VSWR across the spectrum.
Specifications
Specifications TP-ADAP-e2K
| Antenna Connection | TwistPort ™ - Quick-Locking Waveguide Port |
| Radio Connection | 2x Slide-On RP-SMA |
| Materials | Insert - Aluminum Alloy Adapter - UV stabilized and weather resistant ABS plastic |
| Flame Rating | UL 94 HB |
| Temperature | -40 ° C to + 60 ° C (-40 ° F to + 140 ° F) |
| Wind Survival | 160 km / h |
| Weight | 0.42 Kg / 0.9 lbs - single unit |
| Frequency Range | 5180 - 6400 MHz |
| Polarization | Dual Linear H + V |
| VSWR Max | 1.8 |
| Impedance | 50 Ohm |
| Antenna Compatibility | Any TwistPortTM Compatible Antenna |
| Radio Compatibility | Cambium NetworksTM: ePMPTM 2000 AP, ePMPTM Force 400C, Force 4600C and Force 4600L, ePMP 4500L |
