Product Information
RF elements Array Sector antennas are optimized for high performance in unlicensed frequency bands. They offer excellent RF performance, colocation capability, easy installation, and cost-efficiency.
The side lobes of Array Sector antennas are suppressed using BackShield, our patented, frequency-selective surface attenuating azimuth side lobes and back lobe integrated into the antenna body.
The gain of Array Sector 2-14 is stable in both horizontal and vertical polarizations, offering reliable performance regardless of which channel you use. The antenna is light and made of high-quality, non-corrosive materials for long-lasting performance.
Product Includes

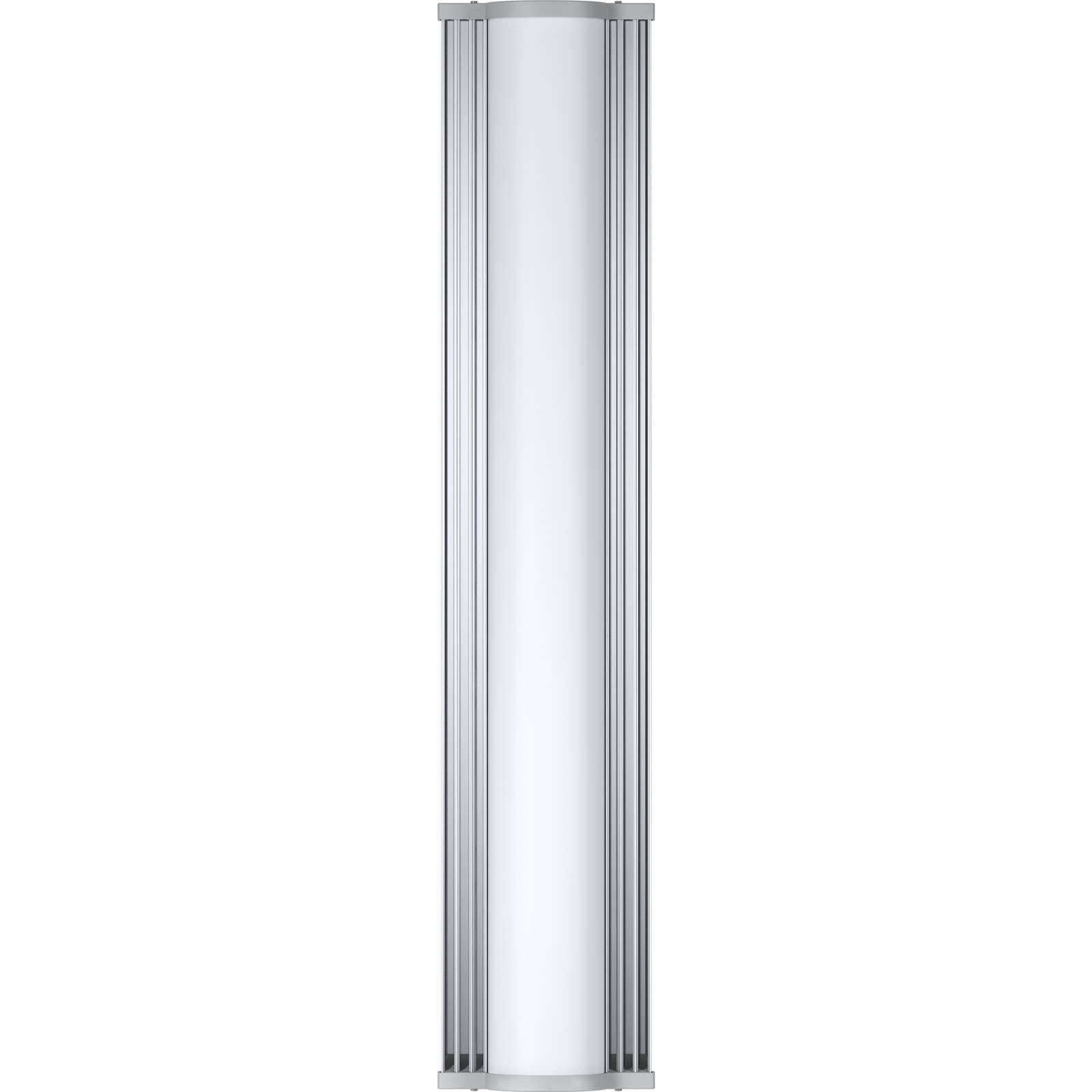

- 1x RF elements 2.4GHz 14dBi Array Sector Antenna

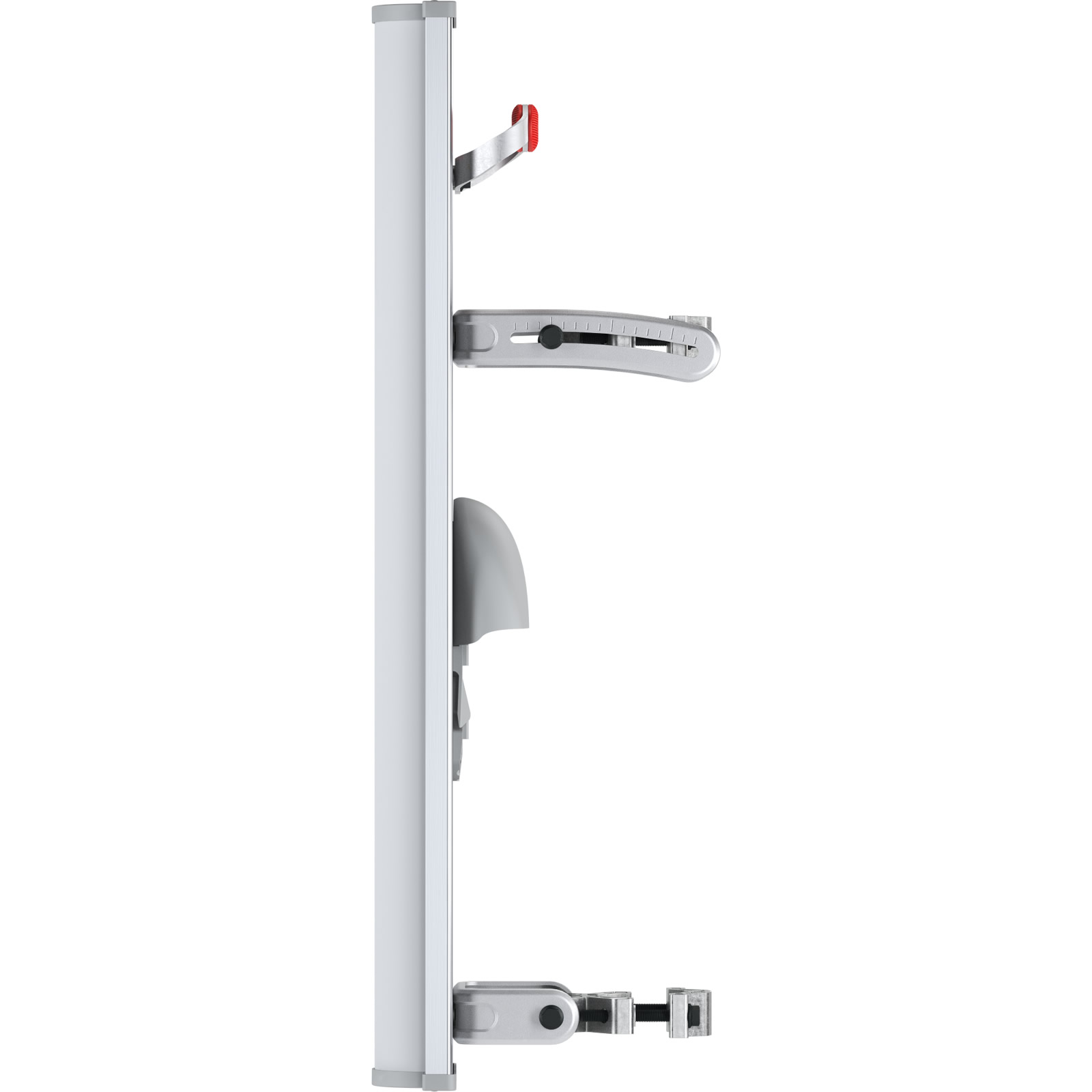

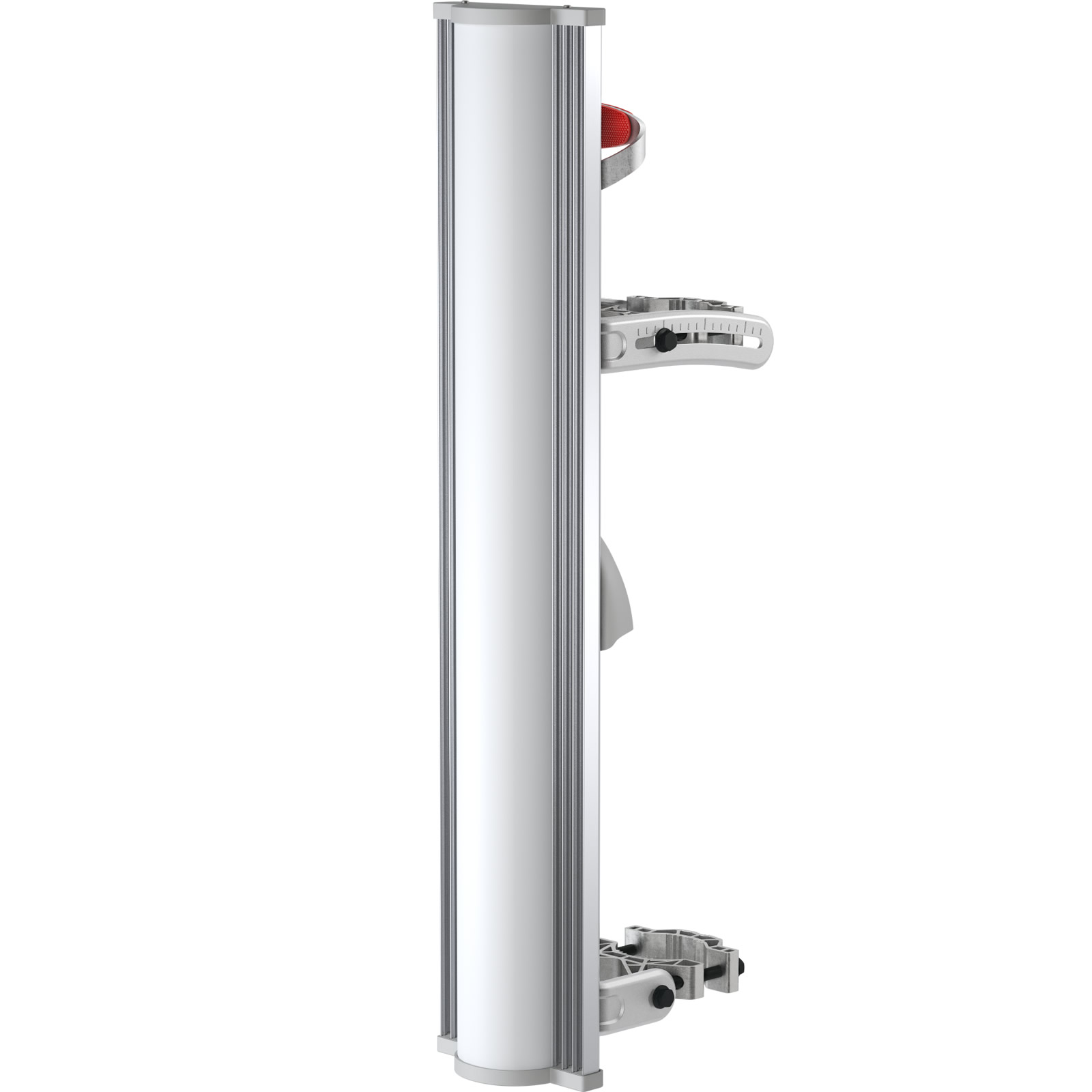

- 1x Bracket Top
- 1x Bracket Bottom
- 2x Pole Mount Bracket
- 1x Radio Cover
- 1x M8 x 80mm Screw
- 1x M8 x 16mm Screw
Specifications
| Antenna Connection | 2x RP-SMA on integrated semi-flex pigtails |
| Antenna Type | Patch Array Sector |
| Materials | UV Resistant ABS Plastic, Aluminium Alloy, Stainless Steel |
| Enviromental | IP55 |
| Temperature | -35°C to +60°C (-31°F to +140°F) |
| Wind Survival | 160km/hour (100 miles/h) |
| Wind Loading | 160N at 160 km/hour (100 miles/h) |
| Electrical Downtilt | 0° |
| Pole Mounting Diameter | 40-80mm (1.5-3.1 inch) Recommend as close to 80mm (3.1 inch) as possible |
| Weight | 3.7 kg (8.1lbs) – single unit 4.0 kg (8.8lbs) – single unit incl. package |
| Single Unit | Retail Box: 834 x 167 x 130 mm (32.8 x 6.5 x 5.1 inch) |
| PERFORMANCE | |
| Frequency Range | 2400-2484MHz |
| Gain | 14dBi |
| Polarization | Dual Linear H + V |
| Azimuth Beam Width -3 dB | H 71° / V 80° |
| Elevation Beam Width -3 dB | H 15° / V 15° |
| Azimuth Beam Width -6 dB | H 112° / V 112° |
| Elevation Beam Width -6 dB | H 21° / V 21° |
| Front-to-Back Ratio (Min) | 21dB |
| Beam Efficiency* | 88% |
| Cross Pol Isolation | H 30dB / V 30dB |
| Impedance | 50Ohm |
| VSWR Max | 1.6 |
| VSWR Typical | 1.4 |
| Isolation Between Ports | 35dB |
| COMPATIBLE WIRELESS PLATFORMS | |
| RF elements | StationBox S, StationBox S CARRIER CLASS, RockShield |
| Cambium Networks | ePMP 1000AP and CSM*1 |
| MikroTik | BaseBox*2, NetBox*2, NetMetal*2 |
| Ubiquiti Networks | Rocket M2, Rocket 2AC Prism |
| TP-Link | Pharos WBS210 |
