Radio Waves 5150 MHz to 5850 MHz V/H Dual Polarization Flat Panel Antenna, 0.15m | 0.5ft

Radio Waves FPD.5-5-18V2

5150 MHz to 5850 MHz V/H Dual Polarization Flat Panel Antenna, 0.15m | 0.5ft

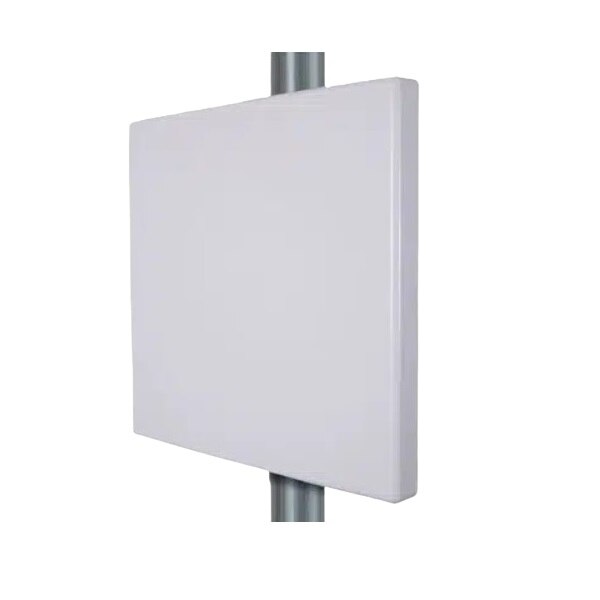

The RadioWaves high performance flat panel antenna FPD.5-5-18v2 is engineered for superior performance and designed for rugged environments with a low profile, aesthetically pleasing design. Measuring 10" x 10" this antenna is extremely compact and toughened to stand up to all environments.

The FPD.5-5-18v2 has 18 dBi gain, 17° Horizontal Beamwidth and 17° Vertical Beamwidth patterns with Vertical + Horizontal polarization and features 2 x Type N Female connectors. The 5150-5850 MHz FPD.5-5-18v2 is rugged and weatherproof and features a heavy-duty UV-resistant plastic radome for all-weather operation.

The FPD.5-5-18v2 is ideal for Point-to-Point applications in WLAN, public safety and UNII applications. The 2 x Type N Female connectorized FPD.5-5-18v2 antenna includes mounting bracket and hardware for ease of installation.

Features:

• Dual polarity feed system in single enclosure
• Includes tilt and swivel mast mounting
• Two integral N-Female connectors
• UV-resistant radome for all-weather operation
• MIMO - Multiple-Input and Multiple-Output

Applications:

• 5.3 GHz, 5.4 GHz and 5.8 GHz band applications
• IEEE 802.11a Wireless LAN
• 5.8GHz UNII and ISM applications
• Unlicensed European 5.4 GHz band applications
• WiMAX technology
• Wi-Fi systems
• 5.8 GHz wireless video systems
