Radio Waves 0.3 m | 1 ft Flat Panel Antenna, Dual-polarized, 5.15-5.85GHz
- SKU: FPD1-5-24
$461.99
+ $95.28 Tariff
- Manufacturer: Radio Waves Inc.
- Data Sheet: Download
Product Information
Radio Waves FPD1-5-24

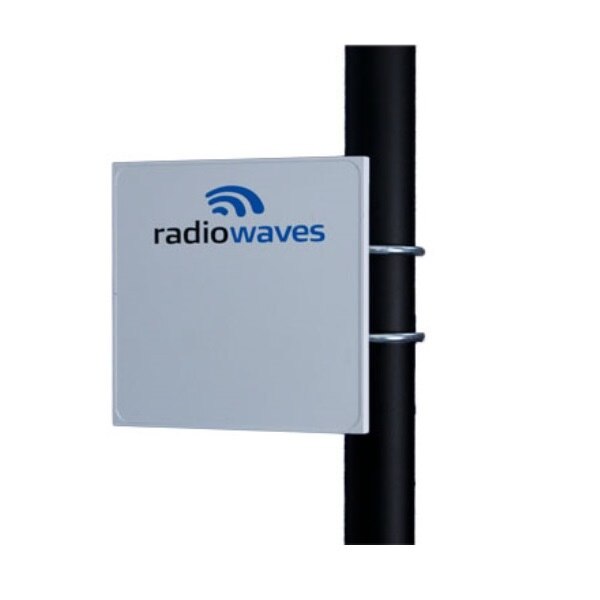

0.3 m | 1 ft Flat Panel Antenna, Dual-polarized, 5.15-5.85GHz
The FP Flat Panel Series by RadioWaves offers a full line of high performance flat panel antennas engineered for superior performance within a low profile aesthetically pleasing form factor. Ideal for Point to Point applications where form factor is a concern, RadioWaves field-proven pre-assembled antennas and robust easy to install mounting system ensure “set and forget” installation with minimal post-installation maintenance. If it’s rugged, it must be RadioWaves!
Features:
- High Performance Flat Panel Antennas – Excellent performance in an aesthetically pleasing form factor
- Fully Preassembled at the Factory – Simplifies installation on site and guarantees “factory-tested” quality
Specifications
Specifications FPD1-5-24
| Dimension | 16 x 16 x 5 inch |
| Weight | 8 lbs |
| Antenna Type | Flat Panel Antenna |
| Size, nominal | 1 ft | 0.3 m |
| Polarization | Dual |
| Standard RF Connector Type | N-Female |
| Standard RF Connector Suffix | Not Applicable: No model number suffix required |
| Electrical | |
| Operating Frequency Band | 5.15 - 5.85 GHz |
| Half Power Beamwidth, Horizontal | 20 degrees |
| Half Power Beamwidth, Vertical | 20 degrees |
| Cross-Polarization Discrimination | 20 dB |
| Front to Back Ratio (F/B) | 40 dB |
| Gain, Low Frequency | 22.4 dBi |
| Gain, Mid Frequency | 23 dBi |
| Gain, High Frequency | 23.5 dBi |
| VSWR | 1.7:1 |
| Return Loss | -12 dB |
| Mechanical | |
| Fine Elevation Adjustment | +/- 10 degrees |
| Mounting Pipe Diameter, Min | 2 inch | 5.09 cm |
| Mounting Pipe Diameter, Max | 2.5 inch | 6.4 cm |
| Net Weight | 5 lbs | 2.3 kg |
| Wind Velocity Operational | 90 mph | 145 km/h |
| Wind Velocity Survival Rating | 125 mph | 201 km/h |
| Mechanical Configuration | FPD1-5-24 |
| Axial Force (FA) | 49 lbs | 220 N |
| Side Force (FS) | 0 lbs | 0 N |
| Twisting Moment (MT) | 0 ft-lbs | 0 Nm |
| Operating Temperature Range | -40 to +60 C |
| Regulatory Compliance | |
| FCC | undeclared |
| Industry Canada Compliance | undeclared |
| ETSI | undeclared |
| RoHS-compliant | Yes |
