Specifications Rohn GAC5755TOP
|Type||Anchor ground rod|
|Size||1.44" OD x 14"|
|For||55/57 series tower|

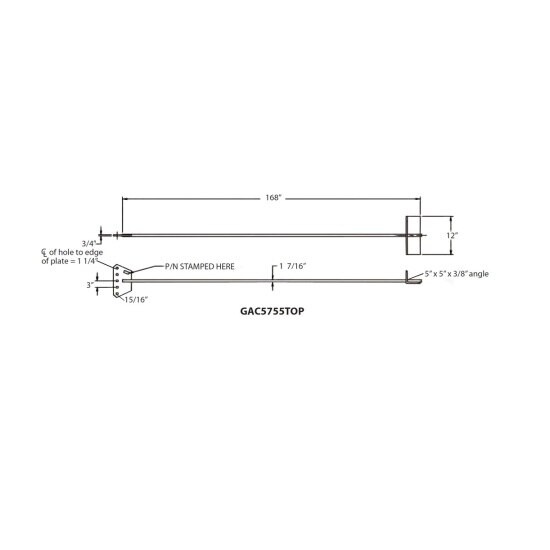

Rohn GAC5755TOP Anchor Rod, 5755 1.44" DIA X 14'
The ROHN R-GAC5755TOP concrete guy anchor 1 7/16" rod with 5-hole equilizer plate embeds into a standard concrete anchor block at the base of a ROHN 25G, 45G, 55G, or 65G tower with either a 3 or 5 level down guy attachment. The anchor rod has 64,800 lbs. of allowable load. This configuration of equalizer plate uses the eye to jaw turnbuckles as the down guy attachment method.
