Rohn RAL10 RSL SERIES ANCHOR BOLT BASE SECT 10
- SKU: RAL10
- Manufacturer: Rohn
- Availability: Direct Ship Item Item Ships direct form Manufacturer, Lead times vary. Please call for exact lead time.
Specifications Rohn RAL10
|Part Type||Tower Base Anchors|
|Tower Base Anchor Type||Base stub|
|Used with||RSL assembly|
RAL10 Rohn RSL SERIES ANCHOR BOLT BASE SECT 10

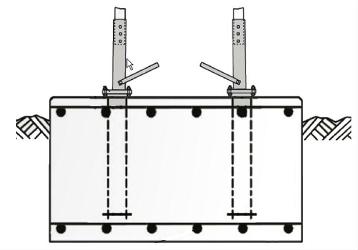

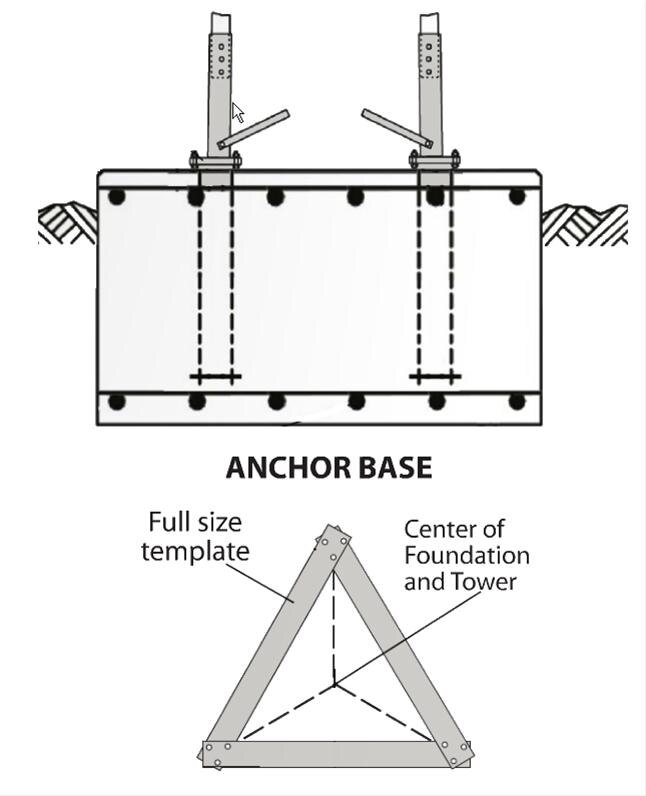

The Rohn RAL10 is an anchor base for Rohn RSL towers. Includes full-size template, anchor bolt lower template, anchor bolts and leg stubs. Base design utilizes double lower nuts to allow for leveling. Required concrete footing size is 10' x 10' x 4'4" (16 cu. yds.).
ROHN RAL Series Tower Base Anchors are designed specifically for RSL towers. Choose the proper product number based upon the bottom tower section. For example, RAL10 is the correct part when an RSL10 is the bottom tower section.
