Rohn RSL Tower 100 ft-Section 1 - 10 HD
US$6,115.75 US$7,195.00
- SKU: RSL100H10
- Manufacturer: Rohn
Product Information

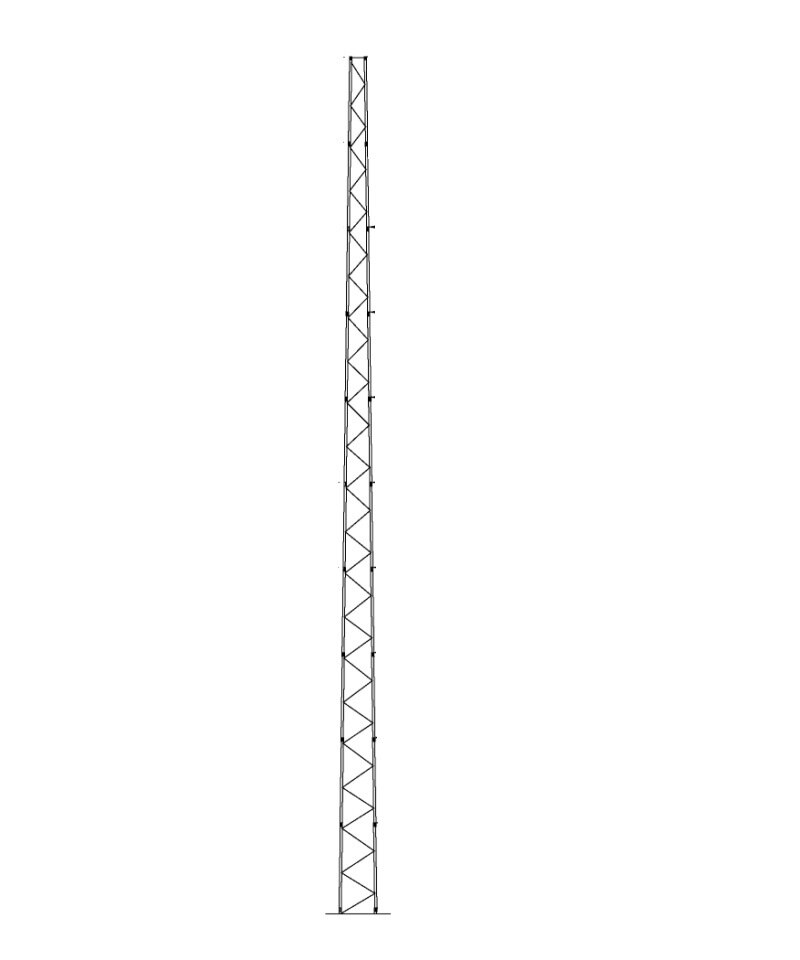

Rohn RSL100H10
RSL Tower 100 ft-Section 1 - 10 HD
The Rohn RSL100H10 is a heavy duty 100' self-supporting tower designed for use in broadband, public safety and security applications, reaching above line-of-site obstacles such as tree tops, hilly terrain and buildings. Shipped knocked-down to reduce shipping cost and time.
Specifications
Specifications
| Weight | 1,550 lbs |
| Dimensions (LxWxH) | 132 x 24 x 22 inches |
| Height | 100' |
| Section size, top | 21" |
| Section size, bottom | 51" |
| Base footing | 10' x 10' x 4'4", (16 cu. yds.) |
| Windload capacity, 90 MPH (Cat. 1/Exp. B) | 56 sq. ft. |
| Windload capacity, 100 MPH (Cat. 1/Exp. B) | 35 sq. ft. |
| Windload capacity, 110 MPH (Cat. 1/Exp. B) | 20 sq. ft. |
| Windload capacity, 90 MPH (Cat. 1/Exp. C) | 41 sq. ft. |
| Windload capacity, 100 MPH (Cat. 1/Exp. C) | 22 sq. ft. |
| Windload capacity, 110 MPH (Cat. 1/Exp. C) | 3 sq. ft. |
