Rohn RSL Tower 70ft - Section 3-9

$‎3,527.50 $‎4,150.00
$‎3,527.50 $‎4,150.00

Specifications Rohn RSL70L39

BrandROHN
height70'
Section size, top27"
Section size, bottom48"
Base Footing9'9" x 9'9" x 4'4", (15.3 cu. yds.)

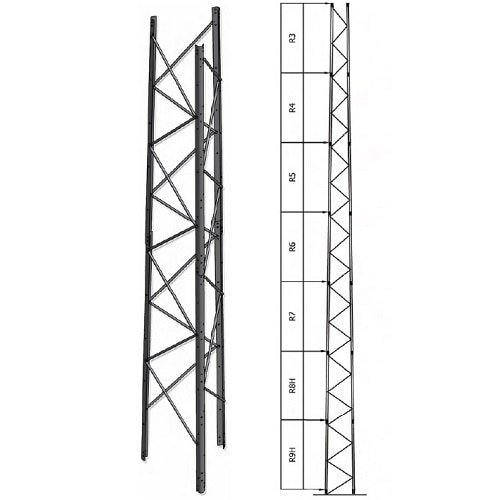

Rohn RSL70L39 RSL Tower 70ft - Section 3 - 9

The Rohn RSL70L39 is a RSL 70' Light Weight Self-Support Tubular Brace Tower Kit, U-Shaped High Strength Angle Legs, Hot-Dipped Galvanized, is designed for use in Wireless Broadband , public Safety & Security applications. The RSL is shipped knocked down to reduce shipping cost and time.

CLASS I Structure / Exposure Cat B / Topo Cat 1

CLASS II Structure / Exposure Cat C / Topo Cat 1 / Wind -w- Ice 40 MPH @ 1" / Earthquake Ss 2.50


This Kit Includes:

  • Sections- 3-9
  • Top Kit- RSLH3A
  • Bolt Kits- 7
  • RSB09 Short Base ( Optional )
  • RAL09 Anchor Base Kit ( Optional)
  • ACWS
  • ASSEMBLY PACKAGE

Features:

  • 70’ Height
  • Handles up to 74 sq. ft.
  • Constructed of hot-dip galvanized steel
  • Available in heights from 20' up to 100'
  • U-shaped legs allows for simple lap splice connection
  • Available in standard and heavy models
  • Pre-punched holes for attachment of safety climb systems, mounting kits, etc.
  • Braces for each section are the same length, while bolt lengths are standard throughout the tower
  • Tower material is hot-dip galvanized
  • Assembly drawings provided with tower
  • Top closing angle standard with each tower package
