Rohn RSL80L29 RSL Tower 80 Ft-Section 2 - 9
Product Information
Rohn RSL80L29 RSL Tower 80 Ft-Section 2 - 9
The Rohn RSL80L29 is an 80' Self-Support Tubular Brace Tower Kit , U-Shaped High Strength Angle Legs , Hot-Dipped Galvanized , is designed for use in Wireless Broadband , public Safety & Security applications .The RSL is shipped knocked down to reduce shipping cost and time.
CLASS I Structure / Exposure Cat B / Topo Cat 1
CLASS II Structure / Exposure Cat C / Topo Cat 1 / Wind -w- Ice 40 MPH @ 1" / Earthquake Ss 2.50
This Kit Includes:

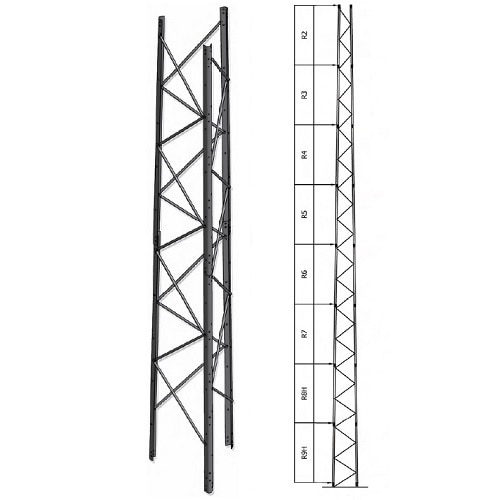

- Sections- 2-9
- Top Kit- RSLH2A
- Bolt Kits- 8
Features:
- 80’ Height
- Handles up to 49 sq. ft.
- Constructed of hot-dip galvanized steel
- Available in heights from 20' up to 100'
- U-shaped legs allows for simple lap splice connection
- Available in standard and heavy models
- Pre-punched holes for attachment of safety climb systems, mounting kits, etc.
- Braces for each section are the same length, while bolt lengths are standard throughout the tower
- Tower material is hot-dip galvanized
- Assembly drawings provided with tower
- Top closing angle standard with each tower package
Specifications
Specifications Rohn RSL80L29
| Brand | Rohn |
| Series | RSL Series |
| Support | Self-Supporting Tower |
| 3 Second Wind Gust with 1" Ice and Max Antenna SF | 90 MPH |
| Height | 80 FT |
| Max Antenna SF with 1" Ice | Up to 21 SF Antenna |
| Tower Type | Medium Tower |
| Actual tower height | 80', section 2-9 |
| Tower model | RSL light |
