Sercom Genesis OC3505B, 4T/8R CBRS Fixed Wireless CPE
- SKU: OC3505
$240.00 $395.00
+ $56.25 Tariff
- Manufacturer: Sercom
- Data Sheet: Download
Product Information
Sercom Genesis OC3505B
4T/8R CBRS Fixed Wireless CPE
- Sercom UE OC3505B, 4T/8R Cat 15/13 B48
- SAS CA Included
Features:
- LTE TDD B48
- 3GPP Rel 12, Cat 15/13
- Max DL Data Rate 580Mbps
- Max UL Data Rate 60Mbps
- DL 4CA with 2x2 MIMO 256QAM
- UL 2CA with SISO
- NAT + Bridge mode
- Multi PDN support
- PoE
- TR069
Specifications
Sercom Genesis OC3505B
| Hardware | |
| Connectors | USIM: Micro SIM/MFF2 RJ45: LAN port, 10/100/1000Mbps+PoE USB: Console for debug |
| Processor and Memory | CPU: 3GPP Rel 12, Cat 15/13 Flash: 256MB, RAM: 256MB |
| Push Button | Reset / Restore to default |
| LED | Power/Status LED Signal Strength |
| Power Adapter | PoE (802.3 AF) |
| RF | B48, 4Tx/8Rx, 23dBm/Tx |
| UL Modulation | QPSK/16/64QAM |
| DL Modulation | QPSK/16/64/256QAM |
| Transmission Mode | TM1/2/3/4/5/6/7/8/9 |
| TDD Frame Configuration | 0/1/2 |
| Antenna | Directional, 12dBi HPBW +/- 15 degree |
| Power Consumption | 14Watt |
| Compliance | FCC |
| Dimension | 308.5mm x 308.5mm x 100.8mm |
| Weight | 1.65KG |
| Firmware | |
| Firewall | NAT / Bridge |
| Connection Management | Auto / Manual |
| Protocol | TCP/IP, DHCP,HTTP,DNS |
| Environment | |
| Operation | Temperature: -40° - 55°C;Humidity: 10% - 90% RH (non-condensing) |
| Storage | Temperature: -40° - 70°C;Humidity: 0% - 90% RH (non-condensing) |
| Accessories | |

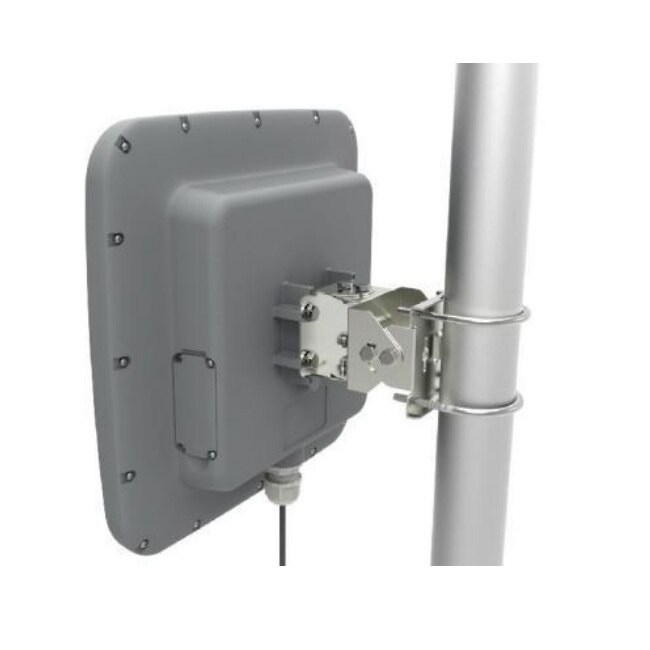

| Accessories | Mounting bracket |
