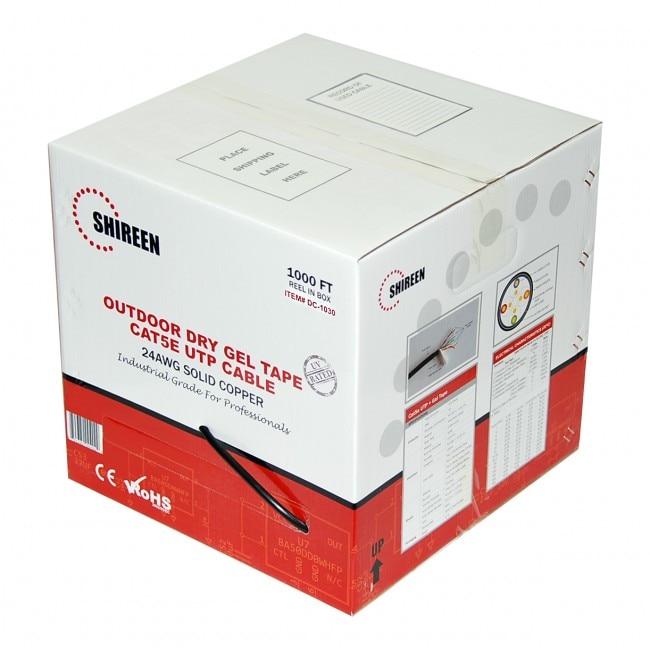

Shireen 1000ft, outdoor dry gel tape cat5e
- SKU: DC-1030
$210.00 $236.00
+ $22.50 Tariff
- Manufacturer: Shireen
- Data Sheet: Download
Product Information
Shireen 1000ft, outdoor dry gel tape cat5e DC-1030
Shireen's item# DC-1030 is high quality outdoor CAT5e UTP cable. Features dual jacketed, 4 unshielded twisted pairs of 24AWG wire with LDPE + Dry Gel Tape. Excellent for use in any outdoor/inside conduit burial for networking, data transfer (10/100/1000 Mbps) and phone lines applications.
- Outer Jacket:LDPE, PVC
- Ethernet Cable Type:Cat5e
- Ethernet Cable Application:Burial, Outdoor
- Ethernet Cable Features:Gel Tape, UTP
- Dimensions (WxLxH): 13 x 13 x 13
- Weight: 32 Lb
Specifications
Specifications DC-1030
Conductor
| Pairs | 4 |
| Total Conductor | 8 |
| AWG | 24 |
| Dia. of Conductor | Φ 0.50±0.01mm |
| Material | Solid Bare Copper |
| Elongation | ≥15% |
Insulation
| Material | HDPE |
| Nom. Thickness | 0.24mm |
| Dia. | Φ 0.95±0.05mm |
| Elongation | ≥300% |
| Length of Lay | < 30 mm |
Cabling
| Order of the pair | See the Cross Section |
| Mylar Tape | 0.03×18mm |
Sheath
| Material | Inner: PVC Outer: LDPE |
| Rip Cord | 200D×3 |
| Nom. Thickness | Inner 0.50±0.05mm |
| O.D. | Φ 5.30±0.2mm |
| Color | Black |
