Shireen 12AWG 2 Core Shielded Outdoor Power Cable, 1000ft Spool

(0)No Reviews yet
  • SKU: PC-1202-1000
US$‎1,095.00
  • Manufacturer: Shireen
  • Data Sheet: Download
Direct Ship Item

Product Information

Shireen PC-1202-1000

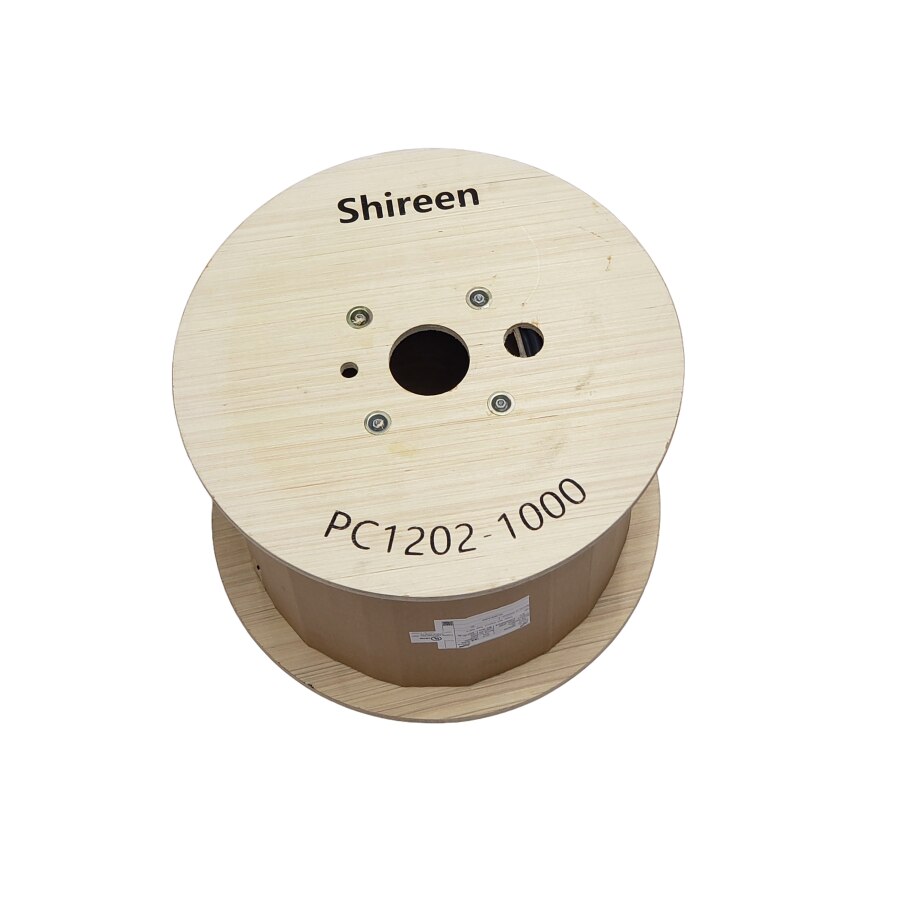

12AWG 2 Core Shielded Outdoor Power Cable, 1000ft Spool

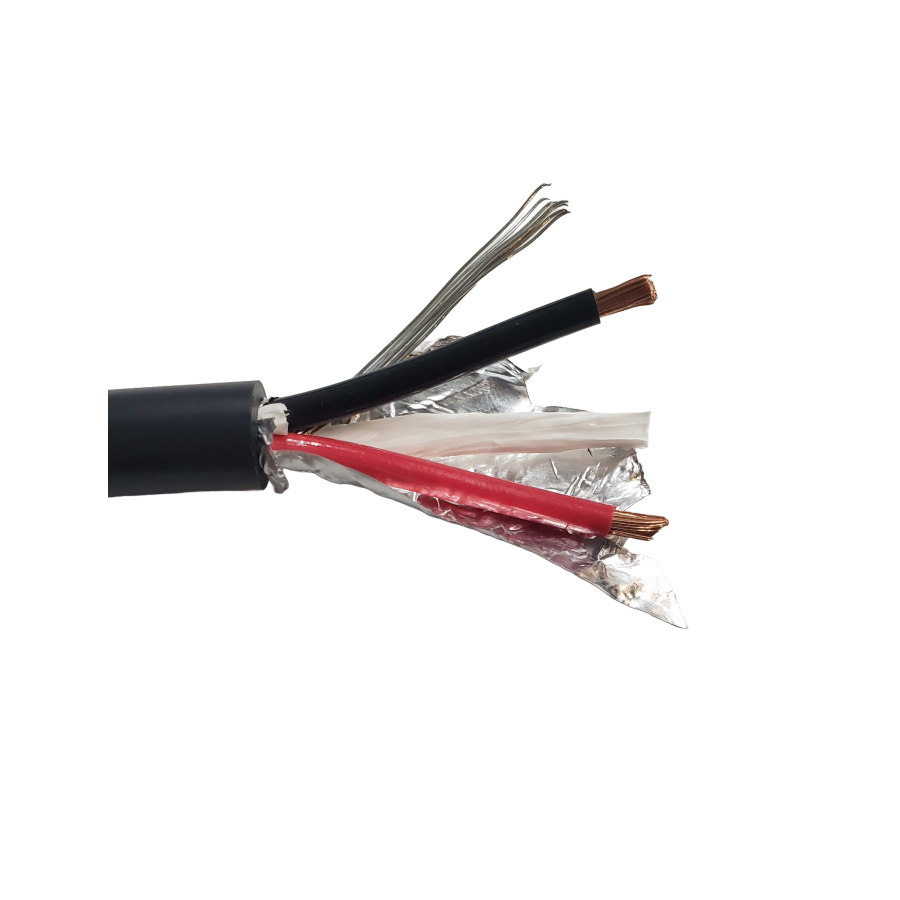

Power cable with Two cores of Insulated 12AWG stranded bare copper wires and 16AWG drain/ground wire, Shielded with a THWN-2, UV-rated jacket that is RoHS and FT2 tested. For all Indoor, Outdoor, and Direct Burial usage.

Power cable with Two cores of Insulated 12AWG stranded bare copper wires and 16AWG drain/ground wire, Shielded with a THWN-2, UV-rated jacket that is RoHS and FT2 tested. For all Indoor, Outdoor, and Direct Burial usage.

Applications: Indoor / Outdoor VNTC, THWN-2, 600V, AC/DC, EMI Shielded UL listed. Direct Burial,

Specifications

Specifications PC-1202-1000

Dimension 14"x14"x13"
Weight 107 lbs.
Total number of conductors2
Conductor Size12AWG / Stranded
Conductor MaterialBare Copper
Conductor Construction65x0.254± 0.008 mm Stranded
Insulation MaterialPVC
Insulation O.D.3.12±0.10 mm
Conductor Color CodeBlack, Red
Inner jacket3.40 ± 0.10 mm
Color CodeTransparent
Filler materPolypropylene filler fibers
Drain wire16 AWG TCC
Sheild wrappingAL-Mylar
Outer Diameter10.30 ±0.20 mm nom.
JacketUV Rated PVC, Black
Performance Testing
Rated Temperature-40 °C ~ +95 °C
Voltage600 V
Max. DC Resistance5.43 Ω/km Max @ 20°C
Min. Bending Radius100mm
Certifications
Flame/Burn Test RatingVW-1 / FT2
Direct Burial and Sunlight ResistantYES
UL Certified1277, 1685, 2885
ICEA S-73-532(Where applicable)Yes
PrintingShireen, Inc. PC-1202 E535784 (UL)-YEF TC 12AWG 2C UV RES DIR BUR FT2 ROHS THWN-2 600V 90℃ DRY/WET xxxft YY/WW
