Shireen LMR240UF EQ cable 1000ft spool

(0) No Reviews yet
  • SKU: RFC240UF-1000
  • Manufacturer: Shireen
  • Data Sheet: Download
  • Availability: Open chat or call usEmail me when this product is in stock!
$449.00

Specifications RFC240UF-1000

Center Conductor

Min. Break Strength (N)740
Conductor Dia.((+/-0.02mm)1.42 (0.485/7)

Insulation

Insulation Dia.(+/-0.10mm)3.81
ColorNeutra
Centricity (%)≥ 90
Adhesion30 to 50N @ 25mm

1st Outer Conductor

Overlapping≥ 115%
Dia.(+/-0.10mm)3.94

2nd Outer Conductor

Conductor Dia.(+/-0.01mm)0.12
No. of Wires144
Coverage (+/-3%)90

Outer Jacket

Outer Dia (+/-0.10mm)6.10
Tensile strength≥ 9.9 N/mm2
Elongation at break≥ 390 %
Adhesion20 to 80N @ 50mm

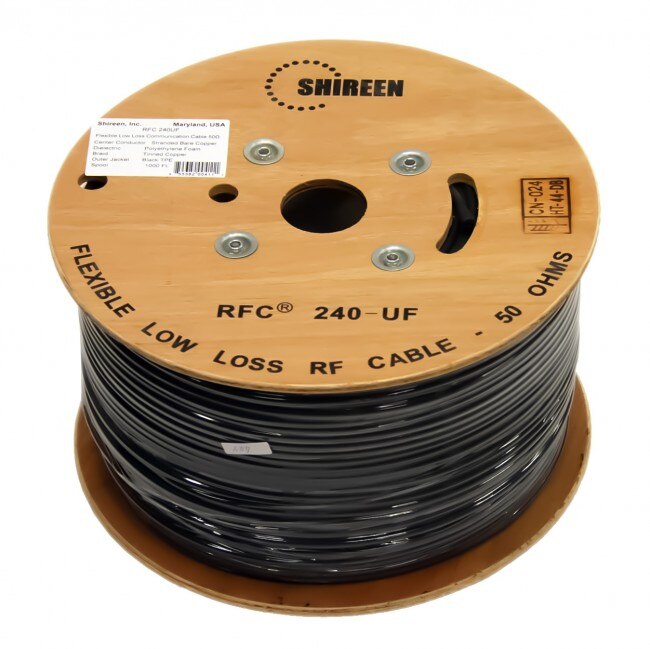

Shireen RFC240UF-1000 LMR240UF eq cable 1000ft spool

RFC240 Ultraflex Low Loss RF Coax Cable 1000 ft Spool

Shireen’s latest RFC® series of low loss cables offer excellent characteristics that meet or exceed the specs of alternatives from Times Microwave, Commscope, Andrew and Belden.

RFC®, Registered trademark of Shireen Inc

LMR®, Registered trademark of Times Microwave Systems


  • Generic Name: RFC240UF
  • Cable Type: Ultraflex
  • Flex Type: Ultraflexible
  • Impedance: 50 Ohm
  • Outer Jacket: TPE
