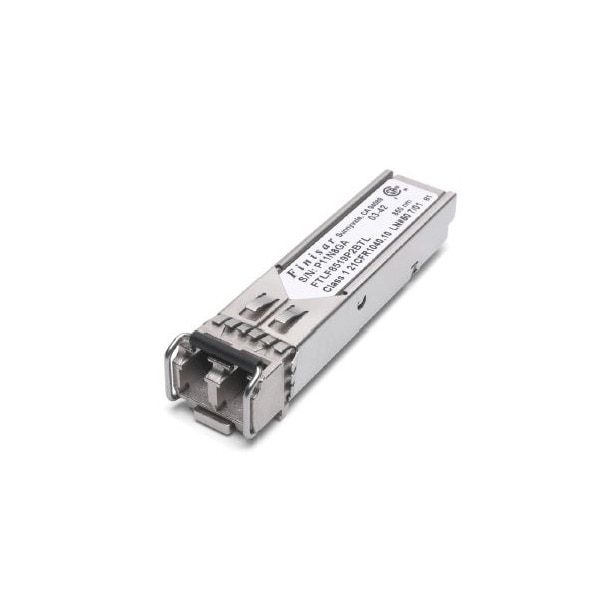

Siklu SFP MM 850

  • SKU: EH-SFP-MM
  • Manufacturer: Siklu
  • Availability: Please Contact us for AvailabilityEmail me when this product is in stock!
US$‎80.00

Siklu EH-SFP-MM

SFP MM 850

These Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)1. They are simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.32 and Fibre Channel FC- PI-2 Rev. 5.03. They are RoHS compliant and lead-free per Directive 2002/95/EC4 and Finisar Application Note AN-2038. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.


Features:

  • Up to 2.125 Gb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • Built-in digital diagnostic functions
  • 850nm Oxide VCSEL laser transmitter
  • Duplex LC connector
  • RoHS Compliant and Lead-Free
  • Up to 500m on 50/125µm MMF, 300m on 62.5/125µm MMF
  • Metal enclosure, for lower EMI
  • Single 3.3V power supply
  • Low power dissipation
  • Industrial operating temperature range: -40°C to 85°C
