Tycon Power USB Powered 48V Passive POE Inserter, 48VDC 12W PoE
|POE voltage||48VDC @ 0.25A|
|Output power||12W maximum|
|Line / load regulation||1% / 5%|
|Ripple / noise||1% / 5%|
|Cable lengths||2USB 4”(100mm) , CAT5 20”(500mm)|
|PoE compatibility||Passive PoE Pins 4,5(+), 7,8(-)|

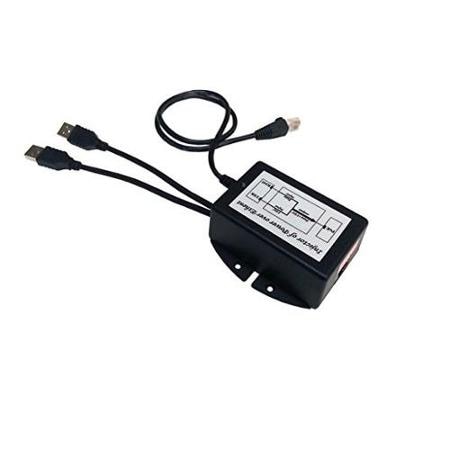

Tycon Power TP-DCDC-2USB-48
2USB to POE Power Injector
The TP-DCDC-2USB-xx Passive Power Over Ethernet Power Source offered by Tycon Power Systems are unique 24VDC and 48VDC Passive PoE injectors powered by USB. They work by supplying up to 12W power to the remote device on the 4 unused Ethernet pins 4,5(+) and 7,8(-). The Ethernet spec supports distances up to 100m (328 feet).
The TP-DCDC-2USB-xx have two USB port cables that take advantage of combining the power from two standard USB ports to provide an output power of up to 12W. They have various protections for short circuit, overload and over voltage.

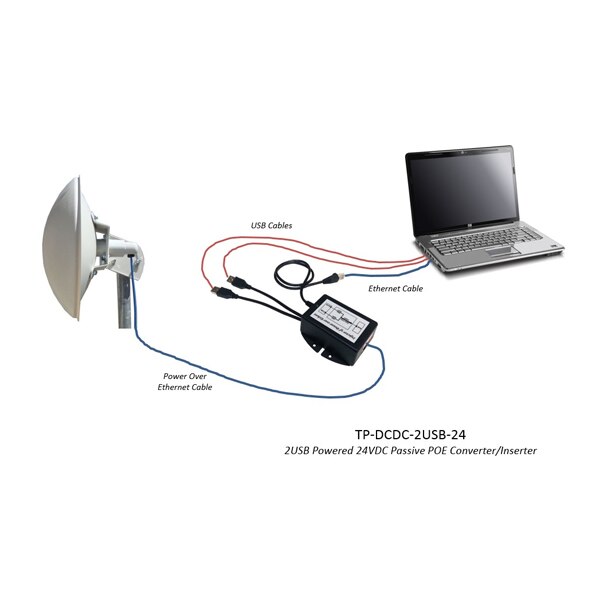

This USB powered PoE injector is a must for any technician’s toolbox because it allows powering of Ubiquiti and Mikrotik as well as other 24VDC Passive PoE products from a laptop’s USB port. The 48VDC passive PoE model is perfect for powering IP Phones, Cameras and other devices that use 48VDC PoE. This allows the technician to quickly test the device by direct connection to his laptop, saving him a lot of time. The TP-DCDC-2USB-xx can also be used in customer premise equipment to power external wireless gear from a customer’s computer USB ports, reducing wiring clutter at the PC and allowing the wireless gear to be powered down when the computer is powered down to conserve energy.
