  • TP-LINK Gigabit SFP module, Single-mode, MiniGBIC, LC interface, Up to 10km distance

TP-LINK Gigabit SFP module, Single-mode, MiniGBIC, LC interface, Up to 10km distance

(0)No Reviews yet
  • SKU: TL-SM311LS
  • Manufacturer: TP-Link
  • Installation Guide: Download
48 in stock
College Station
48 In stock

Product Information

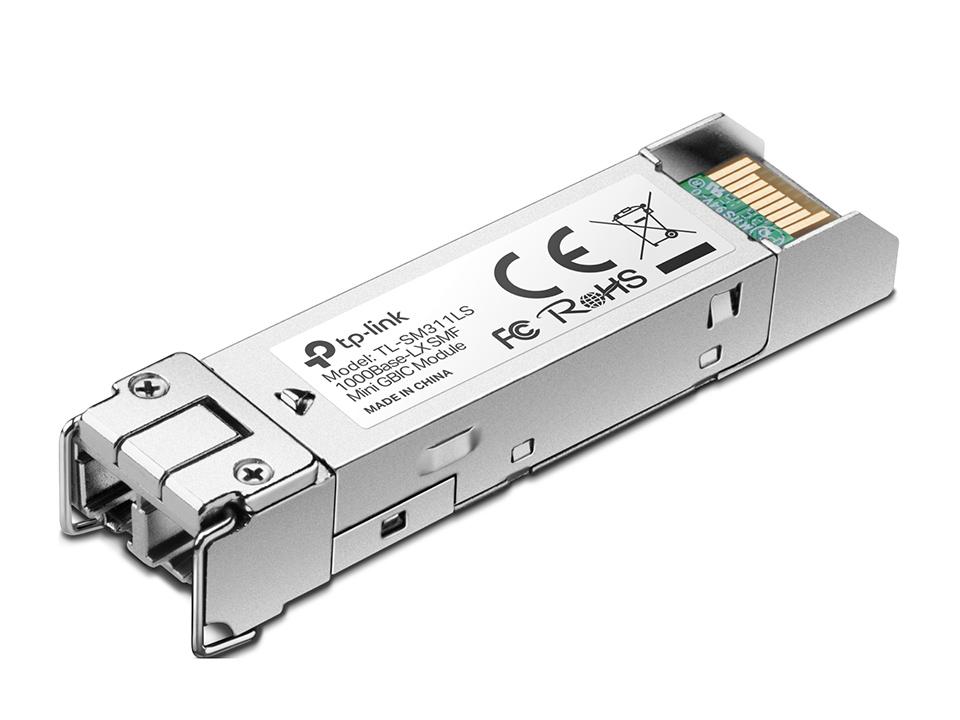

MiniGBIC Module TL-SM311LS

What This Product Does

The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.


Features:

  • Up to 20 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)
  • Compatible with all SFP ports on TP-Link products including JetStream switches, and media converter MC220L.
  • Work with MC210CS with a single-mode fiber connection

Specifications

Specifications TL-SM311LS

Standards and ProtocolsIEEE 802.3z, CSMA/CD, TCP/IP
Wave Length1310nm
Power Supply3.3V
Safety & EmissionFCC, CE
CabelSingle-mode Fiber
Fiber Type9/125 μm Single-mode
Max. Cable Length10km
Data Rate1.25Gbps
Port TypeLC/UPC
EnvironmentOperating Temperature: 0℃~70℃ (32℉~158℉) Storage Temperature: -40℃~80℃ (-40℉~176℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
