TP-Link AC2600 MU-MIMO Wi-Fi Router Archer A10

  • SKU: Archer A10
  • Manufacturer: TP-Link
  • Data Sheet: Download
  • Quick Installation Guide: Download
  • Availability: 6 In Stock    (updated live)
    6 In stock at College Station
US$‎99.97

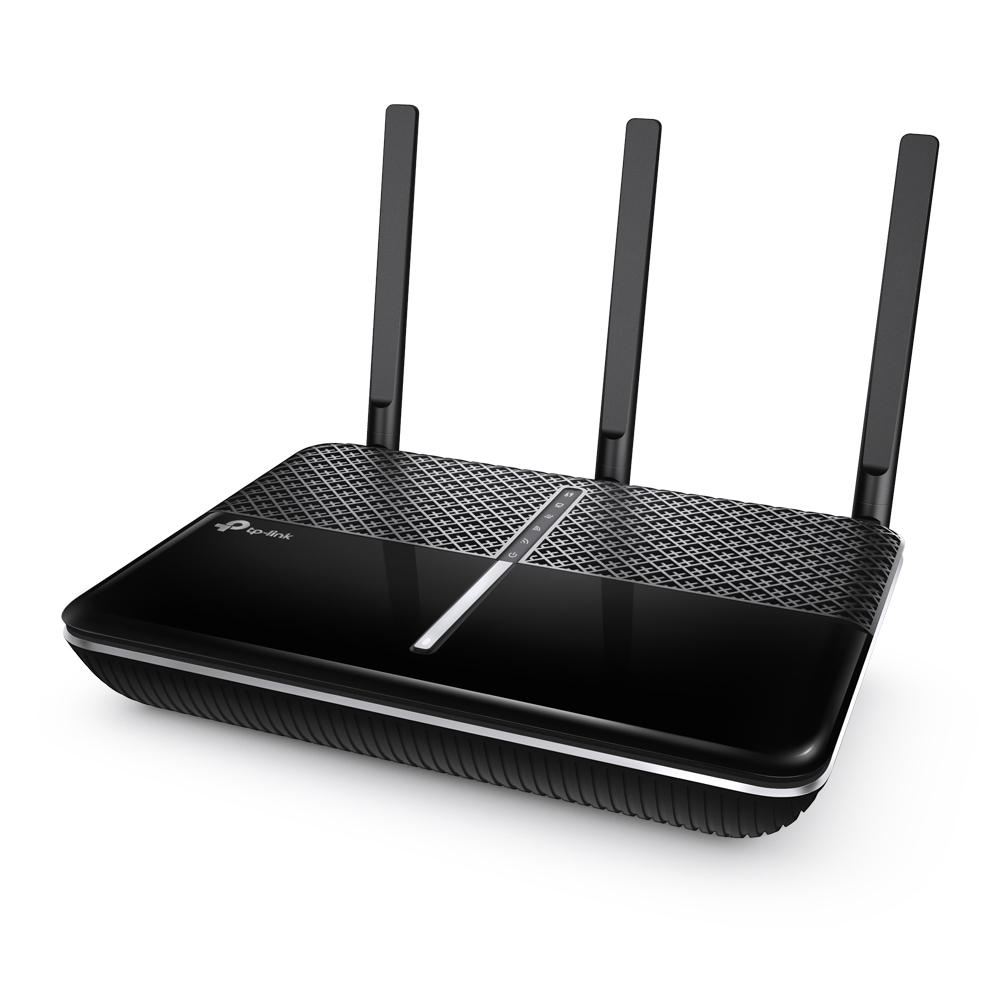

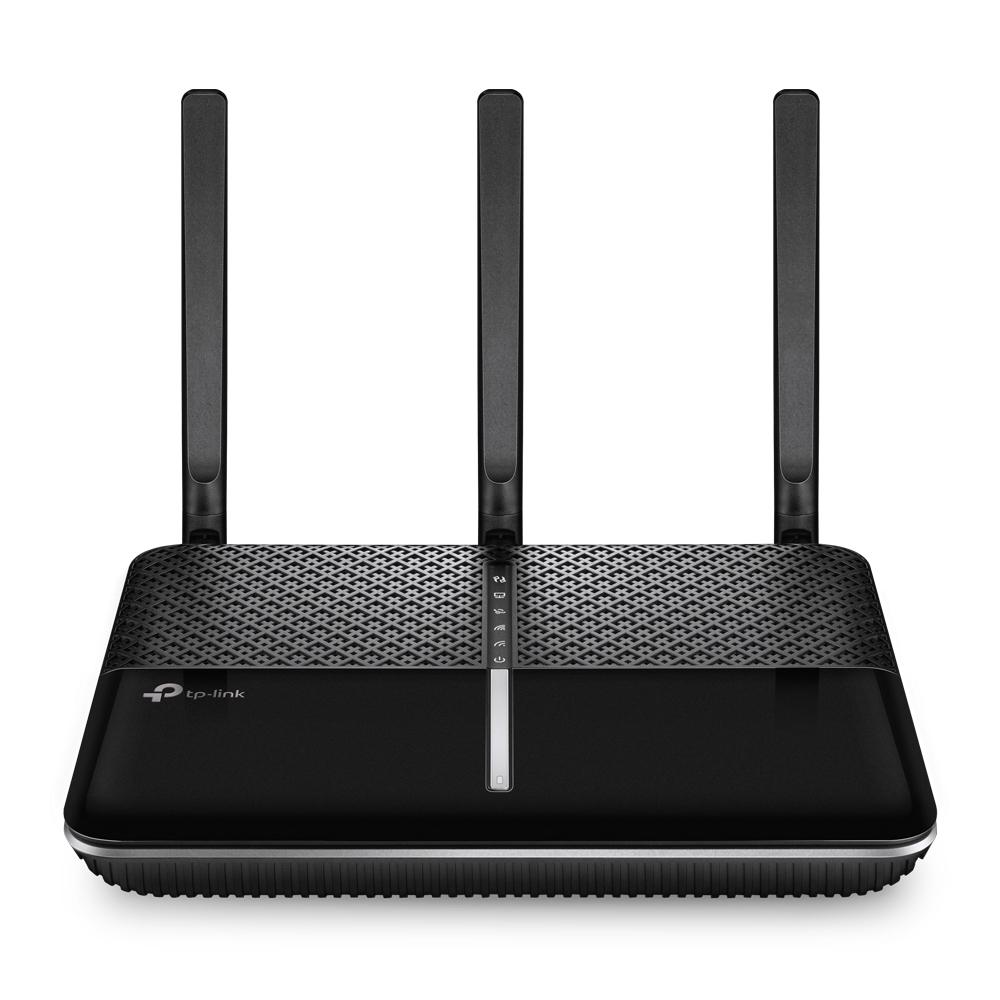

TP-Link Archer A10

AC2600 MU-MIMO Wi-Fi Router

Ultra-Fast Dual-Band Wi-Fi

Archer A10 delivers super-fast dual-band Wi-Fi with speeds of up to 1733 Mbps on the 5 GHz band and 800 Mbps on the 2.4 GHz band. Exceptional wireless performance enables online gaming and HD video streaming at the same time, while large files can be shared with multiple devices. All that is at a great price for all kinds of homes.

Boosted Wi-Fi Coverage

Equipped with three external antennas and one internal antenna, Archer A10 creates stronger and more reliable networks for all to enjoy in your home. Beamforming technology concentrates the Wi-Fi signal towards your connected devices, providing better Wi-Fi range and network performance.

Maximized Overall Network Throughput

Supporting numerous features, Archer A10 maximizes overall network throughput and will give you a superior online experience.

MU-MIMO

Lets Archer A10 talk to multiple devices at once, shortening data transmission times

Band Steering

Automatically switches each device’s connection to the best available Wi-Fi band

Airtime Fairness

Supports more efficient Wi-Fi distribution, preventing older devices from slowing down your network

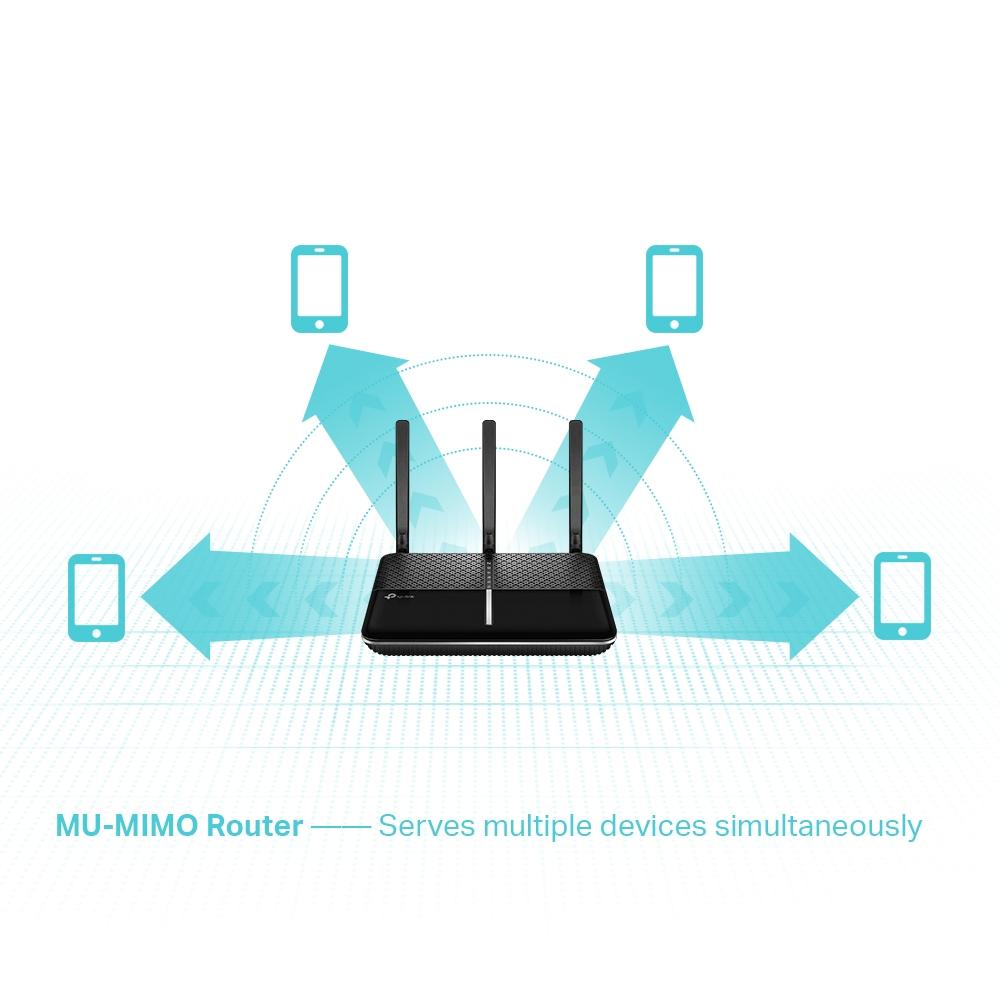

What is MU-MIMO?

Armed with MU-MIMO technology, Archer A10 provides four simultaneous data streams, allowing all connected devices to enjoy speeds up to 4X faster than traditional routers. Say goodbye to buffering!

Secure VPN

OpenVPN and PPTP VPN connections are fully supported. Access your home or office network remotely from anywhere safe in the knowledge your data is kept secure with these VPN options.

Easy Setup and Management

Say goodbye to complex setup instructions. Simply follow the steps given by the Tether mobile app or use the intuitive web interface instead to get setup in minutes.

The Tether app provides convenient management from the palm of your hand, both around the home and remotely via the cloud.

Works with Alexa and IFTTT

Enable the Archer A10 skill for Amazon Alexa to take control of your network with simple voice commands.

IFTTT makes Archer A10 the brain in your smart home. Set interactions between smart home devices to add greater convenience to your daily routine.


Features:

  • Extreme Dual Band Wi-Fi Speeds - 1733 Mbps on 5 GHz, 800 Mbps on 2.4 GHz
  • Ultimate Range - 4 antennas for wireless networks amplified, Beamforming for signal focused to connected devices
  • Higher Overall Throughput - MU-MIMO+Smart Connect+Airtime Fairness for maximum throughput
  • Secure Remote Access - OpenVPN & PPTP VPN server for secure remote access to your home network via the internet
  • Easy Setup - Intuitive Phone UI and Tether app for quick network setup within one minute

Specifications Archer A10

Hardware
Ethernet Ports4 Gigabit LAN Ports, 1 Gigabit WAN Port
ButtonsWiFi On/Off Button, Power On/Off Button, Reset Button, WPS Button
Antennas3 External Antennas, 1 Internal Antenna
External Power Supply12VDC/1.5A
Dimensions (W x D x H)8.5 × 6.5 × 1.4 in. (216 × 164 × 36.8 mm)
Software
Quality of ServiceWMM, Bandwidth Control
WAN TypeDynamic IP, Static IP, PPPoE, PPTP(Dual Access), L2TP(Dual Access)
ManagementAccess Control, Local Management, Remote Management
DHCPServer, DHCP Client List, Address Reservation
Port ForwardingVirtual Server, Port Triggering, UPnP, DMZ
Dynamic DNSDynDns, NO-IP, TP-Link
Access ControlParental Controls, Local Management Control, Blacklist, Whitelist
Firewall SecurityDoS, SPI Firewall, IP and MAC Address Binding
ProtocolsIPv4, IPv6
Guest Network2.4GHz Guest Network , 5GHz Guest Network
Wireless
Wireless StandardsIEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency2.4GHz and 5GHz
Signal Rate1733Mbps at 5GHz, 800Mbps at 2.4GHz
Transmit PowerFCC: <30dBm(2.4GHz), <30dBm(5GHz)
Reception Sensitivity5GHz:

11ac80M MCS9: -64dBm, 11ac80M MCS0: -89dBm 11ac40M MCS9: -68dBm, 11ac40M MCS0: -92dBm 11ac20M MCS8: -72dBm, 11ac20M MCS0: -95dBm 54M: -78dBm, 6M: -96dBm

2.4GHz:

11n40M MCS9: -68dBm, 11n40M MCS0: -93dBm 11n20M MCS8: -73dBm, 11n20M MCS0: -96dBm 54M: -78dBm, 6M: -97dBm
Wireless FunctionEnable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless SecurityEnable/Disable SSID Broadcast, 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, QSS, Wireless MAC Filter
Others
CertificationFCC, CE, RoHS, RCM, IC, NCC, BSMI
System RequirementsMicrosoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Cable or DSL Modem

Subscription with an internet service provider (for internet access)
EnvironmentOperating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
