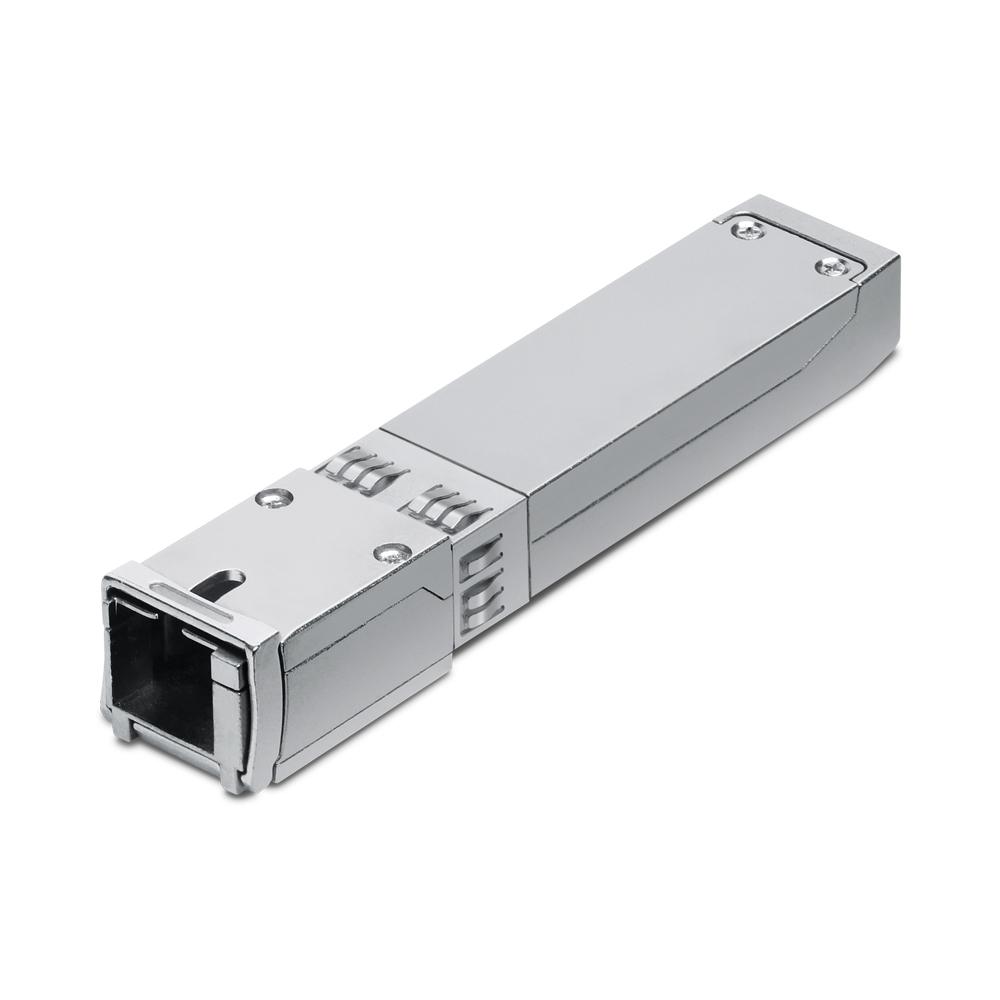

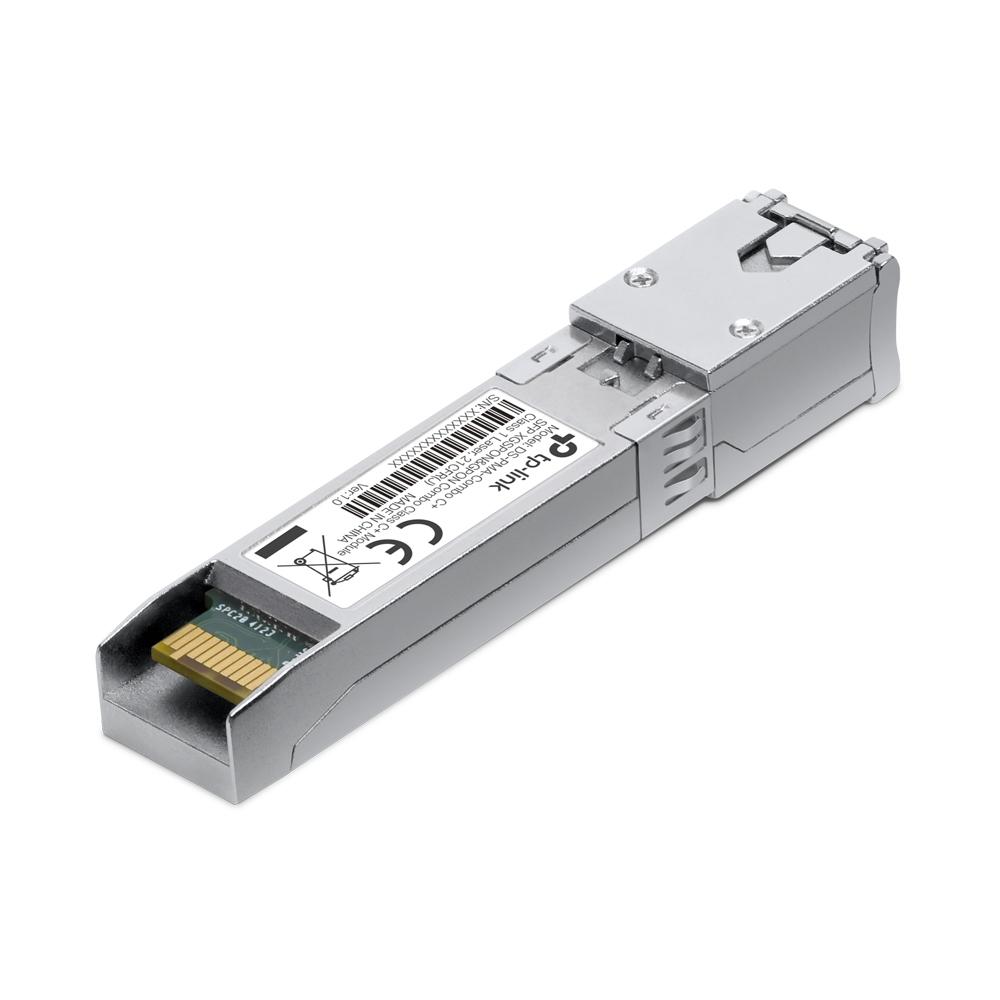

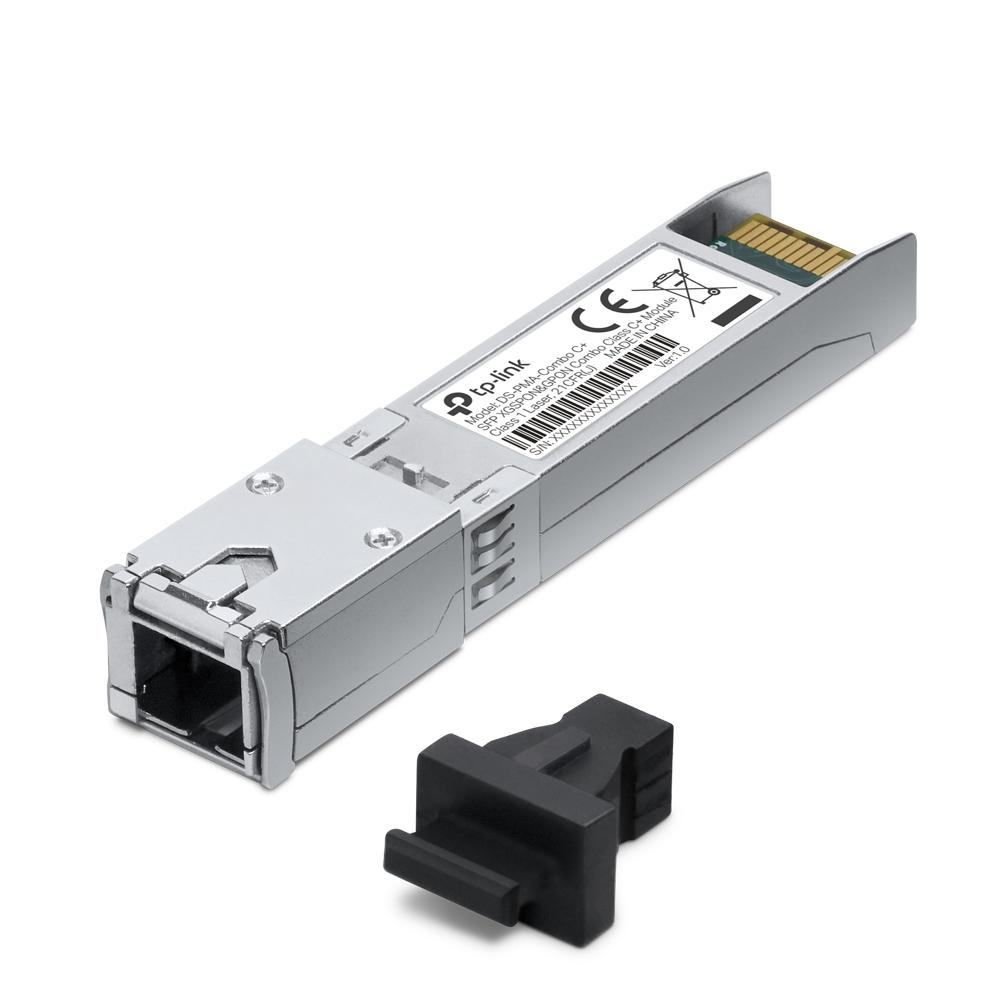

TP-Link SFP XGS-PON & GPON Combo Class C+ Module

(0)No Reviews yet
  • SKU: DS-PMA-COMBO-C+
$249.99
  • Manufacturer: TP-Link

Out of Stock

 Open chat or call us for stock status
Shipping Policies | Returns/RMA Policies

Product Information

TP-Link DS-PMA-Combo-C+

SFP XGS-PON & GPON Combo Class C+ Module


Features:

  • Enables multi-gig fiber internet connections up to symmetrical 10 Gbps transmission.*
  • Supports XGS-PON/XG-PON and GPON for flexible deployment and internet access.
  • Supports hot swapping for quick and easy installation and application.
  • Supports the OMCI protocol and DDM (Digital Diagnostics Monitoring) for centralized management and real-time monitoring.

Specifications

Specifications DS-PMA-Combo-C+

Wavelength

XGS-PON:
Tx: 1577 nm
Rx: 1270 nm

XG-PON:
Tx: 1577 nm
Rx: 1270 nm

GPON:
Tx: 1490 nm
Rx: 1310 nm

ConnectorDevice: XGS-PON/XG-PON/GPON SFP+
Fiber: SC/UPC
Fiber TypeSingle Fiber (9/125um)
Data Rate

XGS-PON:
Downstream Data Rate: 9.953 Gbps
Upstream Data Rate:9.953 Gbps

XG-PON:
Downstream Data Rate: 9.953 Gbps
Upstream Data Rate:2.488 Gbps

GPON:
Downstream Data Rate: 2.488 Gbps
Upstream Data Rate:1.244 Gbps*

Power Level

XGS-PON:
Tx Optical Power: +3~+8 dBm
Rx Sensitivity ≤-29 dBm
Rx Saturation Optical Power >-8 dBm

XG-PON:
Tx Optical Power: +3~+8 dBm
Rx Sensitivity ≤-30.5 dBm
Rx Saturation Optical Power >-10 dBm

GPON:
Tx Optical Power: +3~+7 dBm
Rx Sensitivity ≤-32 dBm
Rx Saturation Optical Power >-12 dBm

Extinction Ratio>8.2dB
Rx Optical Power Tolerance>5dBm
Transmission DistanceMax. 20 km
Hot SwapYes
Nominal Voltage3.3 V (< ± 5％)
Diagnostic FunctionMonitors parameters such as voltage, transceiver power, and temperature
Electrical Level

XGS-PON/XG-PON:
Data Interface: CML

GPON:
Data Interface: LVPECL

Control Interface: LVTTL
