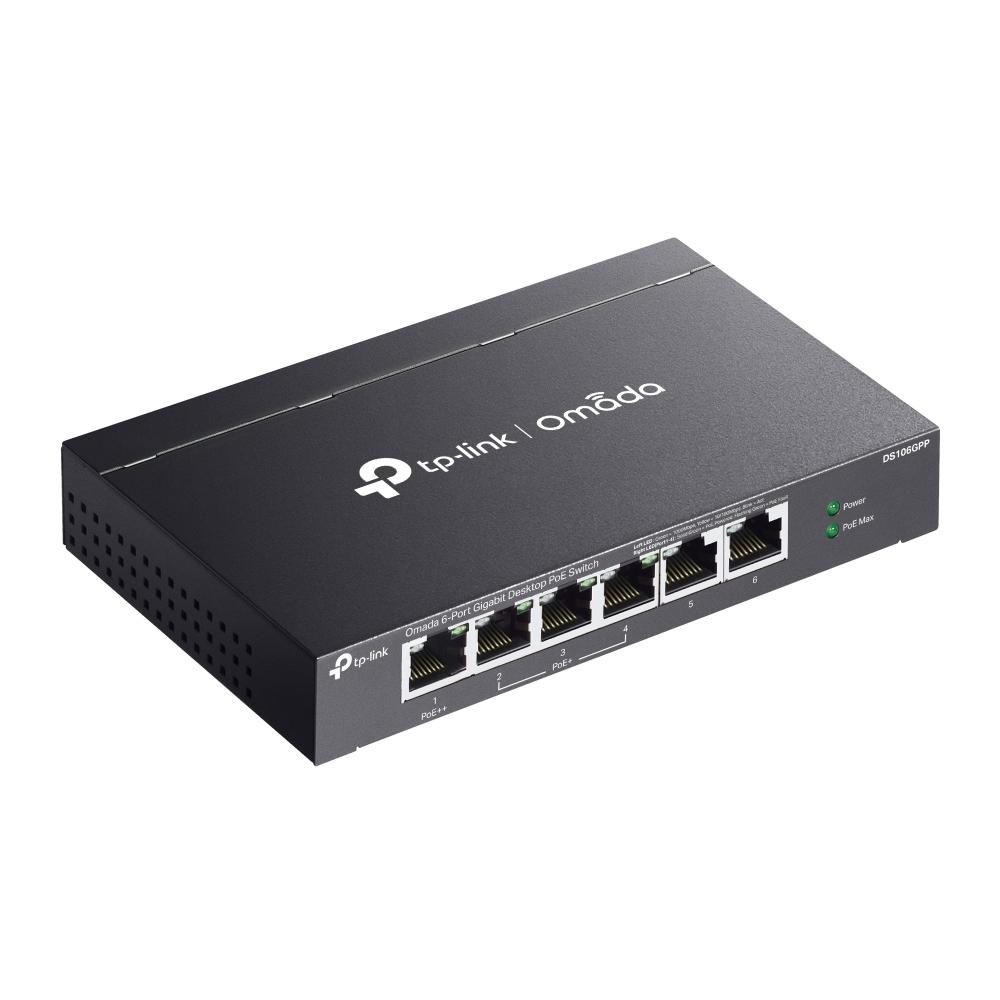

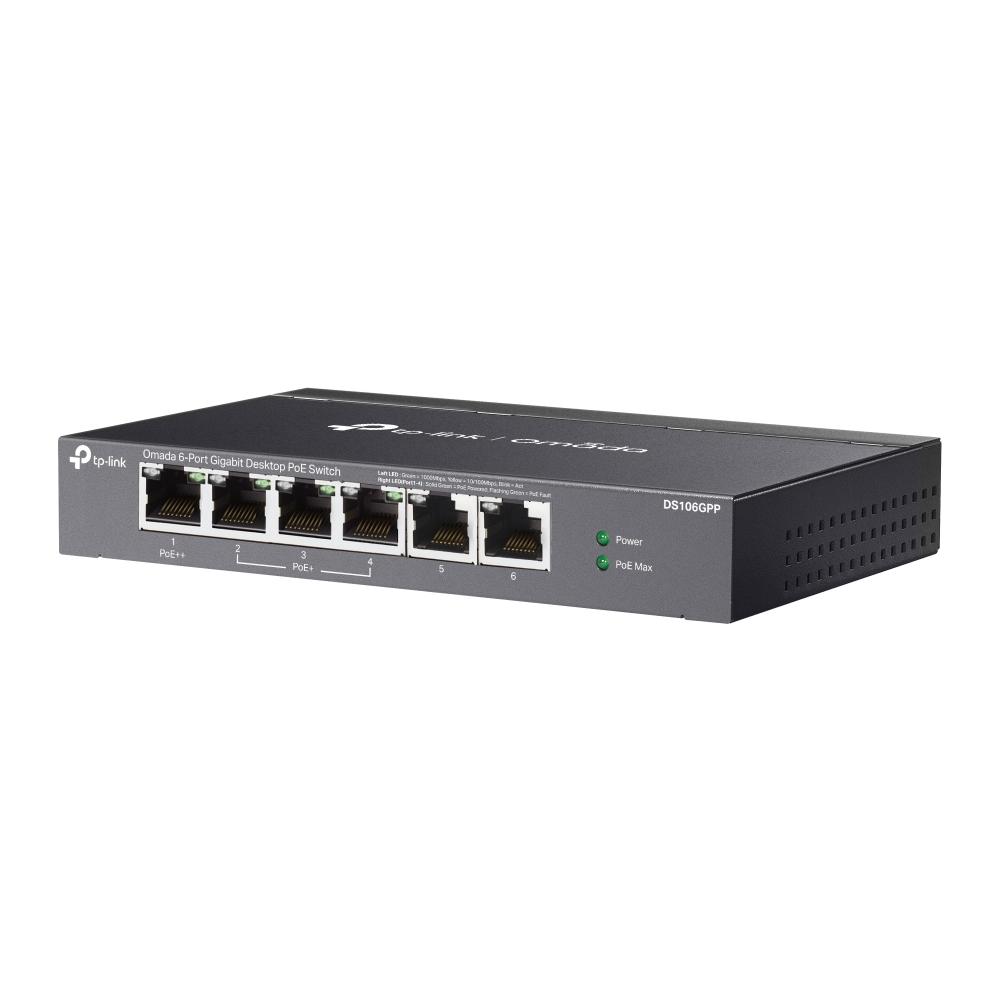

TP-Link Omada 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++

TP-Link DS106GPP

Omada 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++

Power over Ethernet, Flexible Network Deployment

Compliant with the IEEE 802.3af/at/bt PoE standards, the switch supports a total PoE power budget of 64 W with 30 W max per PoE+ port and 60 W max per PoE++ port. When total power consumption exceeds 64 W, the intelligent power management will cut the lower priority ports power to protect devices from damage.

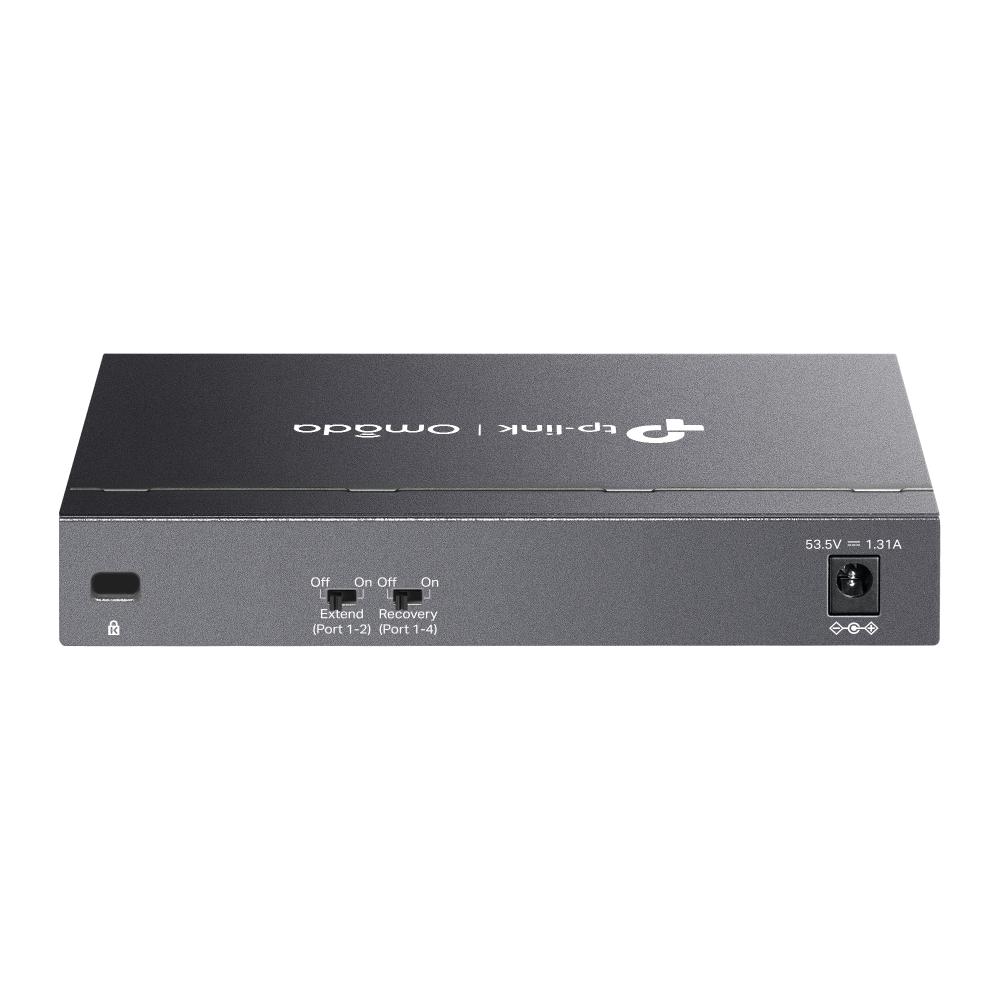

Instantaneous Multi-mode Toggles

Up to 250m Transmissions

With extend mode, the PoE transmission distance reaches up to 250 m** —perfect for IP Camera deployment in large areas.

PoE Auto Recovery

Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive—all without needing manual monitoring and restarts.

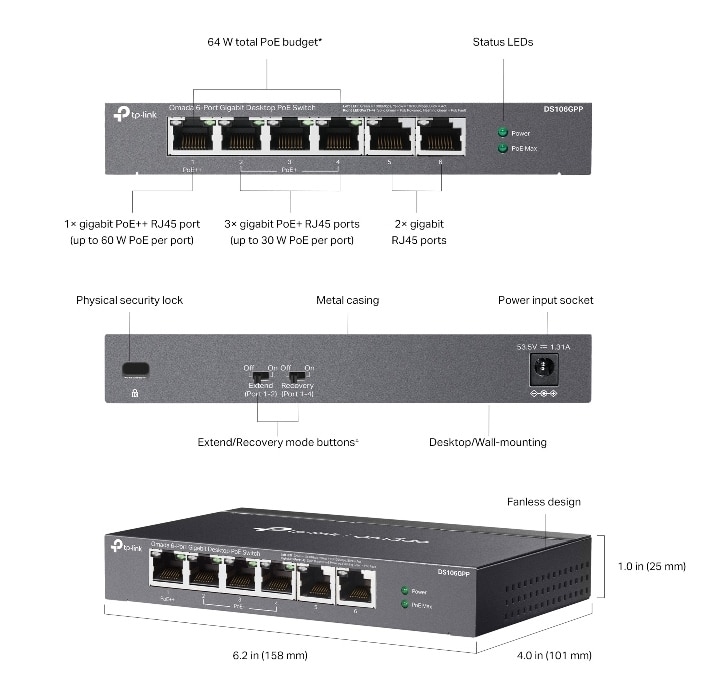

Features:

• 6× 10/100/1000 Mbps RJ45 ports.
• With one PoE++ port and three PoE+ ports, transfers data and power on one single cable.
• Works with IEEE 802.3af/at/bt compliant PDs.
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic.
• Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port.
• Supports PoE Power up to 64 W for all PoE ports.
• Up to 250m (820ft) data and power transmitting range under Extend Mode.
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
• Plug and Play. No configuration or central management required.
