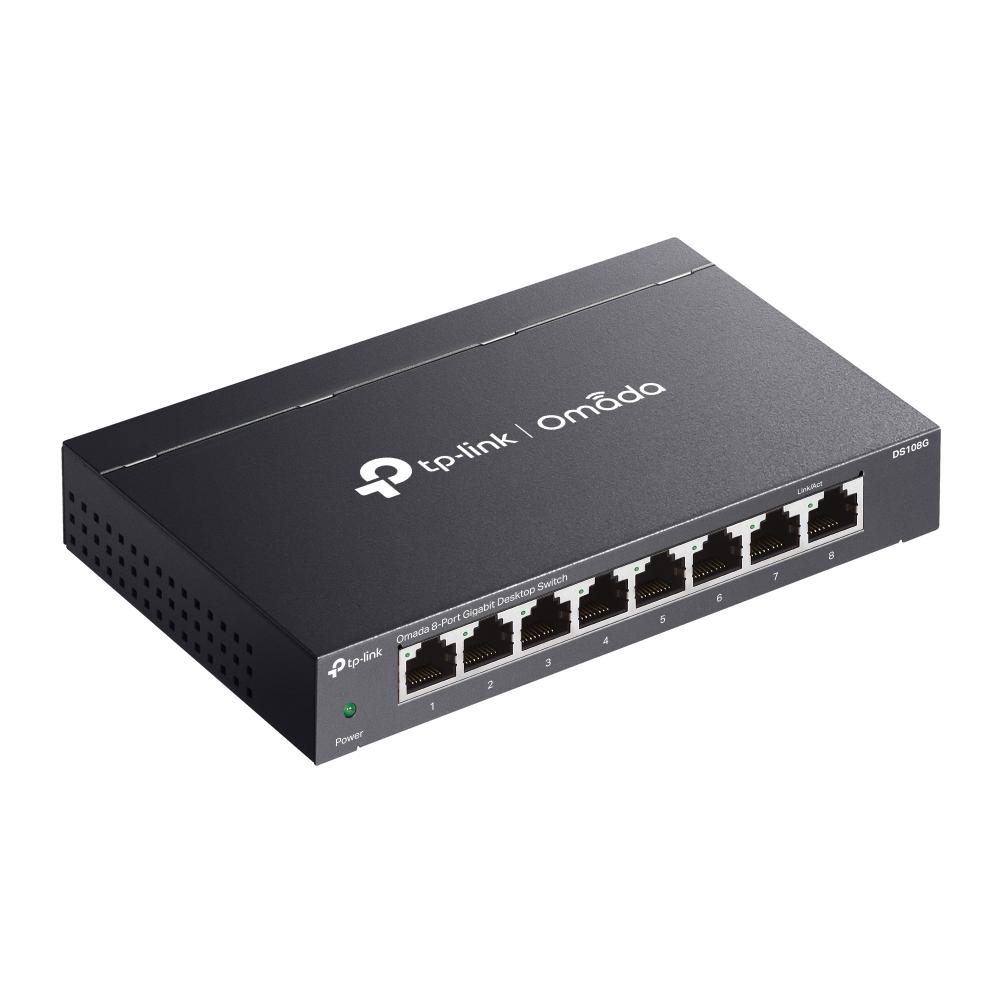

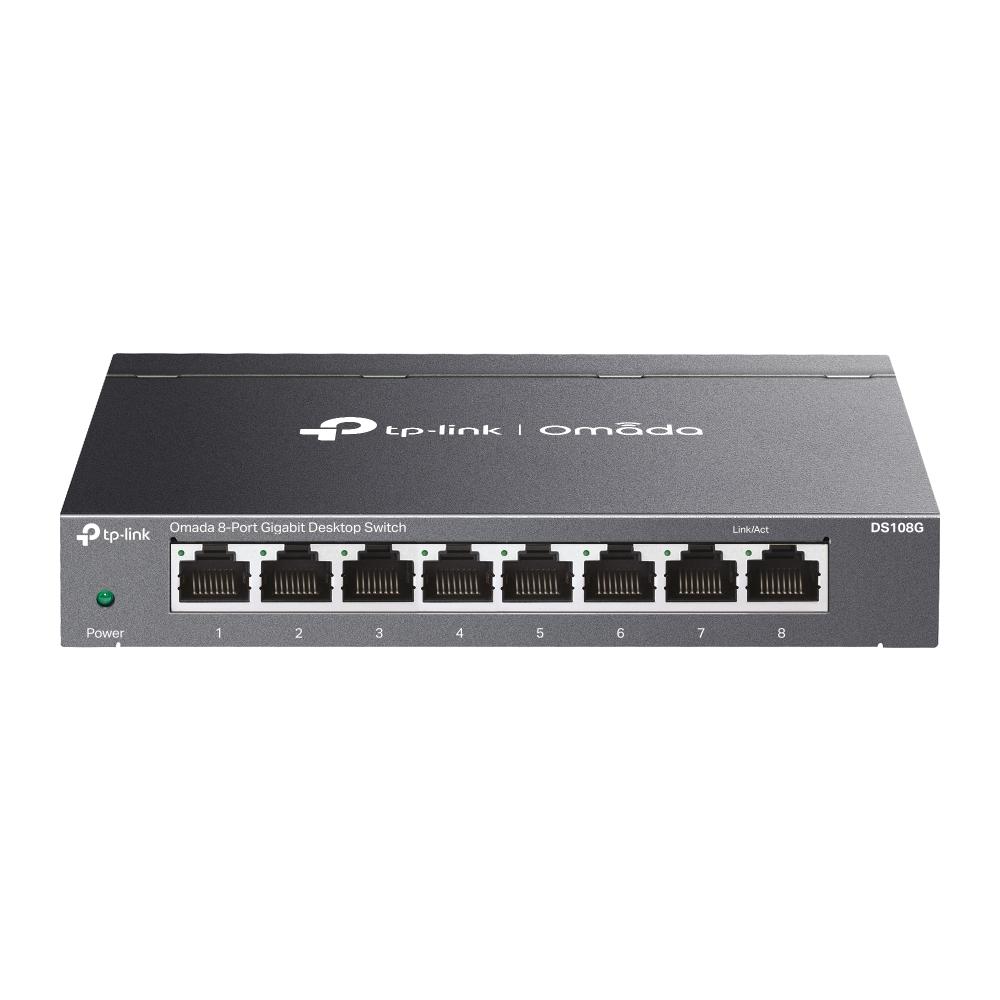

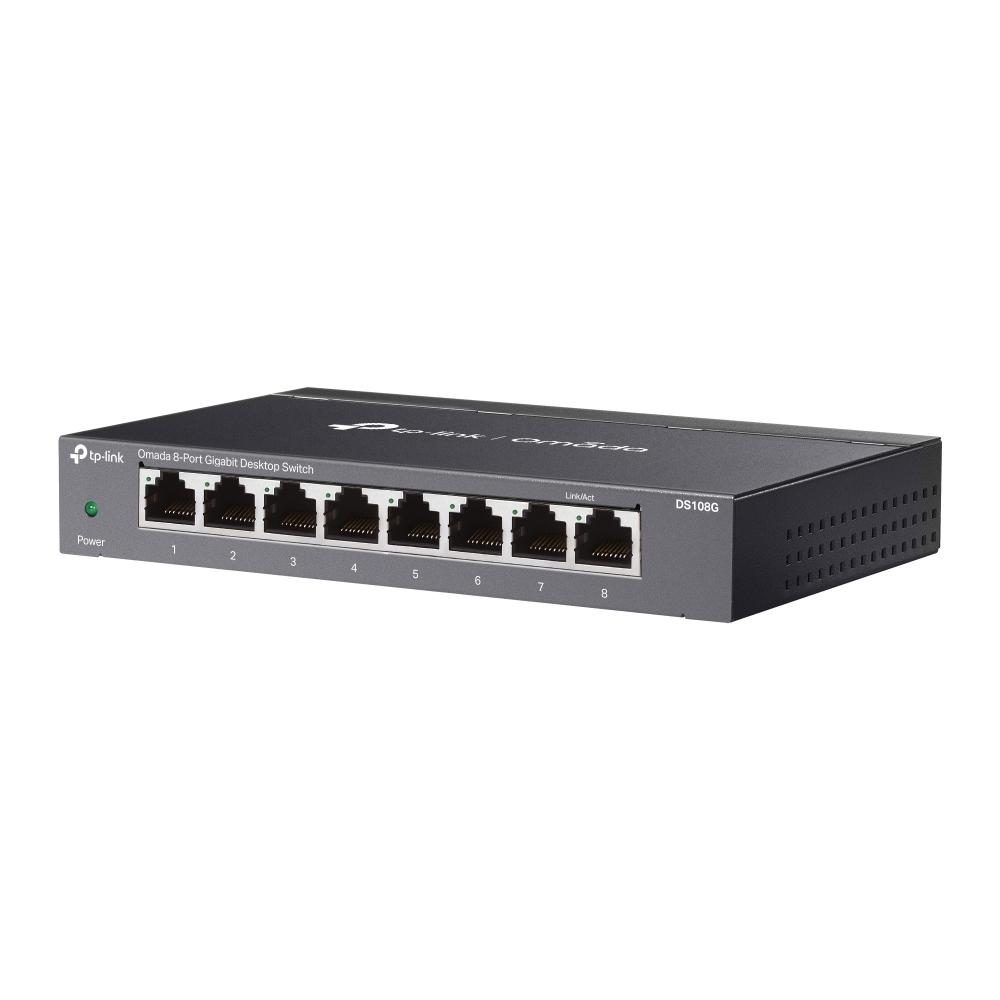

TP-Link Omada 8-Port Gigabit Desktop Switch
- SKU: DS108G
$19.99
Product Information
TP-Link DS108G
Omada 8-Port Gigabit Desktop Switch
Features:
- 8× 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX.
- Green Ethernet technology saves power consumption.
- IEEE 802.3x flow control provides reliable data transfer.

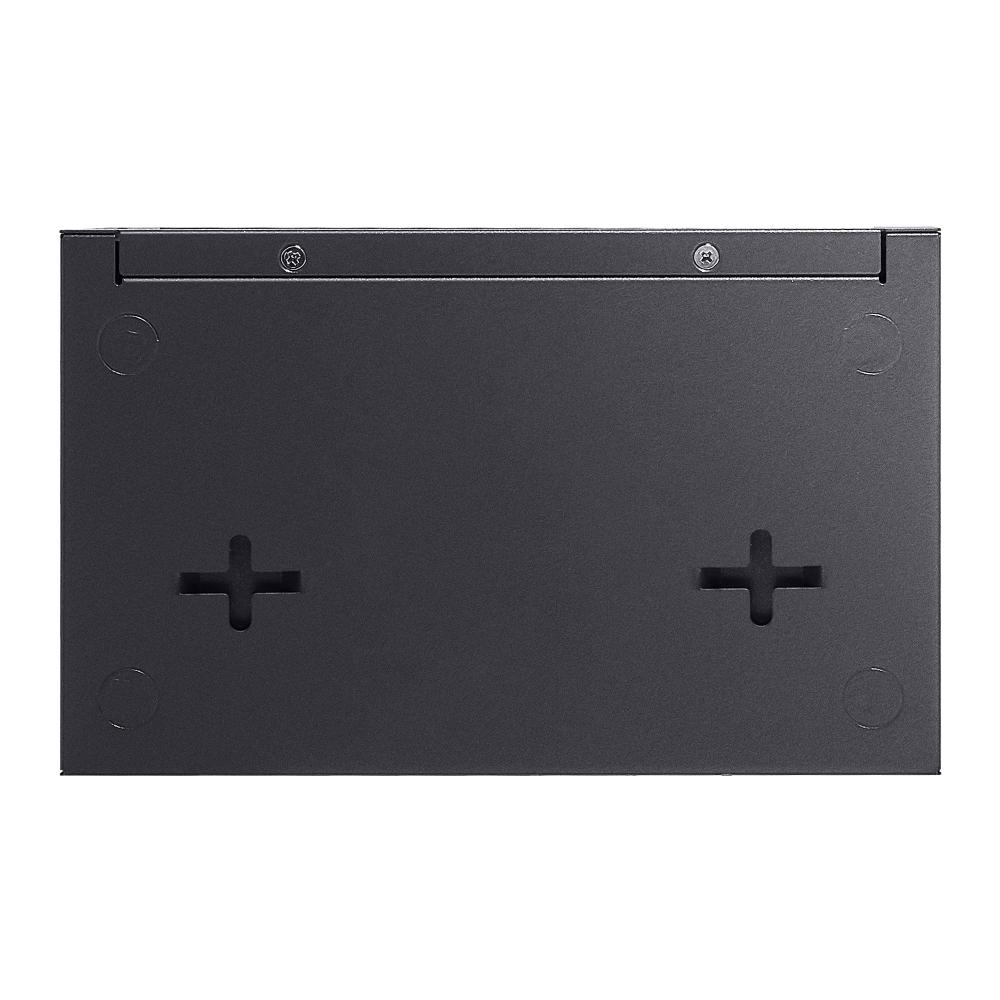

- Steel housing, desktop or wall-mounting design.
- Support 802.1p/DSCP QoS and IGMP Snooping function.
- Plug and play, no configuration needed.
- Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping.
Specifications
Specifications DS108G
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i / 802.3u / 802.3ab/ 802.3x /802.1p |
| Interface | 8× 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 5 V DC / 0.6 A) |
| LED Indicator | • Power • Link/Act indicators per port built into each RJ-45 port |
| Dimensions ( W x D x H ) | 6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm) |
| Max Power Consumption | 3.92 W(220 V /50 Hz) |
| Max Heat Dissipation | 13.37 BTU/h |
| PERFORMANCE | |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4K |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 16 KB |
| SOFTWARE FEATURES | |
| Advanced Features | • Green Ethernet technology • 802.3X Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Loop Prevention |
| Transfer Method | Store and Forward |
| Certification | CE, FCC ,RoHS |
| Environment | • Operating Temperature: 0°C~40°C (32°F~104°F) • Storage Temperature: -40°C~70°C (-40°F~158°F) • Operating Humidity: 10% ~ 90%, non-condensing • Storage Humidity: 5%~90% non-condensing |
